Komatsu WA250PZ-6 Wheel Loader Lift Arm And Bell Crank Parts
Komatsu WA250PZ-6 lift arm and bell crank parts for machine serial 75160 - 75467. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: T0 [Work Equipment] / Lift Arm And Bell Crank.
Checking current purchase options...

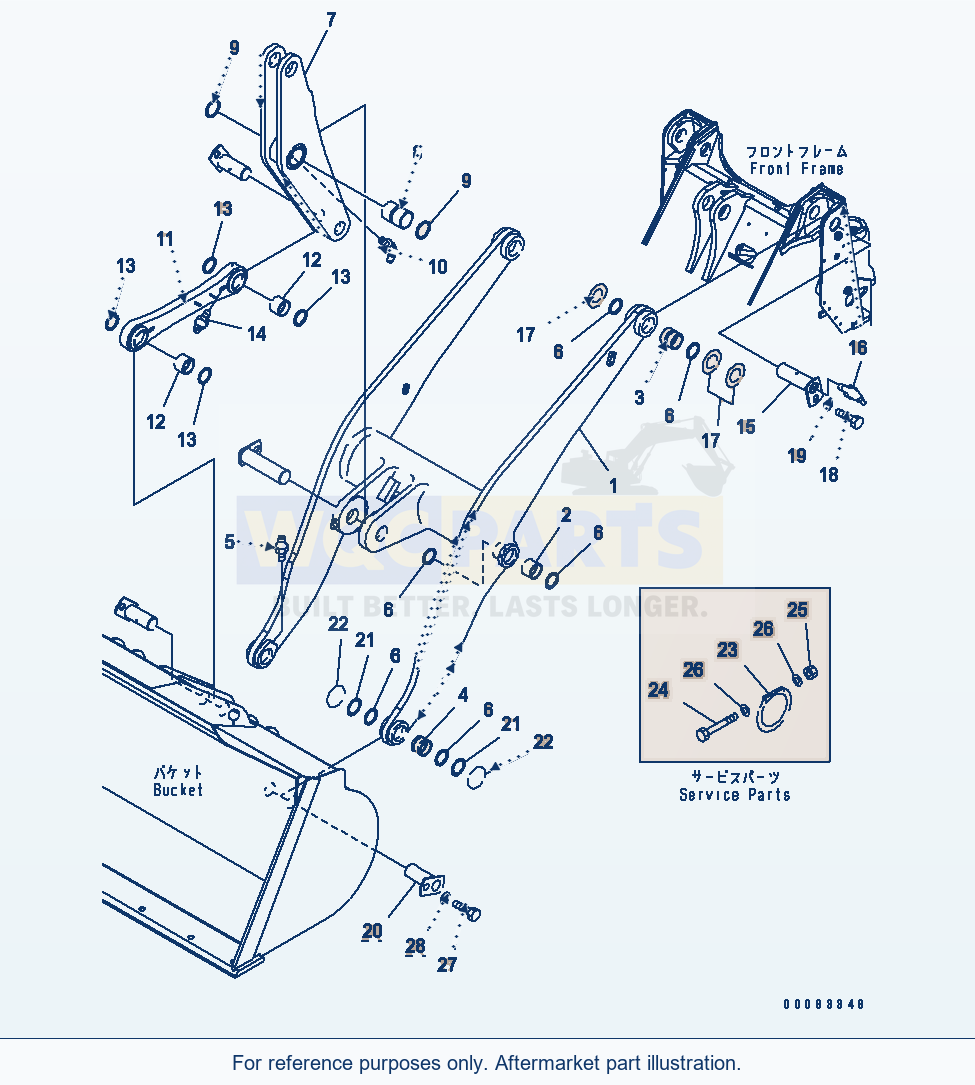

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 35 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | BOOM ASSEMBLYSN: 75204-75467 | 1 | Request quote | |||
| 2 | BOOM ASSEMBLYSN: 75160-75203 | 1 | Request quote | |||
| 1 | BOOMSN: 75204-75467 | 1 | Request quote | |||
| 1 | BOOMSN: 75160-75203 | 1 | Request quote | |||
| 2 | BUSHINGSN: 75160-75467 | 2 | View product ↗ | |||
| 3 | BUSHINGSN: 75160-75467 | 2 | View product ↗ | |||
| 4 | BUSHINGSN: 75160-75467 | 2 | View product ↗ | |||
| 5 | FITTING, GREASESN: 75160-75467 | 2 | View product ↗ | |||
| 6 | SEAL, DUSTSN: 75160-75467 | 12 | View product ↗ | |||
| 10 | BELLCRANK ASSEMBLYSN: 75160-75467 | 1 | Request quote | |||
| 8 | BUSHINGSN: 75160-75467 | 1 | View product ↗ | |||
| 9 | SEALSN: 75160-75467 | 2 | View product ↗ | |||
| 10 | FITTING, GREASESN: 75160-75467 | 1 | View product ↗ | |||
| 15 | LINK ASSEMBLYSN: 75724-UP | 1 | Request quote | |||
| 16 | LINK ASSEMBLYSN: 75204-75723 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 17 | LINK ASSEMBLYSN: 75160-75203 | 1 | Request quote | |||
| 12 | BUSHINGSN: 75160-75467 | 2 | View product ↗ | |||
| 13 | SEAL, DUSTSN: 75160-75467 | 4 | View product ↗ | |||
| 14 | FITTING, GREASESN: 75160-75467 | 2 | View product ↗ | |||
| 15 | PINSN: 75160-75467 | 2 | View product ↗ | |||
| 16 | FITTING, GREASESN: 75160-75467 | 2 | View product ↗ | |||
| 17 | SHIM, 1.5MMSN: 75160-75467 | 2 | Request quote | |||
| 17 | SHIM, 3.0MMSN: 75160-75467 | - | Request quote | |||
| 17 | SHIM, 1.0MMSN: 75160-75467 | - | Request quote | |||
| 18 | BOLTSN: 75160-75467 | 2 | View product ↗ | |||
| 19 | WASHERSN: 75160-75467 | 2 | View product ↗ | |||
| 20 | PINSN: 75160-75467 | 2 | Request quote | |||
| 21 | SHIM, 1.5MMSN: 75160-75467 | 5 | Request quote | |||
| 22 | O-RINGSN: 75160-75467 | 4 | Request quote | |||
| 23 | O-RING, (SERVICE PARTS)SN: 75160-75467 | 4 | View product ↗ | |||
| 24 | BOLT, (SERVICE PARTS)SN: 75160-75467 | 4 | Request quote | |||
| 25 | NUT, (SERVICE PARTS)SN: 75160-75467 | 4 | View product ↗ | |||
| 26 | WASHER, (SERVICE PARTS)SN: 75160-75467 | 8 | View product ↗ | |||
| 27 | BOLTSN: 75160-75467 | 2 | View product ↗ | |||
| 28 | WASHERSN: 75160-75467 | 2 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 7 | Description: BELLCRANK | QTY: 1 | OPTIONS: SN: 75160-75467
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 11 | Description: LINK | QTY: 1 | OPTIONS: SN: 75724-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 11 | Description: LINK | QTY: 1 | OPTIONS: SN: 75204-75723
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 11 | Description: LINK | QTY: 1 | OPTIONS: SN: 75160-75203
Using Komatsu WA250PZ-6 Wheel Loader Lift Arm And Bell Crank Parts
Use the Komatsu WA250PZ-6 Wheel Loader Lift Arm And Bell Crank Parts listing to identify aftermarket replacement parts within the t0 [work equipment] section. This wheel loader application is listed for machine serial 75160 - 75467; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 35 listed part occurrences, including boom assembly (reference 418-T81-4201), boom assembly (reference 418-T81-4200) and boom (reference 418-T81-4211). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For work-equipment parts, check the attachment configuration and any boom, arm, bucket or lift arrangement named in the assembly. Keep capacity, length and left/right distinctions wherever the source provides them.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
