Komatsu WA250PZ-6 Wheel Loader Cold Area Kit Serial H00051 - UP Parts
Komatsu WA250PZ-6 cold area kit serial h00051 - up parts for machine serial H00051 - UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: W0 Miscellaneous / Cold Area Kit.
Checking current purchase options...

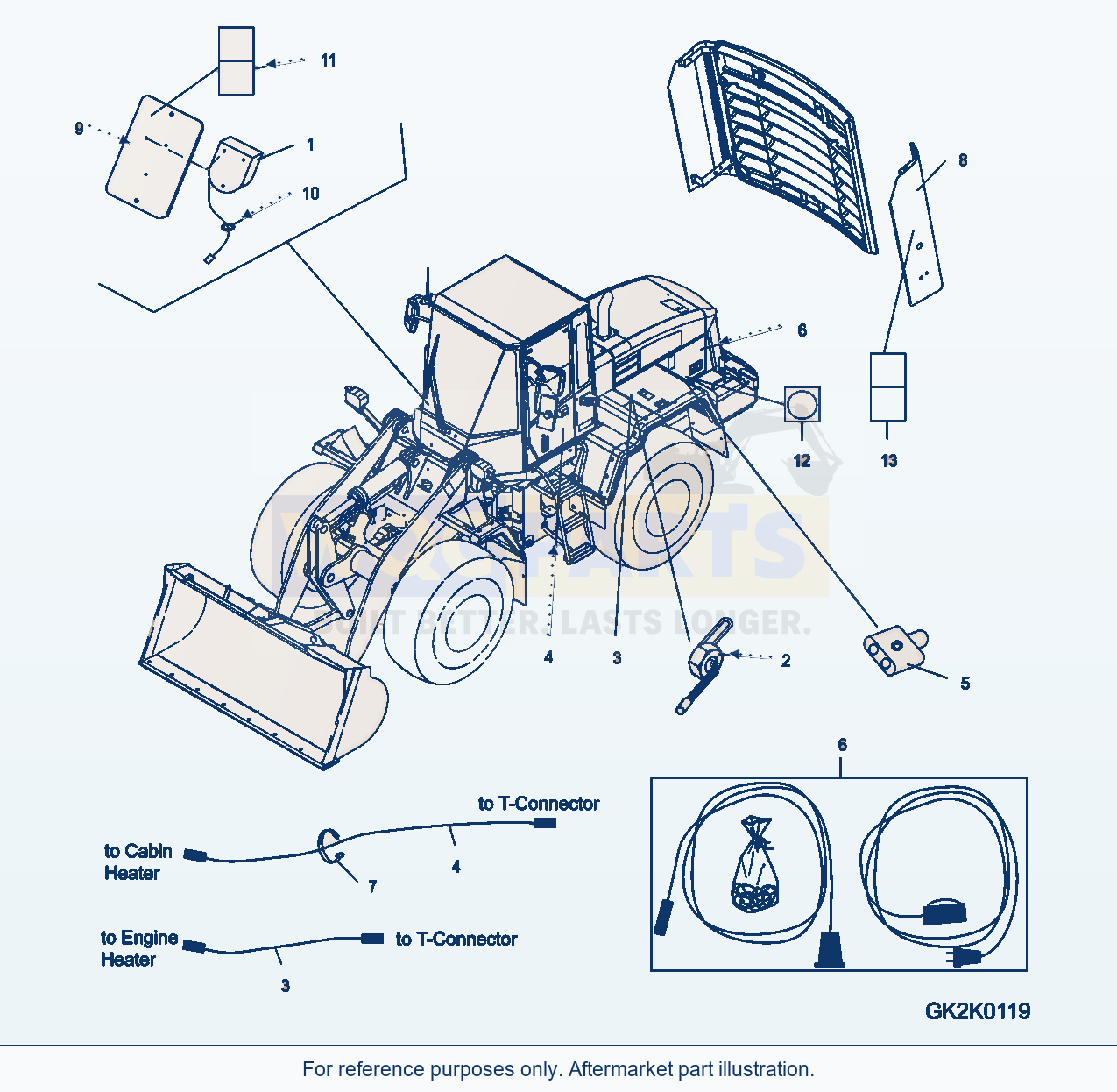

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 11 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | HEATER CABINSN: H00051-UP | 1 | Request quote | |||
| 2 | HEATER ENGINESN: H00051-UP | 1 | Request quote | |||
| 3 | EXTENSION LEAD 1.0MSN: H00051-UP | 1 | Request quote | |||
| 4 | EXTENSION LEAD 4.0MSN: H00051-UP | 1 | Request quote | |||
| 5 | T-CONNECTORSN: H00051-UP | 1 | Request quote | |||
| 6 | MAIN CONNECTORSN: H00051-UP | 1 | Request quote | |||
| 7 | BANDSN: H00051-UP | 20 | Request quote | |||
| 10 | PROTECTIVE STRIPSN: H00051-UP | 1 | Request quote | |||
| 11 | DECAL HEATER CABINESN: H00051-UP | 2 | Request quote | |||
| 12 | DECAL, GROUNDSN: H00051-UP | 1 | Request quote | |||
| 13 | PLATESN: H00051-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 8 | Description: GRILLE | QTY: 1 | OPTIONS: SN: H00051-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 9 | Description: COVER | QTY: 1 | OPTIONS: SN: H00051-UP
Using Komatsu WA250PZ-6 Wheel Loader Cold Area Kit Serial H00051 - UP Parts
Use the Komatsu WA250PZ-6 Wheel Loader Cold Area Kit Serial H00051 - UP Parts listing to identify aftermarket replacement parts within the w0 miscellaneous section. This wheel loader application is listed for machine serial H00051 - UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 11 listed part occurrences, including heater cabin (reference 421-09-H4250), heater engine (reference 423-09-H3880) and extension lead 1.0m (reference 421-09-H4280). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
