Komatsu WA270-5 Wheel Loader Floor Decal Parts
Komatsu WA270-5 floor decal parts for machine serial 70001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Operator'S Compartment And Control System / Floor Decal.
Checking current purchase options...

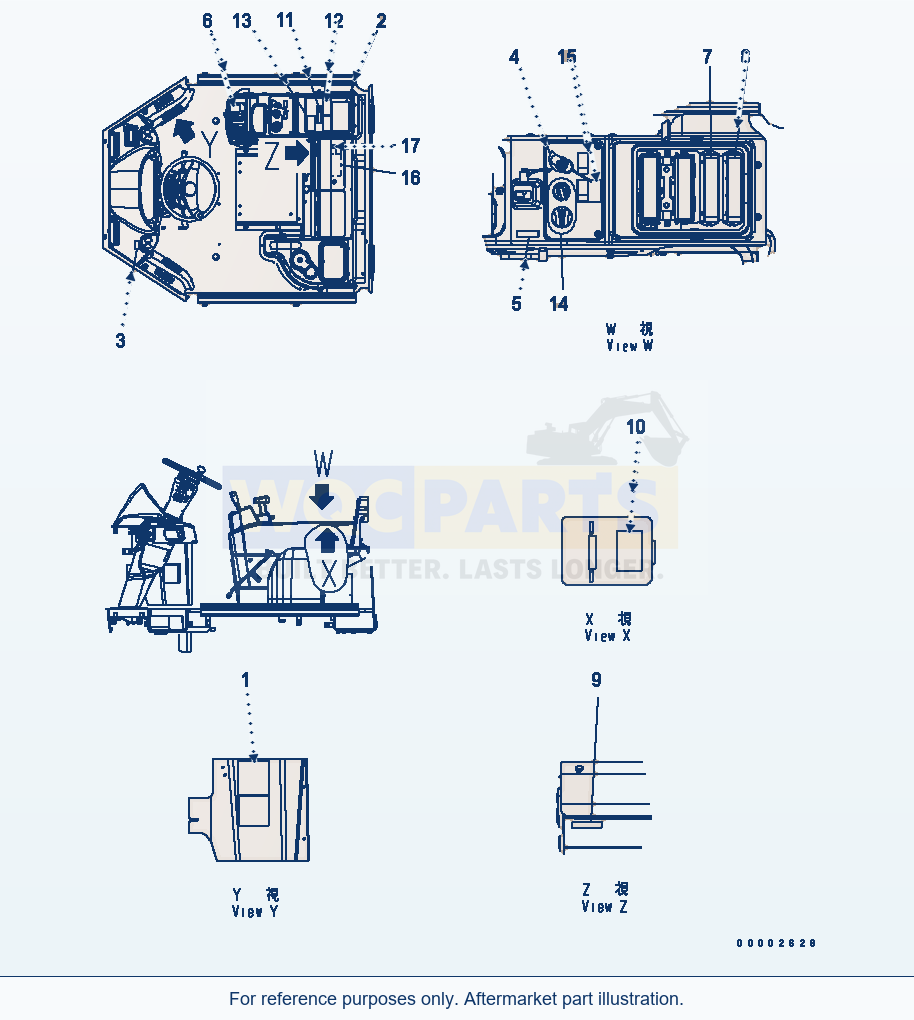

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 6 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PLATE,MACHINE SPEC.SN: 70001-UP | 1 | Request quote | |||
| 2 | PLATESN: 70001-UP | 1 | Request quote | |||
| 14 | PLATE,HST SPEED CONTROLSN: 70001-UP | 1 | Request quote | |||
| 15 | PLATE,TRACTION CONTROLSN: 70001-UP | 1 | Request quote | |||
| 16 | PLATE,RELAY BOXSN: 70001-UP | 1 | Request quote | |||
| 17 | PLATESN: 70001-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 2 | Description: PLATE, CAUTION,STARTING | QTY: 1 | OPTIONS: SN: 70001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 3 | Description: PLATE, MARK | QTY: 1 | OPTIONS: SN: 70001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 4 | Description: PLATE, MARK,MAIN SWITCH | QTY: 1 | OPTIONS: SN: 70001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 5 | Description: PLATE, MARK,LEVER LOCK | QTY: 1 | OPTIONS: SN: 70001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 6 | Description: PLATE, MARK,SHIFT PATTERN | QTY: 1 | OPTIONS: SN: 70001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 7 | Description: PLATE, MARK,FUSE | QTY: 1 | OPTIONS: SN: 70001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 8 | Description: PLATE, MARK,FUSE | QTY: 1 | OPTIONS: SN: 70001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 9 | Description: PLATE, MARK,AIR CONDITIONER FILTER | QTY: 1 | OPTIONS: SN: 70001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 10 | Description: PLATE, MARK,RELAY | QTY: 1 | OPTIONS: SN: 70001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 11 | Description: PLATE, SAFETY,ELECTRIC SHOCK | QTY: 1 | OPTIONS: SN: 70001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 12 | Description: PLATE, SAFETY | QTY: 1 | OPTIONS: SN: 70001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 13 | Description: PLATE, SAFETY,READ MANUAL | QTY: 1 | OPTIONS: SN: 70001-UP
Using Komatsu WA270-5 Wheel Loader Floor Decal Parts
Use the Komatsu WA270-5 Wheel Loader Floor Decal Parts listing to identify aftermarket replacement parts within the operator's compartment and control system section. This wheel loader application is listed for machine serial 70001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 6 listed part occurrences, including plate,machine spec. (reference 418-93-21321), plate (reference 418-93-22123) and plate,hst speed control (reference 418-93-22311). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For operator-compartment and control parts, compare the cab arrangement and equipment options identified on the assembly page. Retain any handedness and connection details when selecting a part or requesting assistance.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
