Komatsu WA270-7 Heat Shield, For 90Amp. Alternator (#26601326-) Parts
Komatsu WA270-7 heat shield, for 90amp. alternator (#26601326-) parts for machine serial 80001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D107E-2G S/N 26601326-UP (For WA270-7) / Engine Cylinder Head And Its Related Parts / Heat Shield, For 90Amp. Alternator / Heat Shield, For 90Amp. Alternator (#26601326-).
Checking current purchase options...

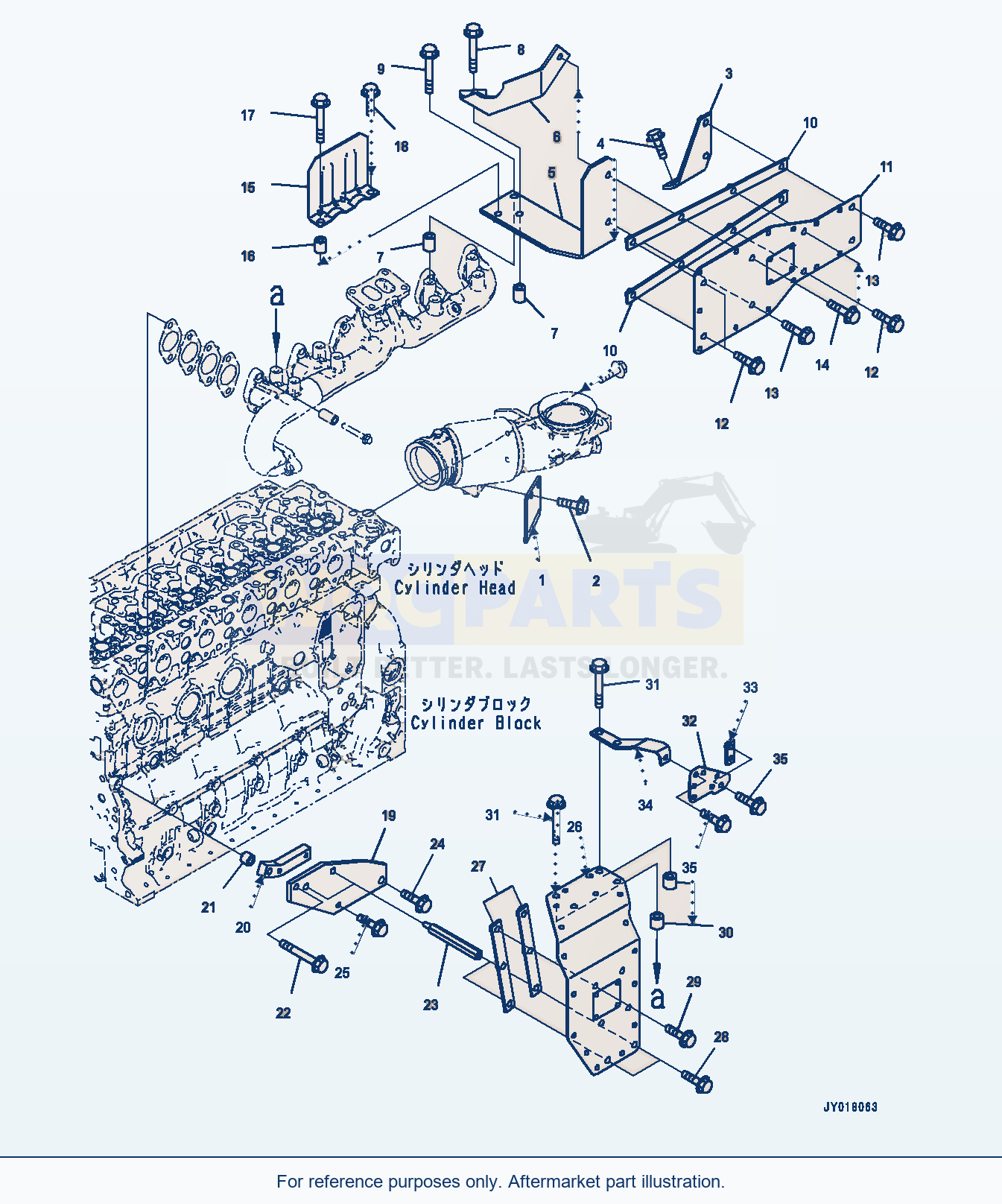

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 37 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | COVERSN: 26601326-UP | 1 | Request quote | |||
| 2 | BOLTSN: 26601326-UP | 2 | Request quote | |||
| 3 | BRACKETSN: 26601326-UP | 1 | Request quote | |||
| 4 | BOLTSN: 26601326-UP | 2 | View product ↗ | |||
| 5 | PLATESN: 26601326-UP | 1 | Request quote | |||
| 6 | BRACKETSN: 26601326-UP | 1 | Request quote | |||
| 7 | SPACERSN: 26601326-UP | 2 | Request quote | |||
| 8 | BOLTSN: 26601326-UP | 1 | Request quote | |||
| 9 | BOLTSN: 26601326-UP | 1 | Request quote | |||
| 10 | BRACKETSN: 26601326-UP | 2 | Request quote | |||
| 11 | COVERSN: 26601326-UP | 1 | Request quote | |||
| 12 | BOLTSN: 26601326-UP | 4 | View product ↗ | |||
| 13 | BOLTSN: 26601326-UP | 3 | View product ↗ | |||
| 14 | BOLTSN: 26601326-UP | 1 | View product ↗ | |||
| 15 | BRACKETSN: 26601326-UP | 1 | Request quote | |||
| 16 | BOSSSN: 26601326-UP | 1 | Request quote | |||
| 17 | BOLTSN: 26601326-UP | 1 | Request quote | |||
| 18 | BOLTSN: 26601326-UP | 1 | View product ↗ | |||
| 19 | PLATESN: 26601326-UP | 1 | Request quote | |||
| 20 | PLATESN: 26601326-UP | 1 | Request quote | |||
| 21 | COLLARSN: 26601326-UP | 1 | View product ↗ | |||
| 22 | BOLTSN: 26601326-UP | 1 | Request quote | |||
| 23 | STUDSN: 26601326-UP | 2 | Request quote | |||
| 24 | BOLTSN: 26601326-UP | 1 | View product ↗ | |||
| 25 | BOLTSN: 26601326-UP | 1 | View product ↗ | |||
| 26 | COVERSN: 26601326-UP | 1 | Request quote | |||
| 27 | BRACKETSN: 26601326-UP | 2 | Request quote | |||
| 28 | BOLTSN: 26601326-UP | 2 | View product ↗ | |||
| 29 | BOLTSN: 26601326-UP | 4 | View product ↗ | |||
| 30 | SPACERSN: 26601326-UP | 4 | Request quote | |||
| 31 | BOLTSN: 26601326-UP | 4 | Request quote | |||
| 32 | COVERSN: 26601326-UP | 1 | Request quote | |||
| 33 | BRACKETSN: 26601326-UP | 1 | Request quote | |||
| 33 | NUTSN: 26601326-UP | 1 | View product ↗ | |||
| 34 | BRACKETSN: 26601326-UP | 1 | Request quote | |||
| 35 | NUTSN: 26601326-UP | 1 | View product ↗ | |||
| 35 | BOLTSN: 26601326-UP | 3 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA270-7 Heat Shield, For 90Amp. Alternator (#26601326-) Parts
Use the Komatsu WA270-7 Heat Shield, For 90Amp. Alternator (#26601326-) Parts listing to identify aftermarket replacement parts within the engine cylinder head and its related parts section. This wheel loader application is listed for machine serial 80001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 37 listed part occurrences, including cover (reference 6755-11-5390), bracket (reference 6755-11-5350) and plate (reference 6755-11-5340). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D107E-2G (engine serial 26601326-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
For cylinder-head and related engine parts, follow the applicability attached to the selected assembly. Gaskets, fasteners and other components must be checked by their listed references rather than assumed to interchange between engine versions.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
