Komatsu WA270-8 Engine Oil Filler (#26644419-) (Aob10-001001) Parts
Komatsu WA270-8 engine oil filler (#26644419-) (aob10-001001) parts for machine serial 83001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D107E-3H S/N 26644419-UP (For WA270-8) / Engine Cylinder Block And Its Related Parts / Engine Oil Filler / Engine Oil Filler (#26644419-) (Aob10-001001).
Checking current purchase options...

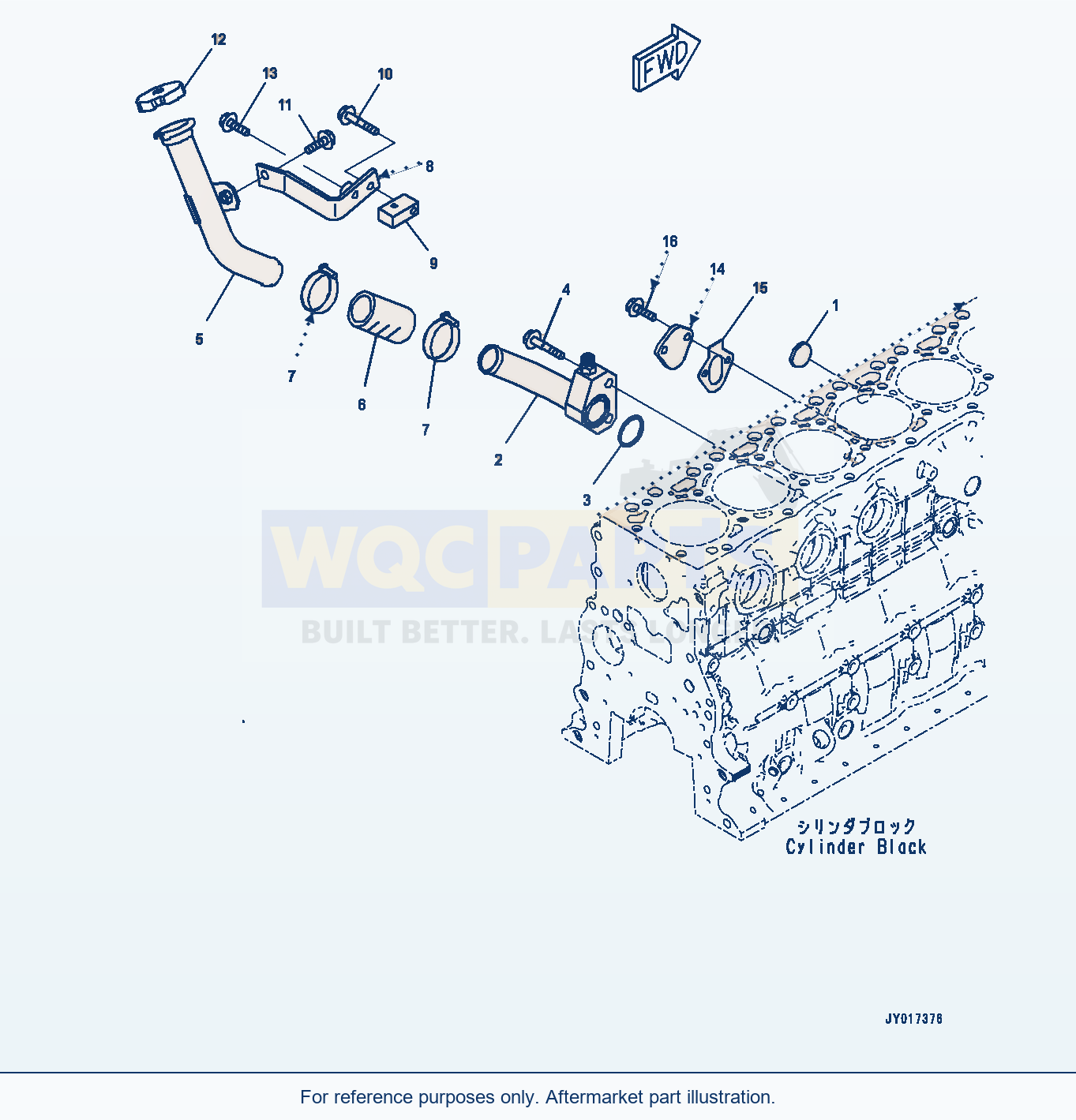

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 17 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PLUGSN: 26644419-UP | 1 | Request quote | |||
| 2 | CONNECTION, OIL DRAINSN: 26644419-UP | 1 | Request quote | |||
| 3 | SEAL RINGSN: 26644419-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 4 | BOLTSN: 26644419-UP | 2 | Request quote | |||
| 5 | FILLERSN: 26644419-UP | 1 | Request quote | |||
| 6 | HOSESN: 26644419-UP | 1 | View product ↗ | |||
| 7 | CLAMPSN: 26644419-UP | 2 | Request quote | |||
| 8 | BRACESN: 26644419-UP | 1 | Request quote | |||
| 9 | PLATESN: 26644419-UP | 1 | Request quote | |||
| 10 | BOLTSN: 26644419-UP | 1 | Request quote | |||
| 11 | BOLTSN: 26644419-UP | 1 | Request quote | |||
| 12 | CAP ASSEMBLYSN: 26644419-UP | 1 | View product ↗ | |||
| 12 | GASKETSN: 26644419-UP, KIT-FLAG: S | 1 | Request quote | |||
| 13 | SCREWSN: 26644419-UP | 1 | Request quote | |||
| 14 | PLATESN: 26644419-UP | 1 | Request quote | |||
| 15 | GASKETSN: 26644419-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 16 | BOLTSN: 26644419-UP | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA270-8 Engine Oil Filler (#26644419-) (Aob10-001001) Parts
Use the Komatsu WA270-8 Engine Oil Filler (#26644419-) (Aob10-001001) Parts listing to identify aftermarket replacement parts within the engine cylinder block and its related parts section. This wheel loader application is listed for machine serial 83001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 17 listed part occurrences, including plug (reference 6742-01-1420), connection, oil drain (reference 6755-51-9860) and filler (reference 6754-21-7440). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D107E-3H (engine serial 26644419-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
For cylinder-block and related engine components, compare the listed engine serial break and every row-specific option. Use the individual part reference rather than the diagram appearance to distinguish revisions.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
