Drive Shaft, Differential And Wheels

Komatsu WA320-1 Wheel Loader Rear Differential Serial 10001-UP Parts

Komatsu WA320-1 rear differential serial 10001-up parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: Drive Shaft, Differential And Wheels / Rear Differential.

WA320-1Machine serial 10001-UP59 part occurrences

Checking current purchase options...

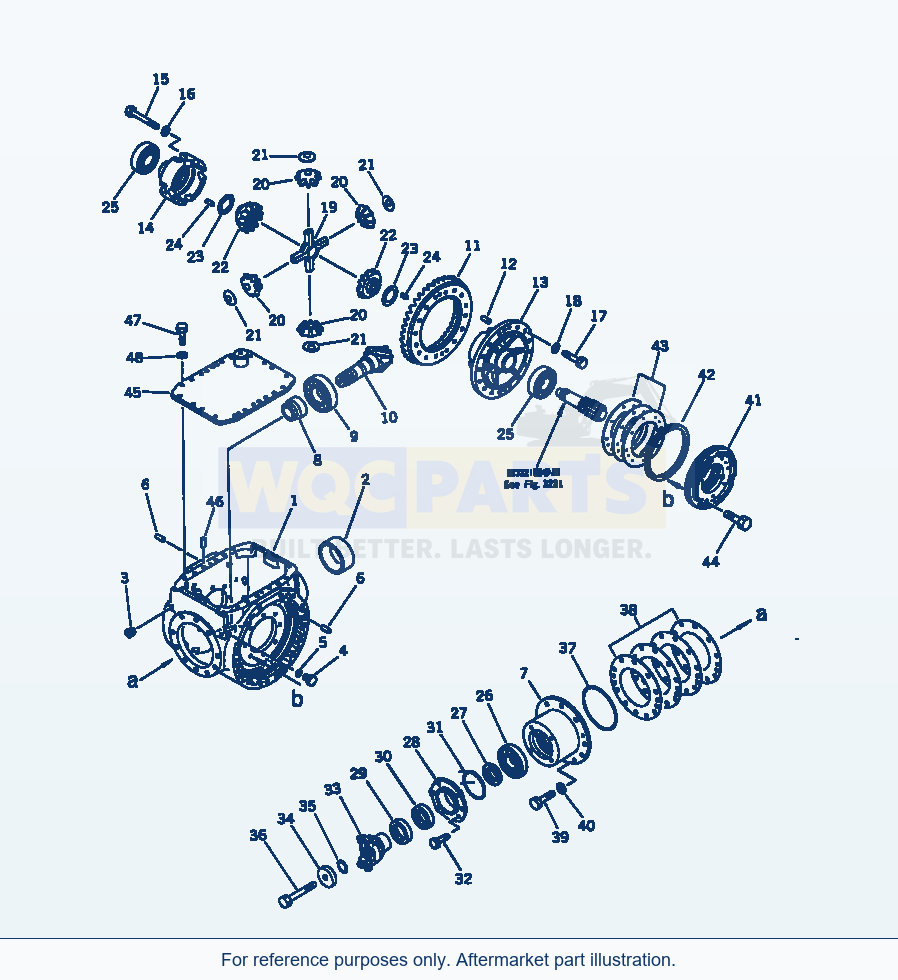

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 59 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
0	AXLE ASS'YSN: 20001-UP	1	Request quote
1	AXLE ASS'YSN: 10001-19999	1	Request quote
3	DIFFERENTIAL ASS'YSN: 20001-UP	1	Request quote
4	DIFFERENTIAL ASS'YSN: 10001-19999 \| The part specified in the DESCRIPTION column can be used instead of this part if it is used as a set.	1	Request quote
1	HOUSINGSN: 10001-UP	1	Request quote
2	SLEEVESN: 10001-UP	1	Request quote
3	PLUGSN: 10001-UP	2	Request quote
4	PLUGSN: 10001-UP	3	View product ↗
5	O-RINGSN: 10001-UP	4	View product ↗
6	PIN,DOWELSN: 10001-UP	4	View product ↗
7	CAGESN: 20001-UP	1	Request quote
7	CAGESN: 10001-19999	1	Request quote
8	SPACERSN: 10001-UP	1	Request quote
9	BEARINGSN: 10001-UP	1	View product ↗
17	GEAR ASS'YSN: 10563-UP	1	Request quote
18	GEAR ASS'YSN: 10001-10562	1	Request quote
12	PIN,DOWELSN: 10001-10562	2	View product ↗
23	CASE ASS'YSN: 10001-UP	1	Request quote
15	BOLTSN: 10001-UP	12	Request quote
16	WASHERSN: 10001-UP	12	View product ↗
17	BOLTSN: 10001-UP	16	Request quote
18	WASHERSN: 10001-UP	16	View product ↗
19	SHAFTSN: 10001-UP	1	Request quote
20	PINIONSN: 10001-UP	4	Request quote
21	WASHERSN: 10001-UP	4	Request quote
22	GEARSN: 10001-UP	2	Request quote
23	WASHERSN: 10001-UP	2	Request quote
24	PINSN: 10001-UP	4	View product ↗
25	BEARINGSN: 10001-UP	2	Request quote
26	BEARINGSN: 10001-UP	1	View product ↗
27	SPACERSN: 10001-UP	1	Request quote
28	RETAINERSN: 10001-UP	1	Request quote
29	SEALSN: 10001-UP	1	View product ↗
30	SEALSN: 10001-UP	1	View product ↗
31	O-RINGSN: 10001-UP	1	View product ↗
32	BOLTSN: 10001-UP	4	Request quote
33	COUPLINGSN: 10001-UP	1	Request quote
34	HOLDERSN: 10001-UP	1	Request quote
35	O-RINGSN: 10001-UP	1	View product ↗
36	BOLTSN: 10001-UP	1	Request quote
37	O-RINGSN: 10001-UP	1	View product ↗
38	SHIM, 0.05MMSN: 10001-UP	2	Request quote
38	SHIM, 0.2MMSN: 10001-UP	2	Request quote
38	SHIM, 0.3MMSN: 10001-UP	2	Request quote
38	SHIM, 0.8MMSN: 10001-UP	1	Request quote
39	BOLTSN: 10001-UP	10	View product ↗
40	WASHERSN: 10001-UP	10	View product ↗
41	CARRIERSN: 20001-UP	2	Request quote
41	CARRIERSN: 10001-19999 \| The part specified in the DESCRIPTION column can be used instead of this part if it is used as a set.	2	Request quote
42	RINGSN: 10001-UP	2	View product ↗
43	SHIM, 0.05MMSN: 10001-UP	4	Request quote
43	SHIM, 0.2MMSN: 10001-UP	4	Request quote
43	SHIM, 0.3MMSN: 10001-UP	2	Request quote
43	SHIM, 0.8MMSN: 10001-UP	2	Request quote
44	BOLTSN: 10001-UP	16	Request quote
45	COVERSN: 10001-UP	1	Request quote
46	PIN,DOWELSN: 10001-UP	2	View product ↗
47	BOLTSN: 10001-UP	18	Request quote
48	WASHERSN: 10001-UP	18	View product ↗

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.

Assembly notes

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.3201 TO 3221.

(419-23-11025,419-33-11263(2),

419-33-11252(2))

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 10 | Description: PINION,GEAR | QTY: 1 | OPTIONS: SN: 10001-UP

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 11 | Description: GEAR | QTY: 1 | OPTIONS: SN: 10563-UP

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 11 | Description: GEAR | QTY: 1 | OPTIONS: SN: 10001-10562

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 13 | Description: CASE | QTY: 1 | OPTIONS: SN: 10001-UP

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 14 | Description: CASE | QTY: 1 | OPTIONS: SN: 10001-UP

(419-22-11162,419-33-11252,

419-33-11263)

Catalog sitemap

Using Komatsu WA320-1 Wheel Loader Rear Differential Serial 10001-UP Parts

Use the Komatsu WA320-1 Wheel Loader Rear Differential Serial 10001-UP Parts listing to identify aftermarket replacement parts within the drive shaft, differential and wheels section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.

The parts table contains 59 listed part occurrences, including axle ass'y (reference 419-23-10006), axle ass'y (reference 419-23-10004) and differential ass'y (reference 419-23-11025). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.

For axle, driveline and brake-related parts, follow the assembly location and machine serial applicability. Keep front/rear and left/right distinctions, along with any equipment options recorded in the parts list.

Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
