Komatsu WA320-1 Front Cover And Gear(#94068-106665) Parts
Komatsu WA320-1 front cover and gear(#94068-106665) parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: S6D105-1AJ S/N 86535-UP / Engine Cylinder Block / Front Cover And Gear(#94068-106665).
Checking current purchase options...

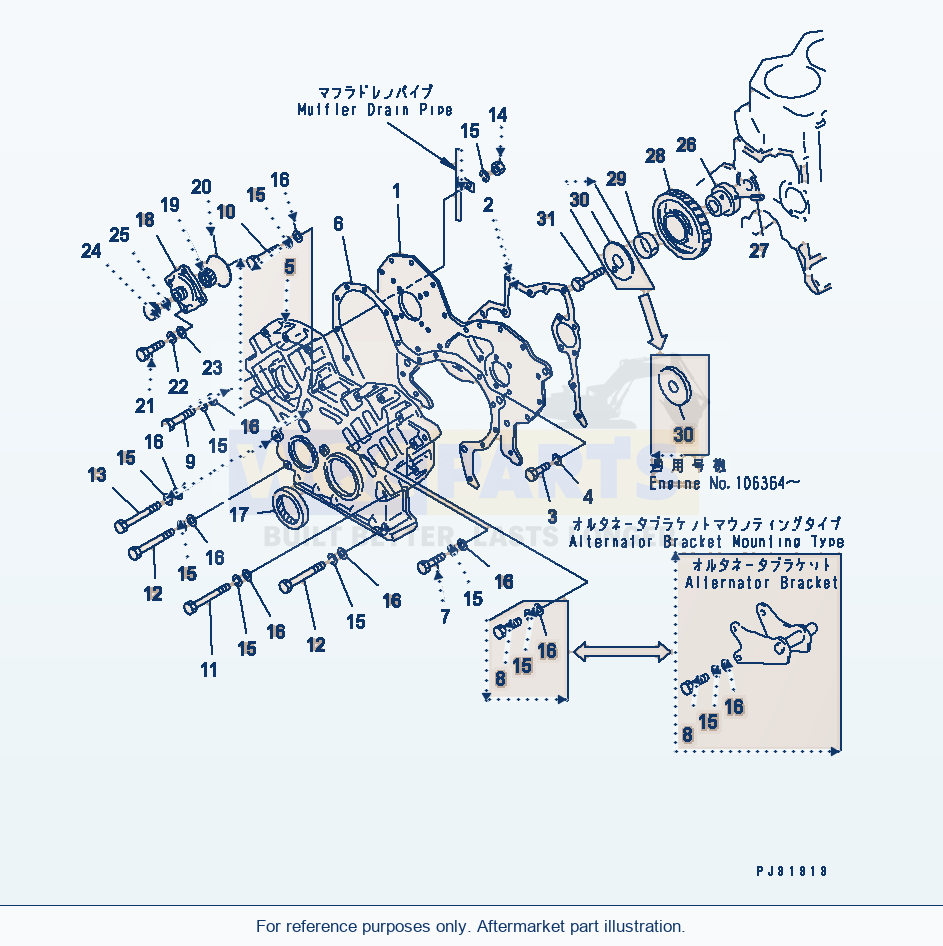

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 35 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PLATE,FRONTSN: 94068-@ | 1 | Request quote | |||
| 2 | GASKET,PLATE (K2)SN: 94068-@ | 1 | View product ↗ | |||
| 3 | BOLTSN: 94068-106665 | 4 | View product ↗ | |||
| 4 | WASHER,SPRINGSN: 94068-106665 | 4 | View product ↗ | |||
| 5 | COVER,FRONTSN: 94068-@ | 1 | Request quote | |||
| 6 | GASKET (K2)SN: 94068-@ | 1 | View product ↗ | |||
| 7 | BOLTSN: 94068-106665 | 7 | View product ↗ | |||
| 8 | BOLTSN: 94068-106665 | 2 | View product ↗ | |||
| 8 | BOLT,(FOR ALTERNATOR BRACKET MOUNT)SN: 94068-106665 | 2 | Request quote | |||
| 9 | BOLTSN: 94068-106665 | 1 | Request quote | |||
| 10 | BOLTSN: 94068-106665 | 4 | View product ↗ | |||
| 11 | BOLTSN: 94068-106665 | 1 | View product ↗ | |||
| 12 | BOLTSN: 94068-106665 | 2 | Request quote | |||
| 13 | BOLTSN: 94068-106665 | 1 | Request quote | |||
| 14 | NUTSN: 94068-106665 | 1 | View product ↗ | |||
| 15 | WASHER,SPRINGSN: 94068-106665 | 18 | View product ↗ | |||
| 16 | WASHERSN: 94068-106665 | 19 | Request quote | |||
| 17 | SEAL, FRONT (K2)SN: 94068-@ | 1 | View product ↗ | |||
| 18 | COVER,BEARINGSN: 94068-@ | 1 | Request quote | |||
| 19 | SEAL,OIL (K2)SN: 94068-@ | 1 | View product ↗ | |||
| 20 | O-RING (K2)SN: 94068-@ | 1 | View product ↗ | |||
| 21 | BOLTSN: 94068-106665 | 4 | Request quote | |||
| 22 | WASHER,SPRINGSN: 94068-106665 | 4 | View product ↗ | |||
| 23 | WASHERSN: 94068-106665 | 4 | Request quote | |||
| 24 | CAPSN: 94068-@ | 1 | Request quote | |||
| 25 | GASKETSN: 103136-@ | 1 | View product ↗ | |||
| 25 | GASKET (K2)SN: 94068-103135 | 1 | View product ↗ | |||
| 26 | SHAFT,IDLERSN: 94068-@ | 1 | Request quote | |||
| 27 | PIN,SPRINGSN: 94068-@ | 1 | Request quote | |||
| 29 | IDLER GEAR ASS'YSN: 94068-@ | 1 | Request quote | |||
| 29 | BUSHINGSN: 94068-@ | 1 | View product ↗ | |||
| 30 | WASHERSN: 106364-@ | 1 | Request quote | |||
| 30 | PLATE,THRUSTSN: 94068-106363 | The part specified in the DESCRIPTION column can be used instead of this part if it is used as a set. | 1 | Request quote | |||
| 31 | BOLTSN: 106364-106665 | 1 | Request quote | |||
| 31 | BOLTSN: 94068-106363 | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 28 | Description: GEAR | QTY: 1 | OPTIONS: SN: 94068-@
(6204-31-6350,01010-31280)
Using Komatsu WA320-1 Front Cover And Gear(#94068-106665) Parts
Use the Komatsu WA320-1 Front Cover And Gear(#94068-106665) Parts listing to identify aftermarket replacement parts within the engine cylinder block section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 35 listed part occurrences, including plate,front (reference 6136-21-3120), gasket,plate (k2) (reference 6136-21-3821) and cover,front (reference 6136-21-3111). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is S6D105-1AJ (engine serial 86535-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
For cylinder-block and related engine components, compare the listed engine serial break and every row-specific option. Use the individual part reference rather than the diagram appearance to distinguish revisions.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
