Komatsu WA320-1 Air Cleaner And Mounting (Trimmimg Spec.) Parts
Komatsu WA320-1 air cleaner and mounting (trimmimg spec.) parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: S6D105-1SS S/N 86535-UP / Engine Cylinder Head / Air Cleaner And Mounting (Trimmimg Spec.).
Checking current purchase options...

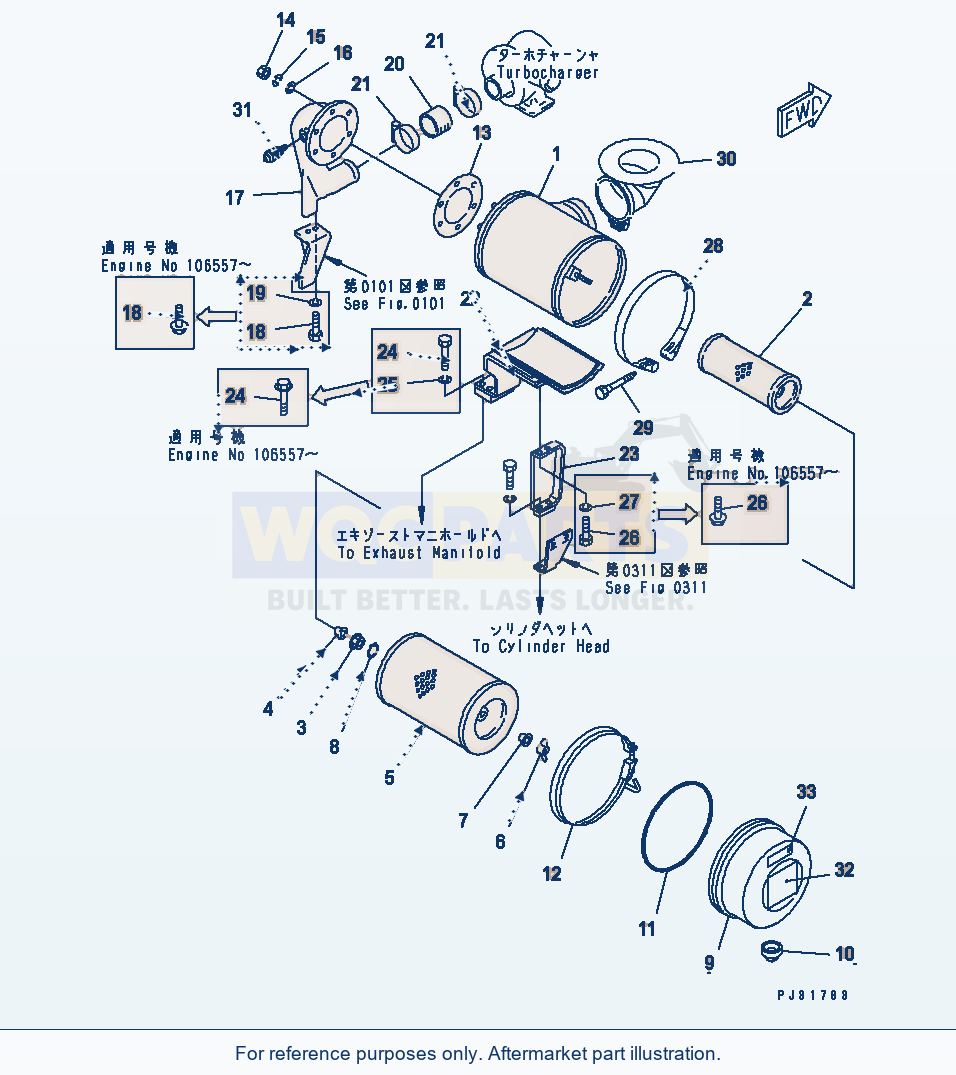

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 42 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | AIR CLEANER ASS'YSN: 86535-UP | 1 | Request quote | |||
| 1 | BODYSN: 86535-UP | 1 | Request quote | |||
| 2 | ELEMENT ASS'YSN: 86535-UP | 1 | Request quote | |||
| 3 | NUTSN: 86535-UP | 1 | Request quote | |||
| 4 | WASHER,SEALSN: 86535-UP | 1 | View product ↗ | |||
| 6 | ELEMENT ASS'Y,OUTERSN: 86535-UP | 1 | View product ↗ | |||
| 6 | NUT,WINGSN: 86535-UP | 1 | Request quote | |||
| 7 | WASHER,SEALSN: 86535-UP | 1 | View product ↗ | |||
| 8 | RING,SNAPSN: 86535-UP | 1 | Request quote | |||
| 9 | COVERSN: 86535-UP | 1 | Request quote | |||
| 10 | VALVESN: 86535-UP | 1 | Request quote | |||
| 11 | O-RINGSN: 86535-UP | 1 | Request quote | |||
| 12 | CLAMP ASS'YSN: 86535-UP | 1 | Request quote | |||
| 13 | GASKET (K1)SN: 89134-UP | 1 | View product ↗ | |||
| 13 | GASKET (K1)SN: 86535-89133 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 14 | NUTSN: 86535-UP | 6 | View product ↗ | |||
| 15 | WASHER,SPRINGSN: 86535-UP | 6 | View product ↗ | |||
| 16 | WASHERSN: 86535-UP | 6 | View product ↗ | |||
| 17 | CONNECTORSN: 86535-UP | 1 | Request quote | |||
| 18 | BOLTSN: 106557-UP | 2 | View product ↗ | |||
| 18 | BOLTSN: 86535-106556 | 2 | View product ↗ | |||
| 19 | WASHER,SPRINGSN: 86535-106556 | 2 | View product ↗ | |||
| 20 | HOSE,AIRSN: 93419-UP | 1 | Request quote | |||
| 20 | HOSE,AIRSN: 86535-93418 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 21 | CLAMPSN: 86535-UP | 2 | View product ↗ | |||
| 22 | BRACKETSN: 86535-UP | 1 | Request quote | |||
| 23 | BRACKETSN: 86535-UP | 1 | Request quote | |||
| 24 | BOLTSN: 106557-UP | 4 | Request quote | |||
| 24 | BOLTSN: 86535-106556 | 4 | View product ↗ | |||
| 25 | WASHER,SPRINGSN: 86535-106556 | 4 | View product ↗ | |||
| 26 | BOLTSN: 106557-UP | 2 | View product ↗ | |||
| 26 | BOLTSN: 86535-106556 | 2 | View product ↗ | |||
| 27 | WASHER,SPRINGSN: 86535-106556 | 2 | View product ↗ | |||
| 28 | BAND ASS'YSN: 86535-UP | 1 | View product ↗ | |||
| 28 | PINSN: 86535-UP | 1 | Request quote | |||
| 28 | PIN, WITH THREADSN: 86535-UP | 1 | Request quote | |||
| 29 | BOLTSN: 86535-UP | 1 | Request quote | |||
| 30 | PIPESN: 86535-UP | 1 | Request quote | |||
| 31 | INDICATOR,DUSTSN: 105941-UP | 1 | View product ↗ | |||
| 31 | INDICATOR,DUST (JAPANESE-ENGLISH)SN: 86535-105940 | The part specified in the line above can be used instead of this part | 1 | View product ↗ | |||
| 32 | PLATE, INSTRUCTION,(ENGLISH)SN: 86535-UP | 1 | Request quote | |||
| 33 | PLATE,(PART NO.) (TBG./ABE SPEC.)SN: 86535-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 2 | Description: ELEMENT,INNER | QTY: 1 | OPTIONS: SN: 86535-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 5 | Description: ELEMENT,OUTER | QTY: 1 | OPTIONS: SN: 86535-UP
Using Komatsu WA320-1 Air Cleaner And Mounting (Trimmimg Spec.) Parts
Use the Komatsu WA320-1 Air Cleaner And Mounting (Trimmimg Spec.) Parts listing to identify aftermarket replacement parts within the engine cylinder head section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 42 listed part occurrences, including air cleaner ass'y (reference 600-181-1500), body (reference 600-181-1350) and element ass'y (reference 600-181-1550). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is S6D105-1SS (engine serial 86535-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
For cylinder-head and related engine parts, follow the applicability attached to the selected assembly. Gaskets, fasteners and other components must be checked by their listed references rather than assumed to interchange between engine versions.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
