Komatsu WA320-1 Wheel Loader Alternator And Mounting (35A) Parts
Komatsu WA320-1 alternator and mounting (35a) parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: S6D105-1AJ S/N 86535-UP / Engine Electrical System / Alternator And Mounting (35A).
Checking current purchase options...

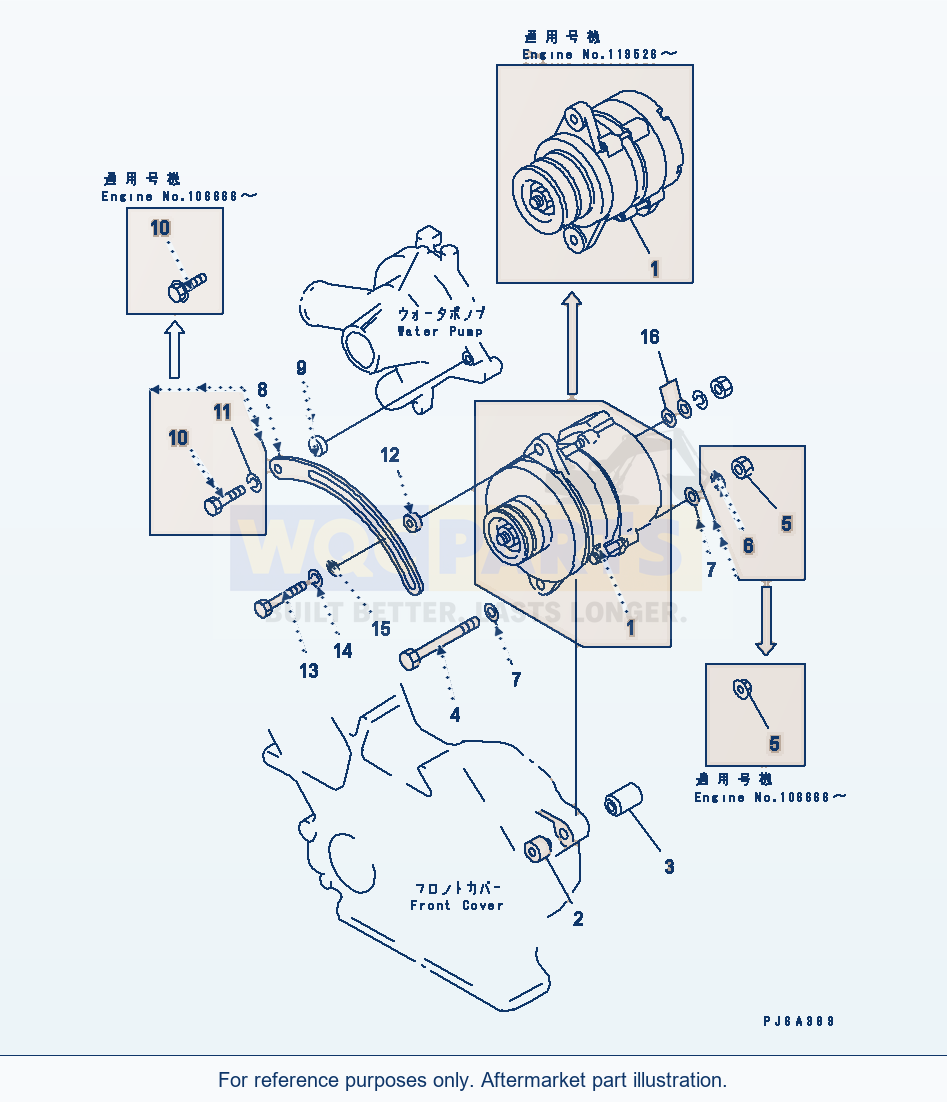

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 21 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | ALTERNATOR A. (35A),(SEE FIG.0642A)SN: 119526-UP | 1 | View product ↗ | |||
| 1 | ALTERNATOR A. (35A),(SEE FIG.0642)SN: 94068-119525 | The part specified in the line above can be used instead of this part | 1 | View product ↗ | |||
| 1 | ALTERNATOR A. (25A),(SEE FIG.0644)SN: 94068-UP | 1 | Request quote | |||
| 2 | SPACERSN: 94068-UP | 1 | Request quote | |||
| 3 | SPACERSN: 94068-UP | 1 | Request quote | |||
| 4 | BOLTSN: 94068-UP | 1 | Request quote | |||
| 5 | NUTSN: 106666-UP | 1 | Request quote | |||
| 5 | NUTSN: 94068-106665 | 1 | View product ↗ | |||
| 6 | WASHER,SPRINGSN: 94068-106665 | 1 | View product ↗ | |||
| 7 | WASHERSN: 94068-UP | 2 | View product ↗ | |||
| 8 | PLATE,ADJUSTSN: 94068-UP | 1 | Request quote | |||
| 9 | SPACERSN: 94068-UP | 1 | Request quote | |||
| 10 | BOLTSN: 106666-UP | 1 | Request quote | |||
| 10 | BOLTSN: 94068-106665 | 1 | View product ↗ | |||
| 11 | WASHER,SPRINGSN: 94068-106665 | 1 | View product ↗ | |||
| 12 | SPACERSN: 94068-UP | 1 | Request quote | |||
| 13 | BOLTSN: 94068-UP | 1 | Request quote | |||
| 14 | WASHER,SPRINGSN: 94068-UP | 1 | View product ↗ | |||
| 15 | WASHERSN: 94068-UP | 1 | View product ↗ | |||
| 16 | WASHERSN: 94068-UP | 2 | Request quote | |||
| 17 | V-BELT SET,(NOT SHOWN)SN: 94068-UP | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA320-1 Wheel Loader Alternator And Mounting (35A) Parts
Use the Komatsu WA320-1 Wheel Loader Alternator And Mounting (35A) Parts listing to identify aftermarket replacement parts within the engine electrical system section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 21 listed part occurrences, including alternator a. (35a),(see fig.0642a) (reference 600-825-3740), alternator a. (35a),(see fig.0642) (reference 600-821-7540) and alternator a. (25a),(see fig.0644) (reference 600-821-5630). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is S6D105-1AJ (engine serial 86535-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
For electrical parts, compare the component reference and any voltage, connector or equipment-option notes shown in the listing. A similar description or shape alone is not a compatibility check.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
