Komatsu WA320-1 Wheel Loader Radiator(#20001-) Serial 10001-UP Parts
Komatsu WA320-1 radiator(#20001-) serial 10001-up parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine Related Parts And Electrical System / Radiator(#20001-).
Checking current purchase options...

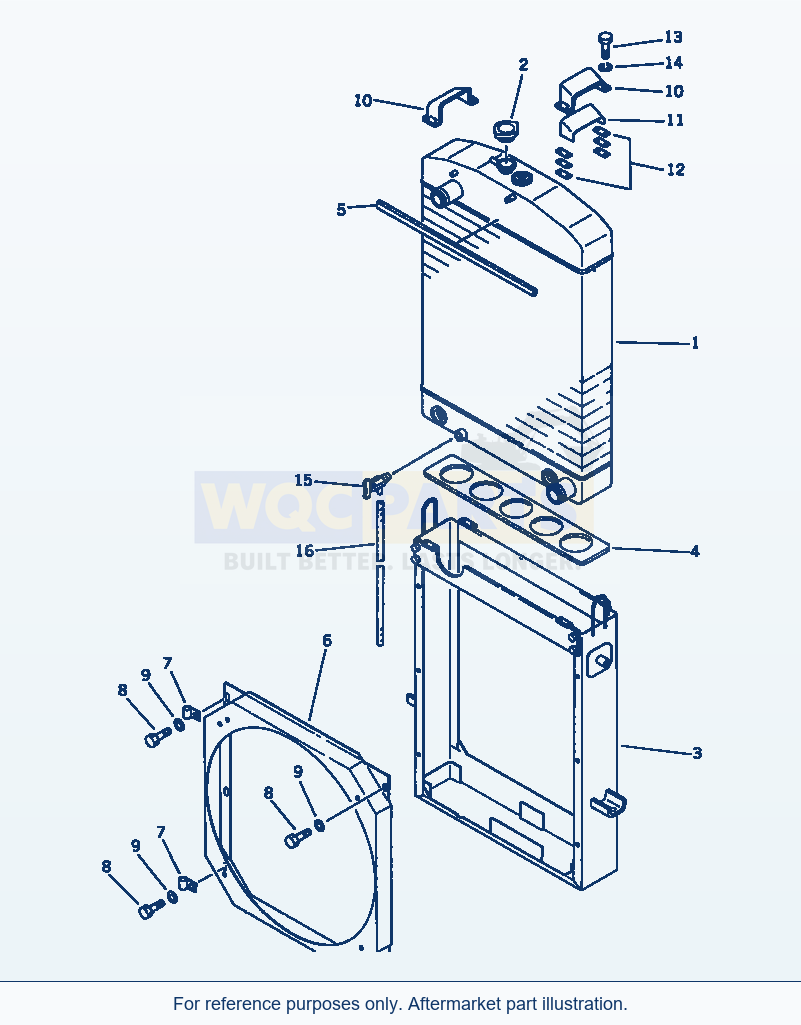

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 20 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | RADIATOR ASS'Y,(WA320-1M,1P)SN: 20026-UP | 1 | Request quote | |||
| 1 | RADIATOR ASS'Y,(WA320-1M,1P)SN: 20001-20025 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 1 | CORE ASS'YSN: 20001-UP | 1 | Request quote | |||
| 2 | CAP ASS'YSN: 20001-UP | 1 | View product ↗ | |||
| 3 | FRAME,(WA320-1M,1P)SN: 20026-UP | 1 | Request quote | |||
| 3 | FRAME,(WA320-1M,1P)SN: 20001-20025 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 4 | SEATSN: 10001-UP | 1 | Request quote | |||
| 5 | PACKINGSN: 10001-UP | 1 | Request quote | |||
| 6 | SHROUD,(WA320-1M,1P)SN: 20026-UP | 1 | Request quote | |||
| 6 | SHROUD,(WA320-1M,1P)SN: 20001-20025 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 7 | CLIPSN: 20001-UP | 2 | View product ↗ | |||
| 8 | BOLTSN: 10001-UP | 6 | Request quote | |||
| 9 | WASHERSN: 10001-UP | 6 | View product ↗ | |||
| 10 | CLAMPSN: 10001-UP | 2 | Request quote | |||
| 11 | SEATSN: 10001-UP | 2 | Request quote | |||
| 12 | SHIM, 0.6MMSN: 10001-UP | 16 | Request quote | |||
| 13 | BOLTSN: 10001-UP | 8 | Request quote | |||
| 14 | WASHER,SPRINGSN: 10001-UP | 8 | View product ↗ | |||
| 15 | VALVE,DRAINSN: 10001-UP | 1 | Request quote | |||
| 16 | HOSESN: 10001-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
