Komatsu WA320-1 Wheel Loader 3Rd Clutch Serial 10001-UP Parts
Komatsu WA320-1 3rd clutch serial 10001-up parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Torque Converter And Transmission / 3Rd Clutch.
Checking current purchase options...

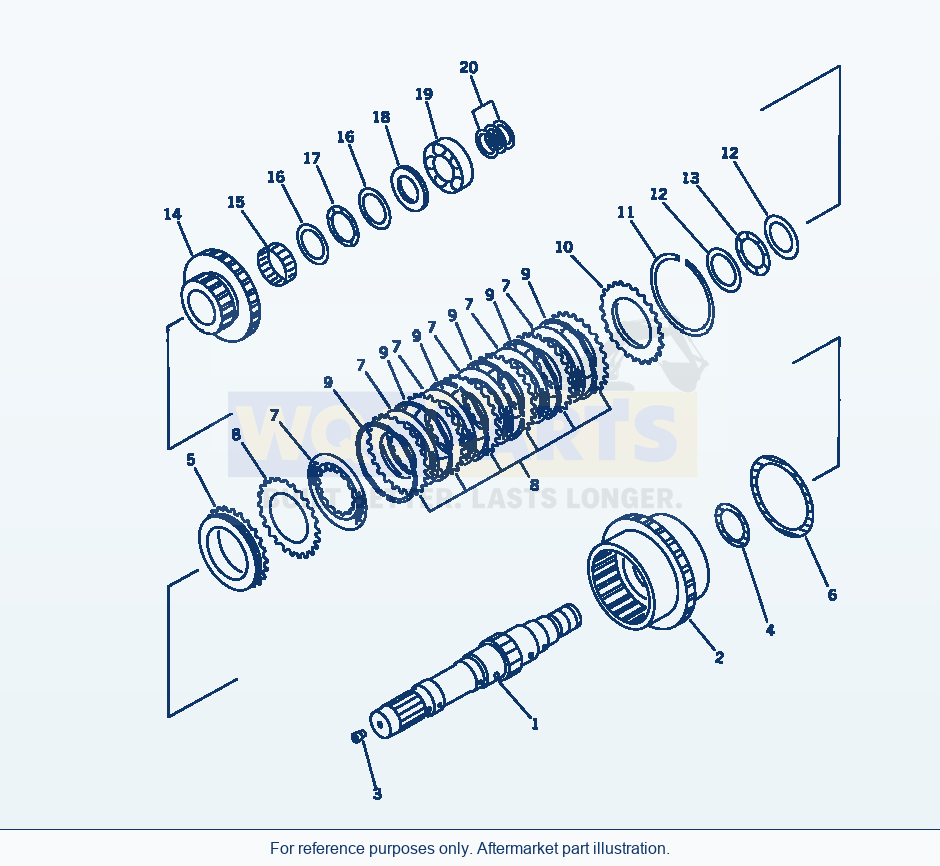

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 24 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | TRANSMISSION ASS'YSN: 20001-UP | 1 | Request quote | |||
| 1 | TRANSMISSION ASS'YSN: 10001-19999 | 1 | Request quote | |||
| 2 | TRANSMISSION ASS'Y,(WITH EMERGENCY STEERING)SN: 10001-UP | 1 | Request quote | |||
| 4 | CLUTCH ASS'Y,1ST AND 3RDSN: 10001-UP | 1 | Request quote | |||
| 6 | HOUSING ASS'YSN: 10001-UP | 1 | Request quote | |||
| 7 | HOUSING ASS'YSN: (10001-10486) | This shows a discontinued part. The part specified in the above line is supplied instead. | 1 | Request quote | |||
| 4 | RING,SEALSN: 10001-UP | 1 | View product ↗ | |||
| 5 | PISTONSN: 10001-UP | 1 | Request quote | |||
| 6 | RING,SEALSN: 10001-UP | 1 | View product ↗ | |||
| 7 | DISCSN: 10001-UP | 6 | View product ↗ | |||
| 8 | PLATE,SEPARATESN: 10001-UP | 7 | View product ↗ | |||
| 9 | SPRING,WAVESN: .-UP | 6 | View product ↗ | |||
| 9 | SPRING,WAVESN: 10001-. | The part specified in the line above can be used instead of this part | 6 | View product ↗ | |||
| 10 | PLATE,ENDSN: 10001-UP | 1 | Request quote | |||
| 11 | RING,SNAPSN: 10001-UP | 1 | Request quote | |||
| 12 | WASHER,THRUSTSN: 10001-UP | 2 | Request quote | |||
| 13 | BEARING,THRUSTSN: 10001-UP | 1 | Request quote | |||
| 14 | GEAR,3RDSN: 10001-UP | 1 | Request quote | |||
| 15 | BEARING,NEEDLESN: 10001-UP | 1 | View product ↗ | |||
| 16 | WASHER,THRUSTSN: 10001-UP | 2 | Request quote | |||
| 17 | BEARING,THRUSTSN: 10001-UP | 1 | View product ↗ | |||
| 18 | SPACERSN: 10001-UP | 1 | Request quote | |||
| 19 | BEARINGSN: 10001-UP | 1 | View product ↗ | |||
| 20 | RING,SEALSN: 10001-UP | 3 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2211 TO 2271.
THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2233 AND 2234.
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: SHAFT | QTY: 1 | OPTIONS: SN: 10487-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: SHAFT | QTY: 1 | OPTIONS: SN: 10001-10486
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 2 | Description: HOUSING | QTY: 1 | OPTIONS: SN: 10487-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 2 | Description: HOUSING | QTY: 1 | OPTIONS: SN: 10001-10486
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 3 | Description: ORIFICE | QTY: 1 | OPTIONS: SN: 10001-UP
Using Komatsu WA320-1 Wheel Loader 3Rd Clutch Serial 10001-UP Parts
Use the Komatsu WA320-1 Wheel Loader 3Rd Clutch Serial 10001-UP Parts listing to identify aftermarket replacement parts within the torque converter and transmission section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 24 listed part occurrences, including transmission ass'y (reference 419-15-11051), transmission ass'y (reference 419-15-11050) and transmission ass'y,(with emergency steering) (reference 419-15-11060). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
When selecting transmission or torque-converter parts, compare the assembly description, machine serial break and any configuration notes. Similar-looking diagrams can cover different internal parts and should not be treated as interchangeable.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
