Komatsu WA320-1LC Wheel Loader Brake Valve Parts
Komatsu WA320-1LC brake valve parts for machine serial A25001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Drive Shaft,Axles Wheels & Brake Systems / Brake Valve.
Checking current purchase options...

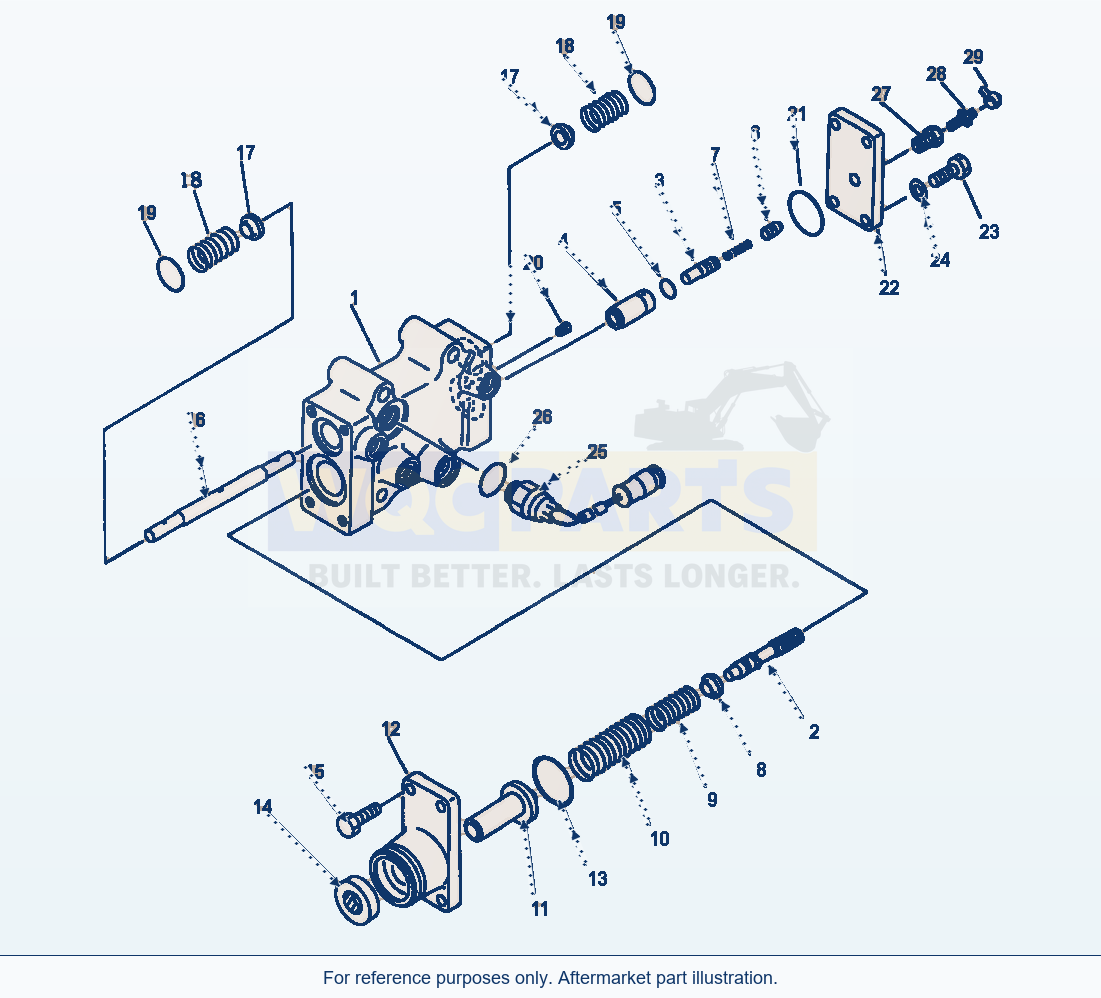

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 30 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | VALVE ASSEMBLY, BRAKE | 1 | Request quote | |||
| 1 | HOUSING | 1 | Request quote | |||
| 2 | SPOOL | 1 | Request quote | |||
| 3 | PISTON | 1 | Request quote | |||
| 4 | SLEEVE | 1 | Request quote | |||
| 5 | O-RING | 1 | View product ↗ | |||
| 6 | PISTON | 1 | Request quote | |||
| 7 | SPRING | 1 | Request quote | |||
| 8 | RETAINER | 1 | Request quote | |||
| 9 | SPRING | 1 | Request quote | |||
| 10 | SPRING | 1 | Request quote | |||
| 11 | ROD | 1 | Request quote | |||
| 12 | COVER | 1 | Request quote | |||
| 13 | O-RING | 1 | View product ↗ | |||
| 14 | SEAL, OIL | 1 | Request quote | |||
| 15 | BOLT | 4 | Request quote | |||
| 16 | SPOOL | 1 | Request quote | |||
| 17 | RETAINER | 2 | Request quote | |||
| 18 | SPRING | 2 | Request quote | |||
| 19 | O-RING | 2 | View product ↗ | |||
| 20 | ORIFICE | 1 | Request quote | |||
| 21 | O-RING | 1 | View product ↗ | |||
| 22 | PLATE | 1 | Request quote | |||
| 23 | BOLT | 4 | Request quote | |||
| 24 | WASHER | 4 | Request quote | |||
| 25 | SWITCH, BRAKE | 1 | Request quote | |||
| 26 | O-RING | 1 | View product ↗ | |||
| 27 | PLUG | 1 | Request quote | |||
| 28 | BLEEDER | 1 | Request quote | |||
| 29 | CAP | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA320-1LC Wheel Loader Brake Valve Parts
Use the Komatsu WA320-1LC Wheel Loader Brake Valve Parts listing to identify aftermarket replacement parts within the drive shaft,axles wheels & brake systems section. This wheel loader application is listed for machine serial A25001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 30 listed part occurrences, including valve assembly, brake (reference 419-43-12102), housing (reference 419-43-12130) and spool (reference 419-43-12190). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For axle, driveline and brake-related parts, follow the assembly location and machine serial applicability. Keep front/rear and left/right distinctions, along with any equipment options recorded in the parts list.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
