Komatsu WA320-1LC Wheel Loader Fender And Ladder Parts
Komatsu WA320-1LC fender and ladder parts for machine serial A25001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Frame, Guard & Superstructure / Fender And Ladder.
Checking current purchase options...

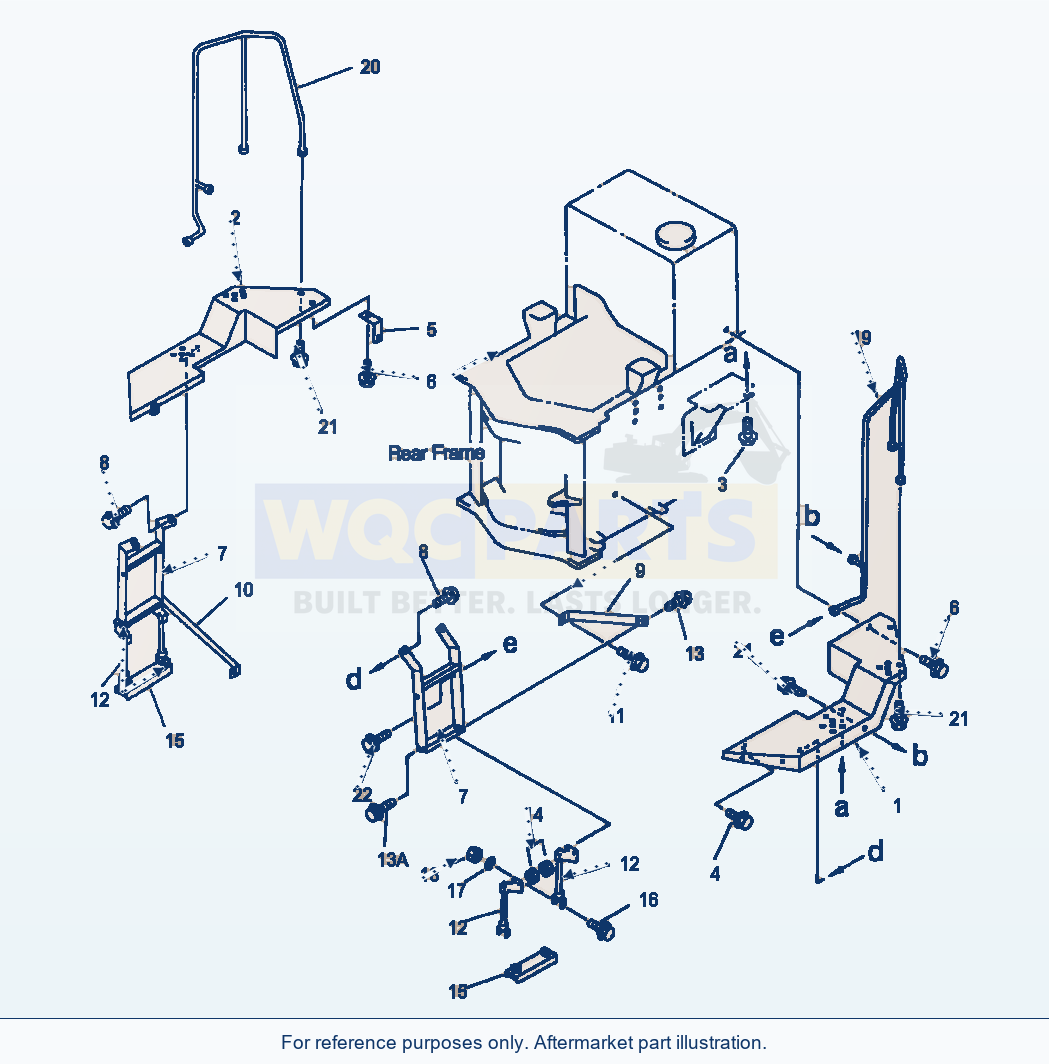

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 23 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | FENDER, PLATFORM LH | 1 | Request quote | |||
| 2 | FENDER, PLATFORM RH | 1 | Request quote | |||
| 3 | BOLT | 4 | View product ↗ | |||
| 4 | BOLT | 4 | Request quote | |||
| 5 | PLATE | 2 | Request quote | |||
| 6 | BOLT | 4 | Request quote | |||
| 7 | LADDER, ENTRY | 2 | Request quote | |||
| 8 | BOLT | 4 | View product ↗ | |||
| 9 | SUPPORT, LH | 1 | Request quote | |||
| 10 | SUPPORT, RH | 1 | Request quote | |||
| 11 | BOLT | 2 | Request quote | |||
| 12 | WIREROPE FOR STEP | 4 | Request quote | |||
| 13 | BOLT | 4 | Request quote | |||
| 13A | BOLT | 4 | Request quote | |||
| 14 | NUT | 8 | View product ↗ | |||
| 15 | STEP | 2 | Request quote | |||
| 16 | BOLT | 4 | Request quote | |||
| 17 | WASHER | 4 | View product ↗ | |||
| 18 | NUT | 4 | Request quote | |||
| 19 | RAIL, LH HAND (ENTRY) | 1 | Request quote | |||
| 20 | RAIL, RH HAND (ENTRY) | 1 | Request quote | |||
| 21 | BOLT | 6 | View product ↗ | |||
| 22 | BOLT | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA320-1LC Wheel Loader Fender And Ladder Parts
Use the Komatsu WA320-1LC Wheel Loader Fender And Ladder Parts listing to identify aftermarket replacement parts within the frame, guard & superstructure section. This wheel loader application is listed for machine serial A25001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 23 listed part occurrences, including fender, platform lh (reference 419-54-11562), fender, platform rh (reference 419-54-11552) and plate (reference 419-54-11750). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
