Komatsu WA320-1LC Wheel Loader Tools Parts
Komatsu WA320-1LC tools parts for machine serial A25001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Mark Plates, Tools & Kits / Tools.
Checking current purchase options...

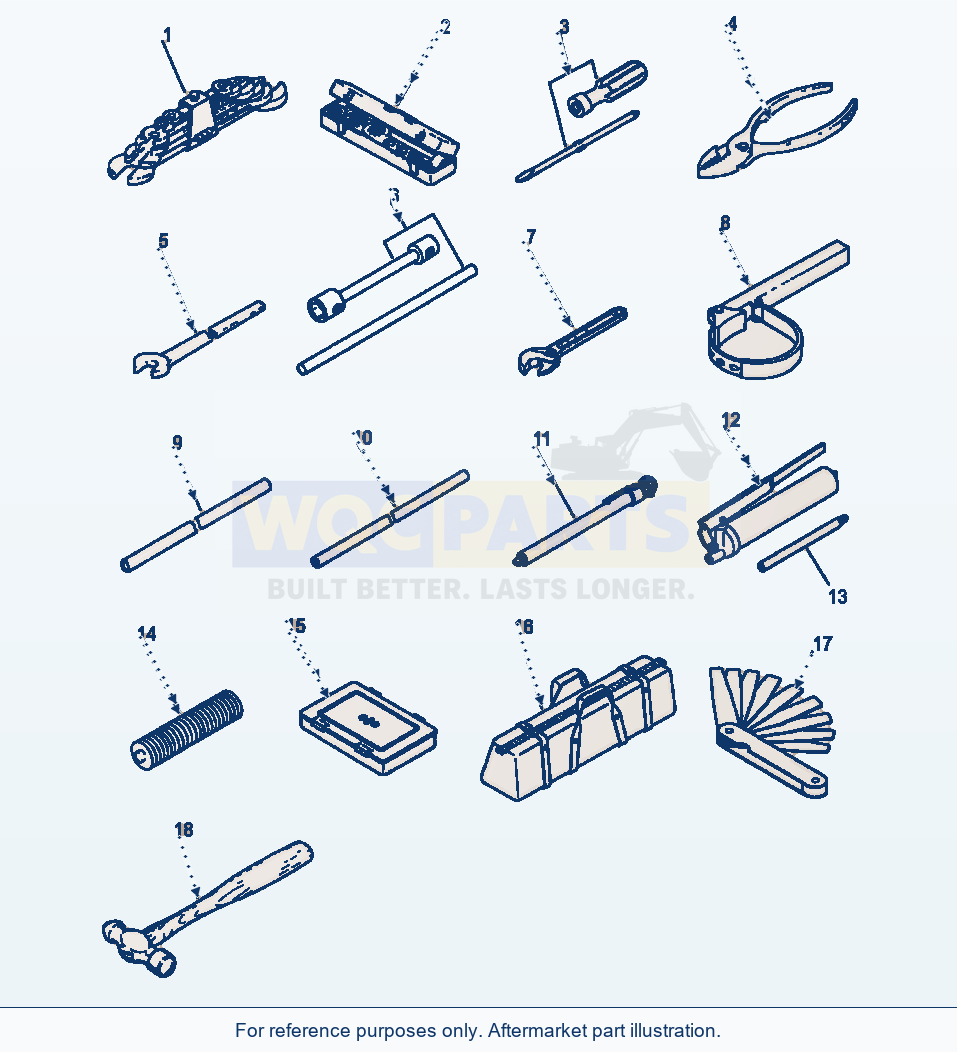

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 19 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | WRENCH SET | 1 | Request quote | |||
| 2 | SOCKET WRENCH SET | 1 | Request quote | |||
| 3 | SCREW DRIVER | 1 | Request quote | |||
| 4 | PLIERS | 1 | Request quote | |||
| 5 | WRENCH | 1 | Request quote | |||
| 6 | WRENCH, TIRE | 1 | Request quote | |||
| 7 | WRENCH, ADJUSTABLE | 1 | Request quote | |||
| 8 | WRENCH, FILTER | 1 | Request quote | |||
| 9 | BAR, BREAKER | 1 | Request quote | |||
| 10 | HOSE, AIR | 1 | Request quote | |||
| 11 | GAUGE, TIRE PRESSURE | 1 | Request quote | |||
| 12 | PUMP ASSEMBLY, GREASE | 1 | Request quote | |||
| 12 | PUMP, GREASE | 1 | Request quote | |||
| 13 | NOZZLE, GREASE PUMP | 1 | Request quote | |||
| 14 | CARTRIDGE, GREASE | 1 | Request quote | |||
| 15 | BOX, BILL | 1 | Request quote | |||
| 16 | BAG, TOOL | 1 | Request quote | |||
| 17 | GAUGE, THICKNESS | 1 | Request quote | |||
| 18 | HAMMER, BALL PEEN | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA320-1LC Wheel Loader Tools Parts
Use the Komatsu WA320-1LC Wheel Loader Tools Parts listing to identify aftermarket replacement parts within the mark plates, tools & kits section. This wheel loader application is listed for machine serial A25001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 19 listed part occurrences, including wrench set (reference 09000-30006), socket wrench set (reference 09020-10284) and pliers (reference 09036-00150). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For identification and caution plates, compare the precise plate description and listed application. Do not substitute a plate solely because its shape or mounting position looks similar.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
