Komatsu WA320-1LC Transmission Control Valve Solenoid Assembly Parts
Komatsu WA320-1LC transmission control valve solenoid assembly parts for machine serial A25001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Torque Converter And Transmission / Transmission Control Valve Solenoid Assembly.
Checking current purchase options...

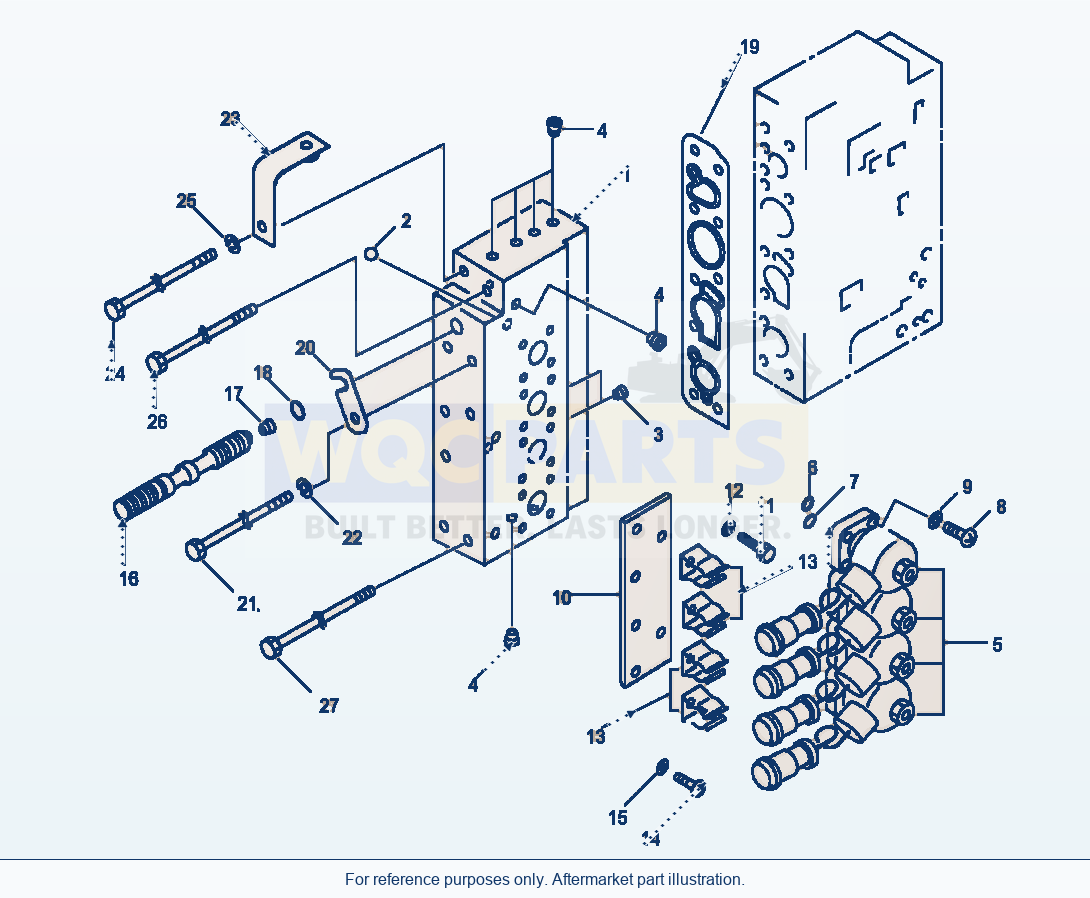

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 29 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | VALVE ASSEMBLY, TRANSMISSION CONTROL SOLENOID | 1 | Request quote | |||
| 1 | BODY ASSEMBLY | 1 | Request quote | |||
| 1 | BODY | 1 | Request quote | |||
| 2 | BALL | 5 | Request quote | |||
| 3 | ORIFICE | 2 | Request quote | |||
| 4 | PLUG | 6 | View product ↗ | |||
| 5 | VALVE, SOLENOID | 4 | Request quote | |||
| 6 | O-RING | 1 | View product ↗ | |||
| 7 | O-RING | 1 | View product ↗ | |||
| 8 | SCREW | 16 | Request quote | |||
| 9 | WASHER, SPRING | 16 | View product ↗ | |||
| 10 | PLATE | 1 | Request quote | |||
| 11 | BOLT | 2 | View product ↗ | |||
| 12 | WASHER | 2 | View product ↗ | |||
| 13 | CLIP | 4 | Request quote | |||
| 14 | SCREW | 4 | Request quote | |||
| 15 | WASHER | 4 | View product ↗ | |||
| 16 | VALVE, MANUAL | 1 | Request quote | |||
| 17 | ORIFICE | 1 | Request quote | |||
| 18 | O-RING | 1 | View product ↗ | |||
| 19 | GASKET | 1 | View product ↗ | |||
| 20 | PLATE, LOCK | 1 | Request quote | |||
| 21 | BOLT | 1 | Request quote | |||
| 22 | WASHER | 1 | View product ↗ | |||
| 23 | PLATE | 1 | Request quote | |||
| 24 | BOLT | 1 | Request quote | |||
| 25 | WASHER | 1 | View product ↗ | |||
| 26 | BOLT | 1 | Request quote | |||
| 27 | BOLT | 6 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA320-1LC Transmission Control Valve Solenoid Assembly Parts
Use the Komatsu WA320-1LC Transmission Control Valve Solenoid Assembly Parts listing to identify aftermarket replacement parts within the torque converter and transmission section. This wheel loader application is listed for machine serial A25001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 29 listed part occurrences, including valve assembly, transmission control solenoid (reference 419-15-16701), body assembly (reference 419-15-16711) and body (reference NSS). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
When selecting transmission or torque-converter parts, compare the assembly description, machine serial break and any configuration notes. Similar-looking diagrams can cover different internal parts and should not be treated as interchangeable.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
