Komatsu WA320-1LC Wheel Loader Transmission Piping Parts
Komatsu WA320-1LC transmission piping parts for machine serial A25001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Torque Converter And Transmission / Transmission Piping.
Checking current purchase options...

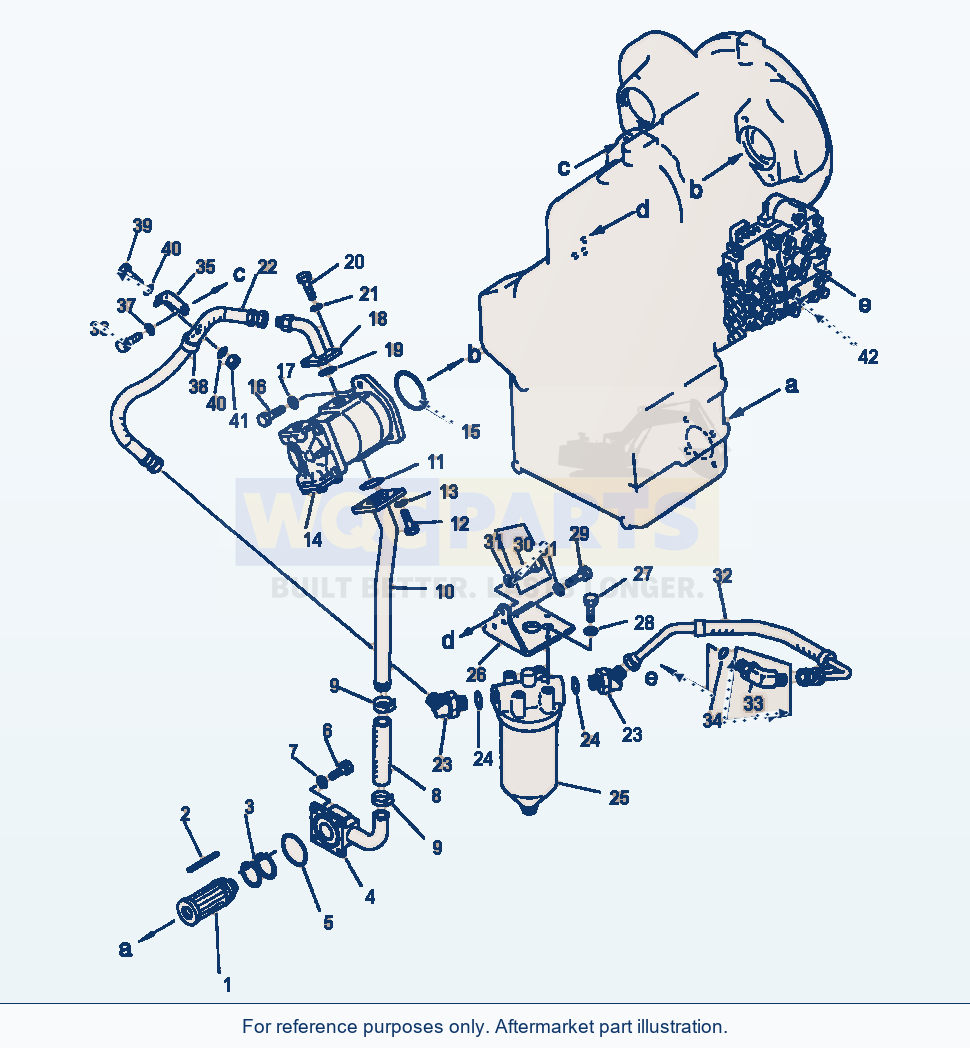

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 46 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | STRAINER ASSEMBLY | 1 | Request quote | |||
| 1 | STRAINER | 1 | View product ↗ | |||
| 2 | MAGNET | 5 | Request quote | |||
| 3 | SPRING, SUPPORT | 1 | Request quote | |||
| 4 | FLANGE | 1 | Request quote | |||
| 5 | O-RING | 1 | View product ↗ | |||
| 6 | BOLT | 4 | View product ↗ | |||
| 7 | WASHER | 4 | View product ↗ | |||
| 8 | HOSE | 1 | Request quote | |||
| 9 | CLAMP | 2 | Request quote | |||
| 10 | TUBE | 1 | Request quote | |||
| 11 | O-RING | 1 | View product ↗ | |||
| 12 | BOLT | 4 | View product ↗ | |||
| 13 | WASHER, SPRING | 4 | Request quote | |||
| 15 | O-RING | 1 | View product ↗ | |||
| 16 | BOLT | 2 | View product ↗ | |||
| 17 | WASHER | 2 | View product ↗ | |||
| 18 | TUBE | 1 | Request quote | |||
| 19 | O-RING | 1 | View product ↗ | |||
| 20 | BOLT | 4 | Request quote | |||
| 21 | WASHER, SPRING | 4 | View product ↗ | |||
| 22 | HOSE | 1 | View product ↗ | |||
| 23 | ELBOW | 2 | Request quote | |||
| 24 | O-RING | 2 | View product ↗ | |||
| 26 | SUPPORT | 1 | Request quote | |||
| 27 | BOLT | 4 | View product ↗ | |||
| 28 | WASHER | 4 | View product ↗ | |||
| 29 | BOLT | 2 | View product ↗ | |||
| 30 | BOLT | 1 | View product ↗ | |||
| 31 | WASHER | 3 | View product ↗ | |||
| 32 | HOSE | 1 | Request quote | |||
| 33 | ELBOW | 1 | Request quote | |||
| 34 | O-RING | 1 | View product ↗ | |||
| 35 | PLATE | 1 | Request quote | |||
| 36 | BOLT | 1 | View product ↗ | |||
| 37 | WASHER | 1 | View product ↗ | |||
| 38 | CLIP | 1 | Request quote | |||
| 39 | BOLT | 1 | View product ↗ | |||
| 40 | WASHER | 2 | View product ↗ | |||
| 41 | NUT | 1 | View product ↗ | |||
| N/I | GASKET | 1 | Request quote | |||
| 45 | BOLT | 4 | Request quote | |||
| 46 | BOLT | 2 | Request quote | |||
| 47 | BOLT | 2 | Request quote | |||
| 48 | BOLT | 4 | Request quote | |||
| 49 | BOLT | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
TRANSMISSION (SEE PG 02-004)
PUMP ASSEMBLY (SEE PG 02-032)
FILTER ASSEMBLY (SEE PG 02-042)
VALVE ASSEMBLY, CONTROL (SEE PG 02-024)
Using Komatsu WA320-1LC Wheel Loader Transmission Piping Parts
Use the Komatsu WA320-1LC Wheel Loader Transmission Piping Parts listing to identify aftermarket replacement parts within the torque converter and transmission section. This wheel loader application is listed for machine serial A25001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 46 listed part occurrences, including strainer assembly (reference 419-15-14510), strainer (reference 419-15-14650) and magnet (reference 417-15-14660). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
When selecting transmission or torque-converter parts, compare the assembly description, machine serial break and any configuration notes. Similar-looking diagrams can cover different internal parts and should not be treated as interchangeable.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
