Komatsu WA320-3 Wheel Loader Engine Timing Gear Parts
Komatsu WA320-3 engine timing gear parts for machine serial WA320H20051-20560. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: 01 Engine, Engine Mounting / Engine Timing Gear.
Checking current purchase options...

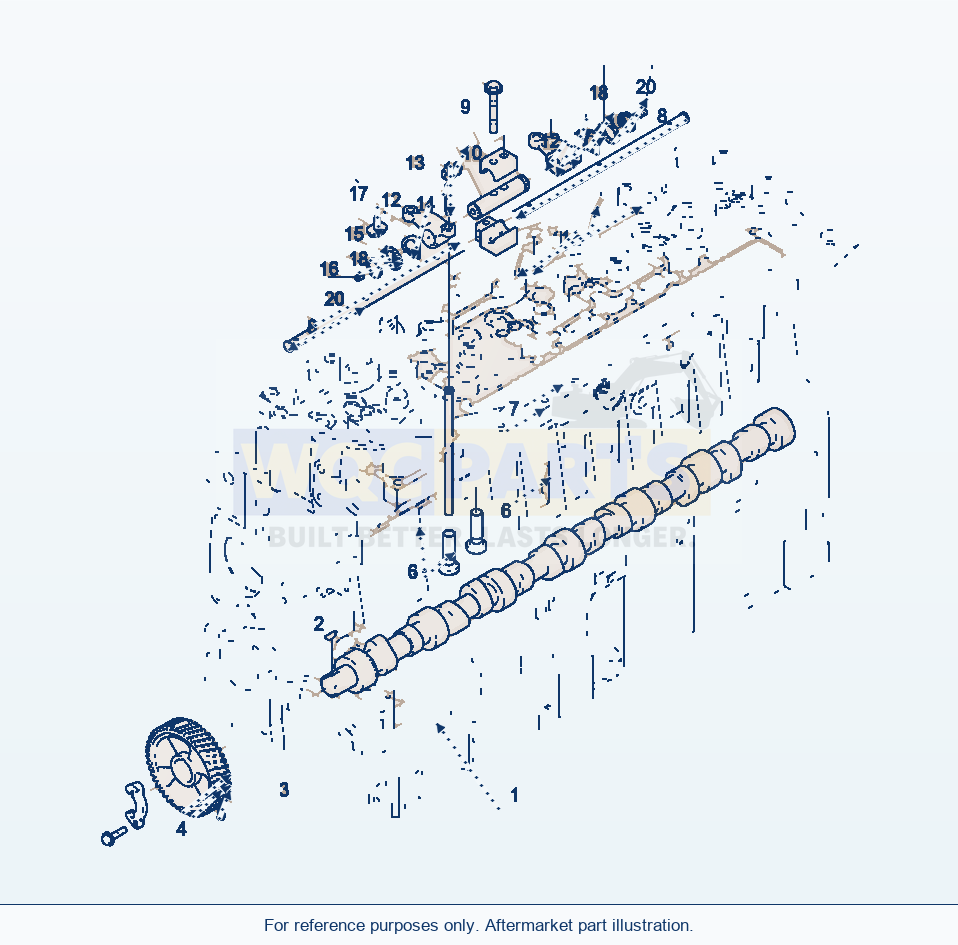

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 19 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | CAMSHAFT | 1 | View product ↗ | |||
| 2 | KEY PARALLEL | 1 | Request quote | |||
| 3 | GEAR | 1 | Request quote | |||
| 4 | SCREW | 2 | Request quote | |||
| 5 | BRACKET | 1 | Request quote | |||
| 6 | TAPPET | 12 | View product ↗ | |||
| 7 | TAPPET ROD | 12 | Request quote | |||
| 8 | TUBE | 1 | View product ↗ | |||
| 9 | SCREW | 12 | View product ↗ | |||
| 10 | BRACKET | 6 | View product ↗ | |||
| 11 | BRACKET | 6 | Request quote | |||
| 12 | ROCKER ARM | 12 | Request quote | |||
| 13 | NUT | 12 | Request quote | |||
| 14 | SCREW | 12 | Request quote | |||
| 16 | CIRCLIP | 12 | Request quote | |||
| 17 | SPRING PLATE | 12 | Request quote | |||
| 18 | PLAIN WASHER | 12 | Request quote | |||
| 19 | ROCKER SHAFT AXLE | 6 | View product ↗ | |||
| 20 | PLUG | 12 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
INSERT
Using Komatsu WA320-3 Wheel Loader Engine Timing Gear Parts
Use the Komatsu WA320-3 Wheel Loader Engine Timing Gear Parts listing to identify aftermarket replacement parts within the 01 engine, engine mounting section. This wheel loader application is listed for machine serial WA320H20051-20560; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 19 listed part occurrences, including camshaft (reference 1278467H2), key parallel (reference 6732-41-1280) and gear (reference 6742-01-2880). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
