Komatsu WA320-3 Wheel Loader Fuel System, Filter Parts
Komatsu WA320-3 fuel system, filter parts for machine serial WA320H20051-20560. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: 01 Engine, Engine Mounting / Fuel System, Filter.
Checking current purchase options...

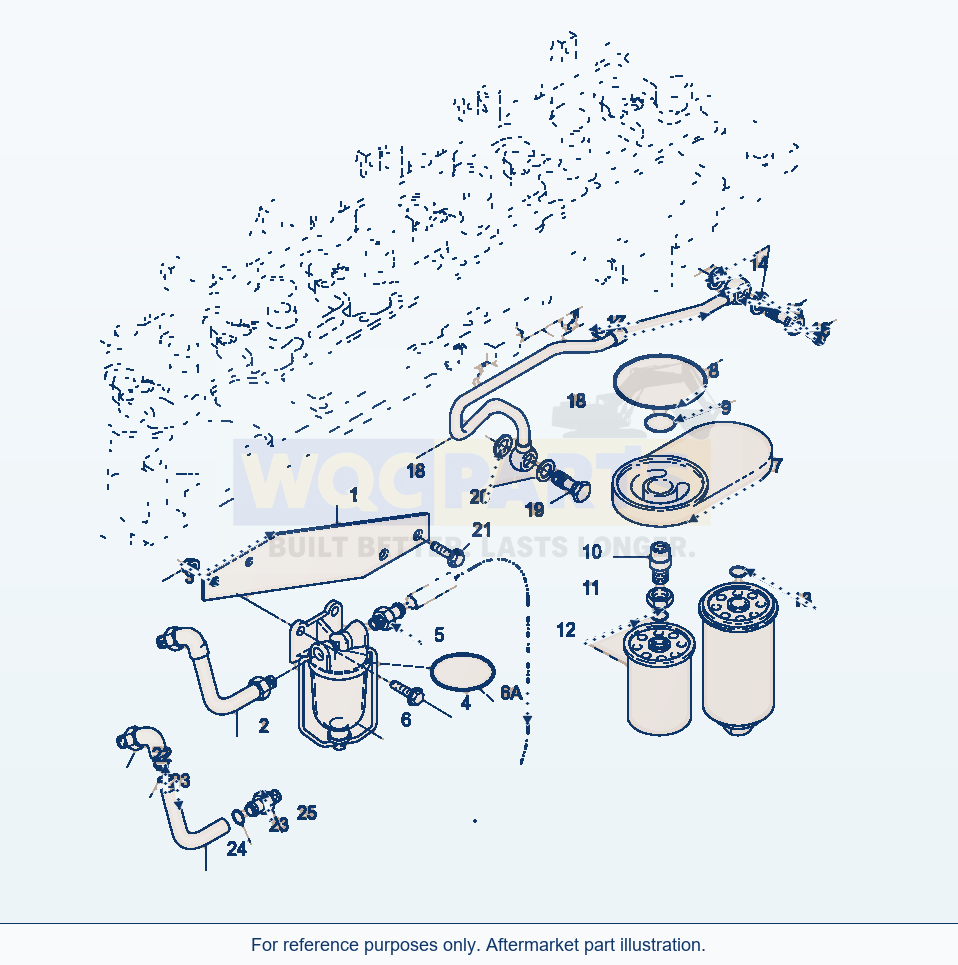

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 26 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | BRACKET | 1 | Request quote | |||
| 2 | FUEL LINE | 1 | Request quote | |||
| 3 | NUT | 2 | Request quote | |||
| 4 | SCREW | 2 | Request quote | |||
| 5 | STUD | 1 | Request quote | |||
| 6 | PRE FILTER | 1 | Request quote | |||
| 6A | SEAL | 1 | Request quote | |||
| 7 | FILTER HEAD | 1 | Request quote | |||
| 8 | SEAL | 1 | Request quote | |||
| 9 | SEAL | 1 | Request quote | |||
| 10 | ADAPTOR | 1 | Request quote | |||
| 11 | NUT | 1 | Request quote | |||
| 12 | FUEL FILTER | 1 | View product ↗ | |||
| 13 | FUEL FILTER | 1 | Request quote | |||
| 14 | SEAL | 2 | Request quote | |||
| 15 | BANJO BOLT | 1 | Request quote | |||
| 16 | PLUG | 1 | Request quote | |||
| 17 | CLIP | 1 | Request quote | |||
| 18 | TUBE | 1 | Request quote | |||
| 19 | BANJO BOLT | 1 | Request quote | |||
| 20 | SEAL | 2 | Request quote | |||
| 21 | SCREW | 2 | Request quote | |||
| 22 | ELBOW | 1 | Request quote | |||
| 23 | CLIP | 2 | Request quote | |||
| 24 | HOSE | 1 | Request quote | |||
| 25 | STUD | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA320-3 Wheel Loader Fuel System, Filter Parts
Use the Komatsu WA320-3 Wheel Loader Fuel System, Filter Parts listing to identify aftermarket replacement parts within the 01 engine, engine mounting section. This wheel loader application is listed for machine serial WA320H20051-20560; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 26 listed part occurrences, including bracket (reference 6742-01-5020), fuel line (reference CU3283697) and stud (reference CU3908585). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
