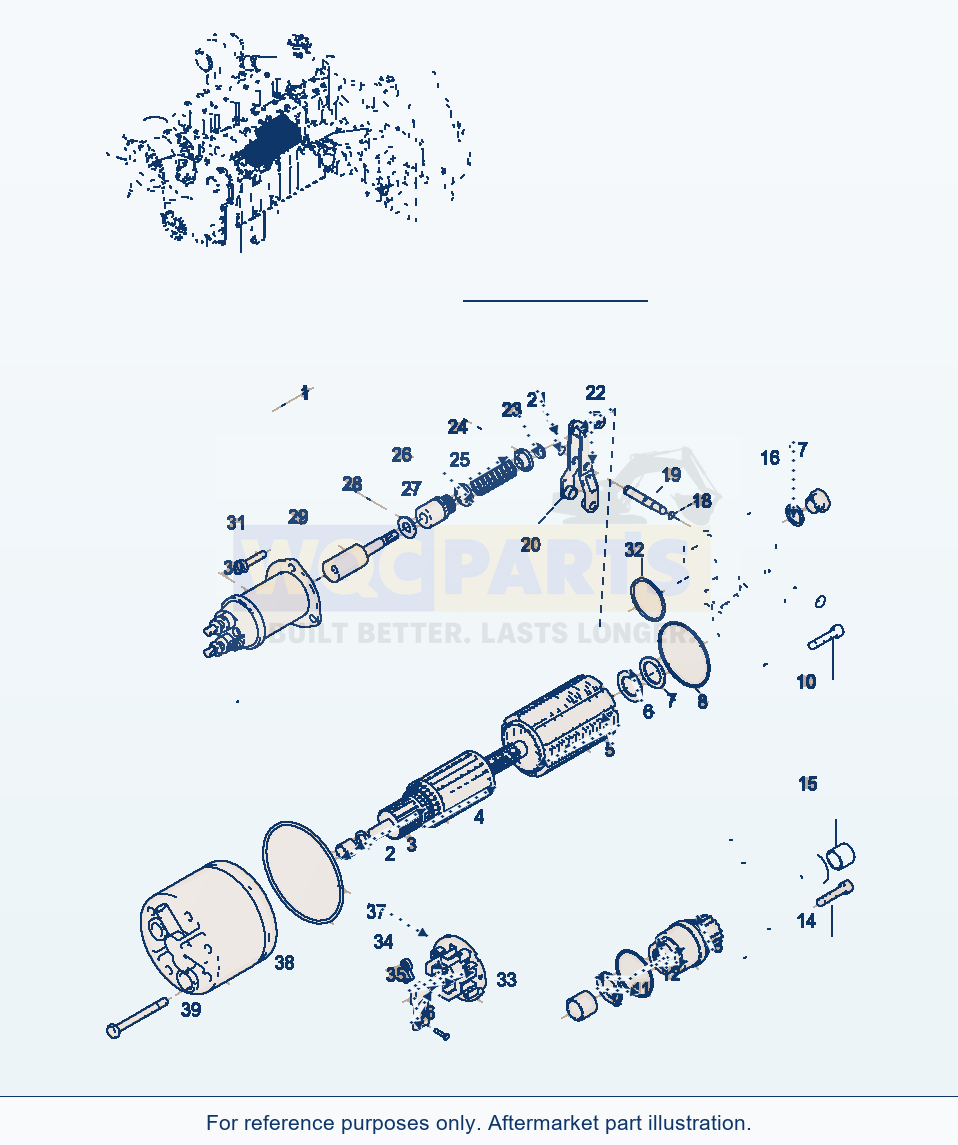

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 39 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | STARTERMOTOR | 1 | View product ↗ | |||
| 2 | BUSHING | 1 | Request quote | |||
| 3 | DISC | 1 | Request quote | |||
| 4 | ANCHOR | 1 | Request quote | |||
| 5 | INDUCTOR | 1 | Request quote | |||
| 6 | DISC | 1 | Request quote | |||
| 7 | SEAL | 1 | Request quote | |||
| 8 | O-RING | 1 | Request quote | |||
| 9 | BUSHING | 1 | Request quote | |||
| 10 | SCREW | 3 | Request quote | |||
| 11 | DISC | 1 | Request quote | |||
| 12 | O-RING | 1 | Request quote | |||
| 13 | DRIVE PINION | 1 | Request quote | |||
| 14 | SCREW | 3 | Request quote | |||
| 15 | BUSHING | 1 | Request quote | |||
| 16 | GASKET | 1 | Request quote | |||
| 17 | PLUG | 1 | Request quote | |||
| 18 | O-RING | 1 | Request quote | |||
| 19 | PIN | 1 | Request quote | |||
| 20 | LEVER | 1 | Request quote | |||
| 21 | O-RING | 1 | Request quote | |||
| 22 | NUT | 1 | Request quote | |||
| 23 | SAFETY CATCH | 1 | Request quote | |||
| 24 | SPRING SEAT | 1 | Request quote | |||
| 25 | COMPRESSION SPRING | 1 | Request quote | |||
| 26 | SPRING SEAT | 1 | Request quote | |||
| 27 | PINION | 1 | Request quote | |||
| 28 | DISC | 1 | Request quote | |||
| 29 | CYLINDER ROD | 1 | Request quote | |||
| 30 | SOLENOID SWITCH | 1 | Request quote | |||
| 31 | BOLT KIT | 1 | Request quote | |||
| 32 | O-RING | 1 | Request quote | |||
| 33 | HOUSING | 1 | Request quote | |||
| 34 | SPRING | 4 | Request quote | |||
| 35 | BRUSH | 4 | Request quote | |||
| 36 | SCREW | 4 | Request quote | |||
| 37 | O-RING | 1 | Request quote | |||
| 38 | COVER | 1 | Request quote | |||
| 39 | BOLT KIT | 4 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
