Komatsu WA320-3 Wheel Loader Drivers Seat, Attaching Parts
Komatsu WA320-3 drivers seat, attaching parts for machine serial WA320H20051-20560. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: 11 Drivers Cab / Drivers Seat, Attaching Parts.
Checking current purchase options...

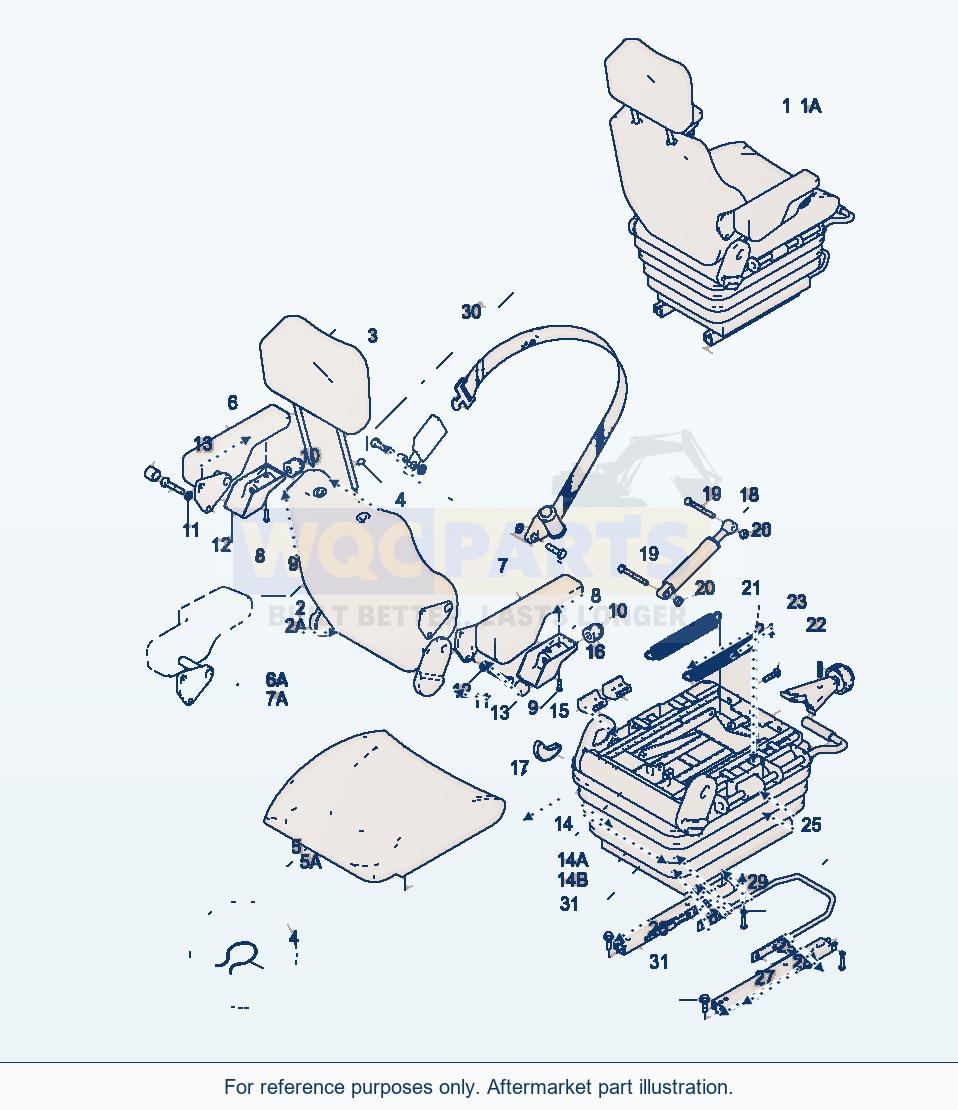

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 38 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | SEAT | 1 | Request quote | |||
| 1A | SEAT | 1 | Request quote | |||
| 2 | BACK REST | 1 | Request quote | |||
| 2A | BACKREST COVERING | 1 | Request quote | |||
| 3 | HEAD REST | 1 | Request quote | |||
| 4 | CLAMP | 2 | Request quote | |||
| 5 | SEAT CUSHION | 1 | Request quote | |||
| 5A | SEAT COVERING | 1 | Request quote | |||
| 6 | ARM REST | 1 | Request quote | |||
| 6A | ARM REST | 1 | Request quote | |||
| 7 | ARM REST | 1 | Request quote | |||
| 7A | ARM REST | 1 | Request quote | |||
| 8 | COVERING | 2 | Request quote | |||
| 9 | SCREW | 4 | Request quote | |||
| 10 | BUTTON | 2 | Request quote | |||
| 11 | SCREW | 4 | Request quote | |||
| 12 | SPRING WASHER | 4 | View product ↗ | |||
| 13 | CAP | 4 | Request quote | |||
| 14 | FRAME | 1 | Request quote | |||
| 14A | BOTTOM PART | 1 | Request quote | |||
| 14B | BELLOWS | 1 | Request quote | |||
| 15 | GRIP | 1 | Request quote | |||
| 16 | GRIP | 1 | Request quote | |||
| 17 | GRIP | 1 | Request quote | |||
| 18 | SHOCK ABSORBER | 1 | Request quote | |||
| 19 | SCREW | 2 | Request quote | |||
| 20 | NUT | 2 | Request quote | |||
| 21 | TENSION SPRING | 2 | Request quote | |||
| 22 | GRIP | 1 | Request quote | |||
| 23 | ADAPTER SLEEVES | 1 | Request quote | |||
| 24 | SCREW | 2 | Request quote | |||
| 25 | STIRRUP | 1 | Request quote | |||
| 26 | RAIL | 1 | Request quote | |||
| 27 | RAIL | 1 | Request quote | |||
| 28 | SCREW | 4 | Request quote | |||
| 29 | SPRING WASHER | 4 | View product ↗ | |||
| 30 | SAFETY BELT | 1 | Request quote | |||
| 31 | SCREW | 4 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA320-3 Wheel Loader Drivers Seat, Attaching Parts
Use the Komatsu WA320-3 Wheel Loader Drivers Seat, Attaching Parts listing to identify aftermarket replacement parts within the 11 drivers cab section. This wheel loader application is listed for machine serial WA320H20051-20560; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 38 listed part occurrences, including seat (reference 423-960-H010), seat (reference 423-960-H011) and back rest (reference 423-57-H0P02). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For operator-compartment and control parts, compare the cab arrangement and equipment options identified on the assembly page. Retain any handedness and connection details when selecting a part or requesting assistance.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
