Komatsu WA320-3 Guard — Bulkhead (Harness And Reserve Tank) Parts
Komatsu WA320-3 guard — bulkhead (harness and reserve tank) parts for machine serial 50001-UP (FOR BOSNIAN. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Chassis Only) / Guard / Bulkhead (Harness And Reserve Tank).
Checking current purchase options...

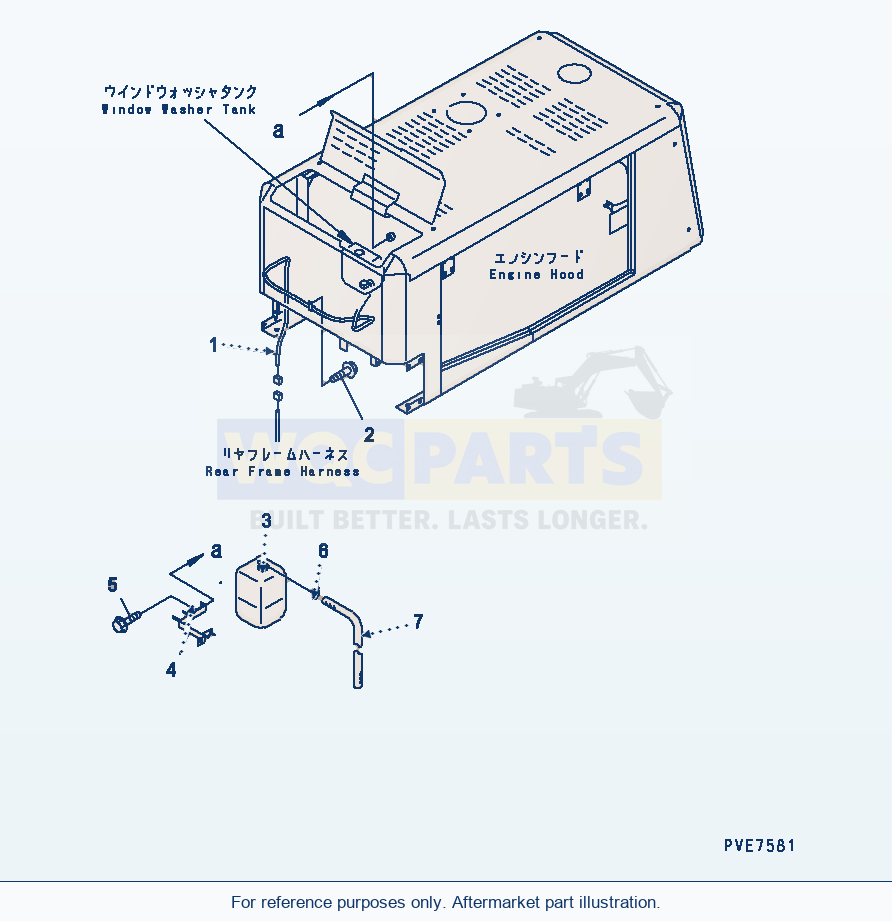

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 14 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | WIRING HARNESSSN: 50001-UP | 1 | Request quote | |||
| 1 | WIRING HARNESS,(WITH AIR CONDITIONER)SN: 50001-UP | 1 | Request quote | |||
| 1 | DIODESN: 50001-UP | 1 | Request quote | |||
| 2 | BOLTSN: 50001-UP | 2 | Request quote | |||
| 3 | TANK ASS'YSN: 54115-UP | 1 | Request quote | |||
| 3 | TANK ASS'YSN: 50001-54114 | 1 | Request quote | |||
| 3 | CAPSN: 54115-UP | 1 | Request quote | |||
| 3 | CAPSN: 50001-54114 | 1 | Request quote | |||
| 3 | HOSESN: 50001-UP | 1 | Request quote | |||
| 3 | CLIPSN: 50001-UP | 1 | Request quote | |||
| 4 | BRACKETSN: 50001-UP | 1 | Request quote | |||
| 5 | BOLTSN: 50001-UP | 2 | Request quote | |||
| 6 | CLIPSN: 50001-UP | 1 | Request quote | |||
| 7 | HOSESN: 50001-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA320-3 Guard — Bulkhead (Harness And Reserve Tank) Parts
Use the Komatsu WA320-3 Guard — Bulkhead (Harness And Reserve Tank) Parts listing to identify aftermarket replacement parts within the chassis only) section. This wheel loader application is listed for machine serial 50001-UP (FOR BOSNIAN; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 14 listed part occurrences, including wiring harness (reference 419-06-22651), wiring harness,(with air conditioner) (reference 419-06-22861) and diode (reference 08020-10000). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
