Komatsu WA320-3 Wheel Loader Radiator(#50001-) Parts
Komatsu WA320-3 radiator(#50001-) parts for machine serial 50001-52999 (OVERSEAS VERSION). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine Related Parts And Electrical System / Radiator(#50001-).
Checking current purchase options...

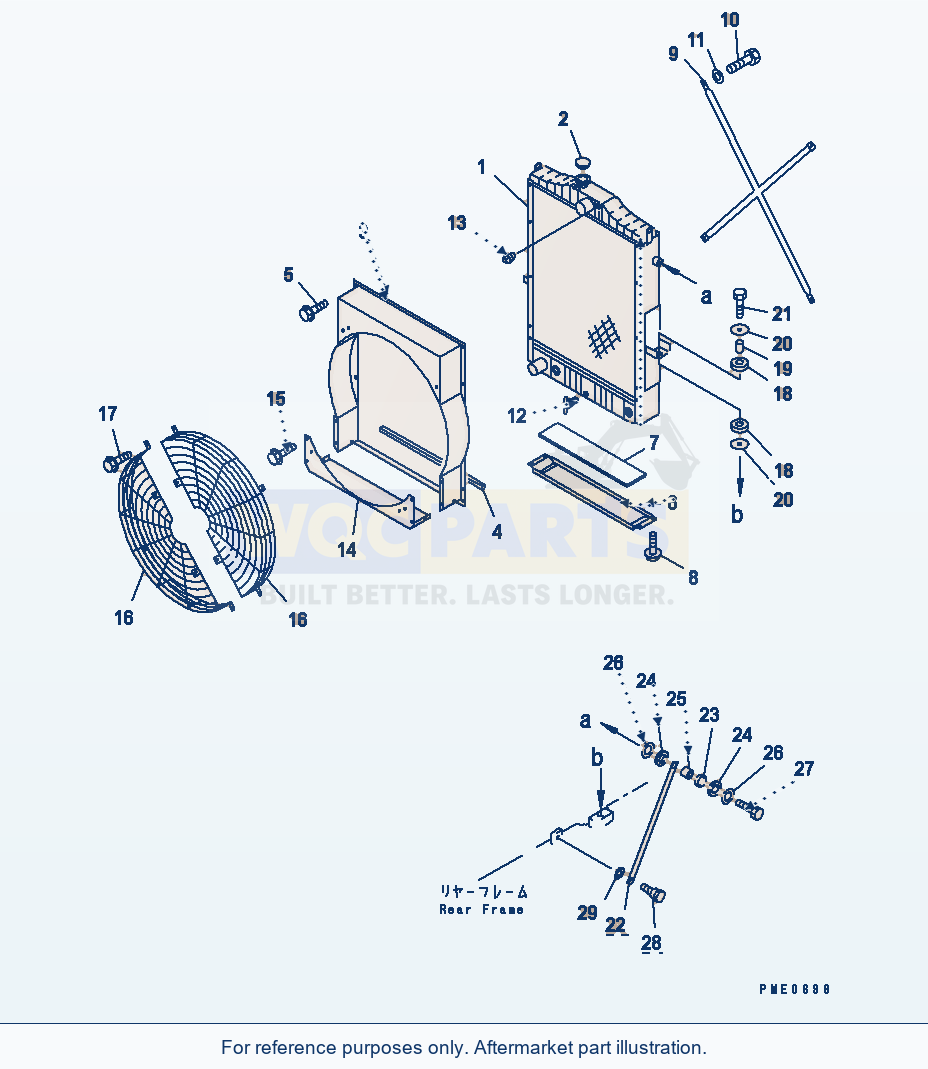

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 30 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | RADIATOR ASS'YSN: 50001-UP | 1 | Request quote | |||
| 1 | CORE ASS'YSN: 50001-UP | 1 | Request quote | |||
| 2 | CAPSN: 50001-UP | 1 | View product ↗ | |||
| 3 | SHROUDSN: 50001-UP | 1 | Request quote | |||
| 4 | PACKINGSN: 50001-UP | 2 | Request quote | |||
| 5 | BOLTSN: 50001-UP | 10 | Request quote | |||
| 6 | BRACKETSN: 50001-UP | 1 | Request quote | |||
| 7 | RUBBERSN: 50001-UP | 1 | Request quote | |||
| 8 | BOLTSN: 50001-UP | 4 | Request quote | |||
| 9 | STAY,CROSSSN: 50001-UP | 1 | Request quote | |||
| 10 | BOLTSN: 50001-UP | 4 | Request quote | |||
| 11 | WASHERSN: 50001-UP | 4 | View product ↗ | |||
| 12 | COCK,DRAINSN: 50001-UP | 1 | Request quote | |||
| 13 | PLUGSN: 50001-UP | 1 | Request quote | |||
| 14 | SHROUDSN: 50001-UP | 1 | Request quote | |||
| 15 | BOLTSN: 50001-UP | 6 | Request quote | |||
| 16 | GUARD,FANSN: 50001-UP | 2 | Request quote | |||
| 17 | BOLTSN: 50001-UP | 10 | View product ↗ | |||
| 18 | CUSHIONSN: 50001-UP | 4 | Request quote | |||
| 19 | SPACERSN: 50001-UP | 2 | Request quote | |||
| 20 | WASHERSN: 50001-UP | 4 | Request quote | |||
| 21 | BOLTSN: 50001-UP | 2 | Request quote | |||
| 22 | STAYSN: 50001-UP | 2 | Request quote | |||
| 23 | CUSHIONSN: 50001-UP | 2 | Request quote | |||
| 24 | CUSHIONSN: 50001-UP | 4 | Request quote | |||
| 25 | SPACERSN: 50001-UP | 2 | Request quote | |||
| 26 | WASHERSN: 50001-UP | 4 | Request quote | |||
| 27 | BOLTSN: 50001-UP | 2 | Request quote | |||
| 28 | BOLTSN: 50001-UP | 2 | Request quote | |||
| 29 | WASHERSN: 50001-UP | 4 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA320-3 Wheel Loader Radiator(#50001-) Parts
Use the Komatsu WA320-3 Wheel Loader Radiator(#50001-) Parts listing to identify aftermarket replacement parts within the engine related parts and electrical system section. This wheel loader application is listed for machine serial 50001-52999 (OVERSEAS VERSION); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 30 listed part occurrences, including radiator ass'y (reference 419-03-21300), core ass'y (reference 419-03-21330) and cap (reference 416-03-11170). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For electrical parts, compare the component reference and any voltage, connector or equipment-option notes shown in the listing. A similar description or shape alone is not a compatibility check.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
