Komatsu WA320-3 Engine (Air Cleaner And Engine Related Parts) Parts
Komatsu WA320-3 engine (air cleaner and engine related parts) parts for machine serial 50001-UP (FOR CHINA). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine Related Parts / Engine (Air Cleaner And Engine Related Parts).
Checking current purchase options...

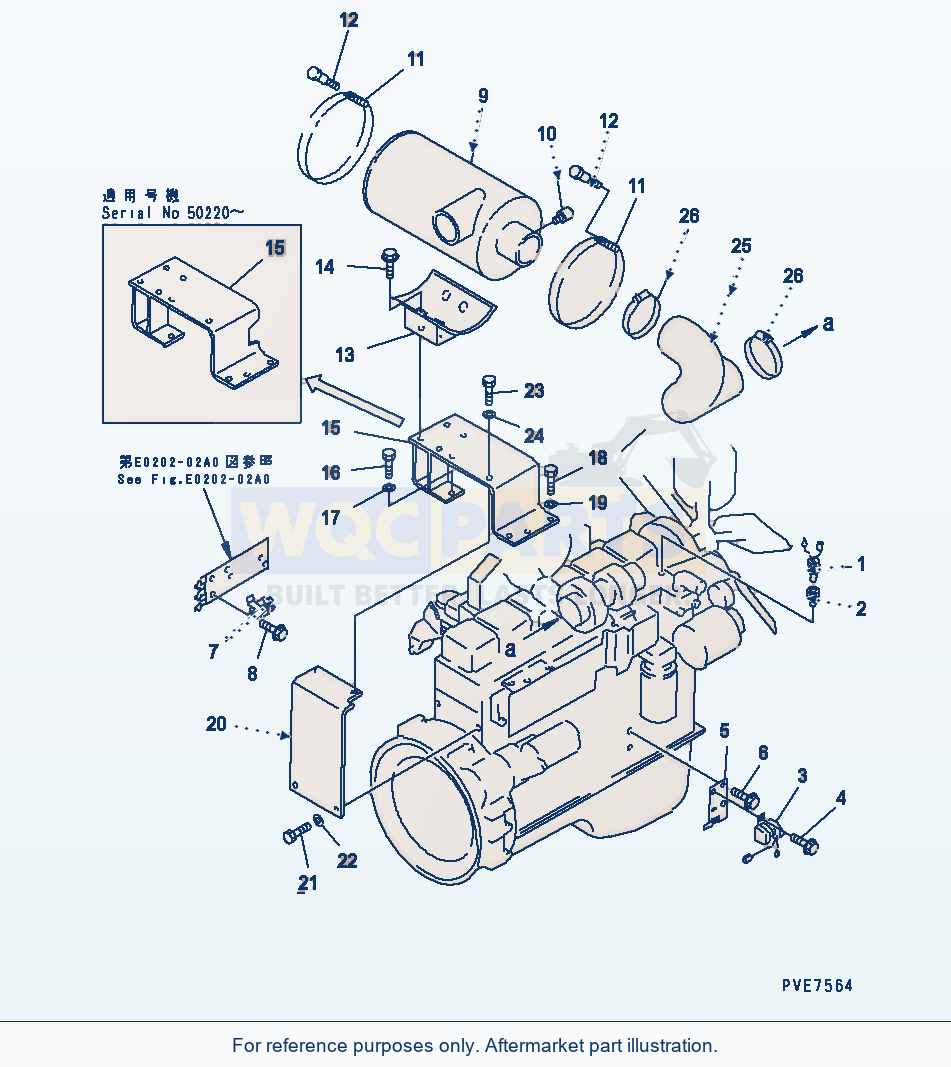

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 39 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | SENSOR,WATER TEMPERATURESN: 50001-UP | 1 | Request quote | |||
| 2 | ADAPTERSN: 50001-UP | 1 | Request quote | |||
| 3 | SWITCH,SAFETY RELAYSN: 50001-UP | 1 | Request quote | |||
| 4 | BOLTSN: 50001-UP | 2 | Request quote | |||
| 5 | BRACKETSN: 50001-UP | 1 | Request quote | |||
| 6 | BOLTSN: 50001-UP | 2 | Request quote | |||
| 7 | SWITCHSN: 50001-UP | 1 | View product ↗ | |||
| 8 | BOLTSN: 50001-UP | 2 | Request quote | |||
| 9 | AIR CLEANER ASS'YSN: 50001-UP | 1 | Request quote | |||
| 9 | BODY,AIR CLEANERSN: 50001-UP | 1 | Request quote | |||
| 9 | VALVESN: 50001-UP | 1 | Request quote | |||
| 9 | ELEMENT ASS'YSN: 50001-UP | 1 | View product ↗ | |||
| 9 | ELEMENT ASS'Y,OUTERSN: 50001-UP | 1 | View product ↗ | |||
| 9 | GASKET,SEALSN: 50001-UP | 1 | Request quote | |||
| 9 | NUT,WINGSN: 50001-UP | 1 | Request quote | |||
| 9 | NUTSN: 50001-UP | 1 | Request quote | |||
| 9 | WASHER,SEALSN: 50001-UP | 1 | View product ↗ | |||
| 10 | INDICATORSN: 50001-UP | 1 | View product ↗ | |||
| 11 | BAND ASS'YSN: 50001-UP | 2 | Request quote | |||
| 11 | PINSN: 50001-UP | 1 | Request quote | |||
| 11 | PIN, WITH THREADSN: 50001-UP | 1 | Request quote | |||
| 12 | BOLTSN: 50001-UP | 2 | Request quote | |||
| 13 | BRACKETSN: 50001-UP | 1 | Request quote | |||
| 14 | BOLTSN: 50001-UP | 4 | View product ↗ | |||
| 15 | BRACKETSN: 50220-UP | 1 | Request quote | |||
| 15 | BRACKETSN: 50001-50219 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 16 | BOLTSN: 50001-UP | 2 | Request quote | |||
| 17 | WASHERSN: 50001-UP | 2 | View product ↗ | |||
| 18 | BOLTSN: 50220-UP | 2 | Request quote | |||
| 18 | BOLTSN: 50001-50219 | 2 | Request quote | |||
| 19 | WASHERSN: 50001-UP | 2 | View product ↗ | |||
| 20 | BRACKETSN: 50001-UP | 1 | Request quote | |||
| 21 | BOLTSN: 50001-UP | 2 | Request quote | |||
| 22 | WASHERSN: 50001-UP | 2 | View product ↗ | |||
| 23 | BOLTSN: 50001-UP | 2 | Request quote | |||
| 24 | WASHERSN: 50001-UP | 2 | View product ↗ | |||
| 25 | HOSESN: 50220-UP | 1 | Request quote | |||
| 25 | HOSESN: 50001-50219 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 26 | CLAMPSN: 50001-UP | 2 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 9 | Description: ELEMENT,OUTER | QTY: 1 | OPTIONS: SN: 50001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 9 | Description: ELEMENT,INNER | QTY: 1 | OPTIONS: SN: 50001-UP
Using Komatsu WA320-3 Engine (Air Cleaner And Engine Related Parts) Parts
Use the Komatsu WA320-3 Engine (Air Cleaner And Engine Related Parts) Parts listing to identify aftermarket replacement parts within the engine related parts section. This wheel loader application is listed for machine serial 50001-UP (FOR CHINA); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 39 listed part occurrences, including sensor,water temperature (reference 232-06-52410), adapter (reference 416-06-21220) and switch,safety relay (reference 203-06-59320). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
