Komatsu WA320-3 Wheel Loader Rear Axle(Differential) (|000137) Parts
Komatsu WA320-3 rear axle(differential) (|000137) parts for machine serial 15035-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: F0[Transmission] / Rear Axle(Differential) (|000137).
Checking current purchase options...

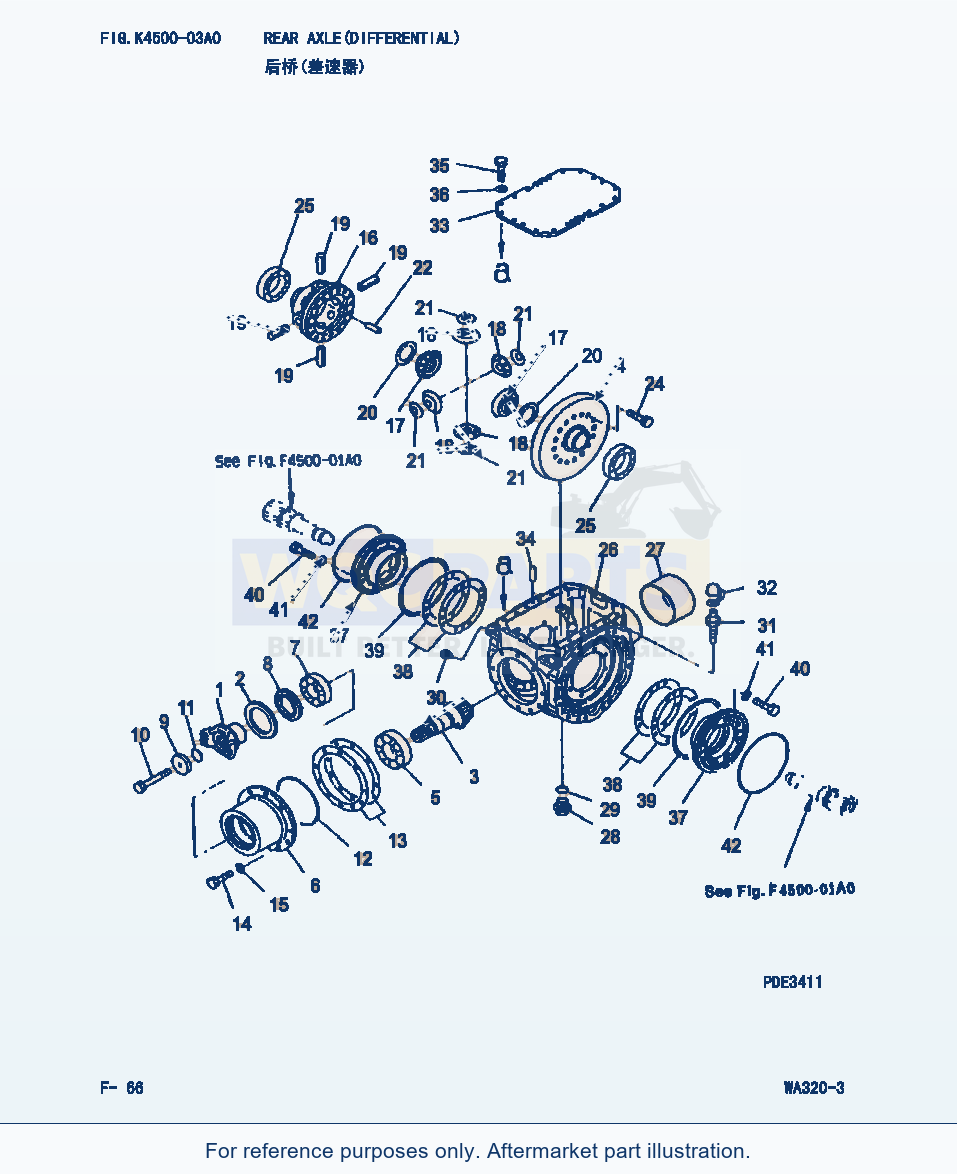

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 46 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | AXLE ASS'Y, REAR THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIG.F4500-01A0 TO 4500-04A0Field_1: 15001- | 1 | Request quote | |||
| 1 | COUPLINGField_1: 15001- | 1 | Request quote | |||
| 2 | PROTECTORField_1: 15001- | 1 | Request quote | |||
| 3 | PINION ASS'YField_1: 15001- | 1 | Request quote | |||
| 5 | BEARINGField_1: 15001- | 1 | View product ↗ | |||
| 6 | CAGE BEARINGField_1: 15001- | 1 | Request quote | |||
| 7 | BEARINGField_1: 15001- | 1 | View product ↗ | |||
| 8 | SEAL OILField_1: 15001- | 1 | View product ↗ | |||
| 9 | HOLDERField_1: 15001- | 1 | Request quote | |||
| 10 | BOLTField_1: 15001- | 1 | Request quote | |||
| 11 | O-RINGField_1: 15001- | 1 | View product ↗ | |||
| 12 | O-RINGField_1: 15001- | 1 | View product ↗ | |||
| 13 | SHIM 0.05 MMField_1: 15001- | 2 | Request quote | |||
| 15 | SHIM 0.2 MMField_1: 15001- | 2 | Request quote | |||
| 16 | SHIM 0.3 MMField_1: 15001- | 2 | Request quote | |||
| 17 | SHIM 0.8 MMField_1: 15001- | 1 | Request quote | |||
| 14 | BOLTField_1: 15001- | 10 | View product ↗ | |||
| 15 | WASHERField_1: 15001- | 10 | View product ↗ | |||
| 17 | GEARField_1: 15001- | 2 | Request quote | |||
| 18 | PINIONField_1: 15001- | 4 | Request quote | |||
| 19 | SHAFTField_1: 15001- | 4 | Request quote | |||
| 20 | WASHERField_1: 15001- | 2 | Request quote | |||
| 21 | WASHERField_1: 15001- | 4 | Request quote | |||
| 22 | PINField_1: 15001- | 4 | View product ↗ | |||
| 27 | WASHERField_1: 15001- | 20 | View product ↗ | |||
| 24 | BOLTField_1: 15001- | 20 | Request quote | |||
| 25 | BEARINGField_1: 15001- | 2 | View product ↗ | |||
| 27 | SLEEVEField_1: 15001- | 1 | Request quote | |||
| 28 | PLUGField_1: 15001- | 1 | View product ↗ | |||
| 29 | O-RINGField_1: 15001- | 1 | Request quote | |||
| 30 | PLUGField_1: 15001- | 2 | View product ↗ | |||
| 31 | BLEEDERField_1: 15001- | 1 | Request quote | |||
| 32 | CAPField_1: 15001- | 1 | View product ↗ | |||
| 33 | COVERField_1: 15001- | 1 | Request quote | |||
| 34 | PIN DOWELField_1: 15001- | 2 | View product ↗ | |||
| 35 | BOLTField_1: 15001- | 20 | Request quote | |||
| 36 | WASHERField_1: 15001- | 20 | View product ↗ | |||
| 37 | CARRIERField_1: 15001- | 2 | Request quote | |||
| 38 | SHIM 0.05 MMField_1: 15001- | 6 | Request quote | |||
| 43 | SHIM 0.2 MMField_1: 15001- | 3 | Request quote | |||
| 44 | SHIM 0.3 MMField_1: 15001- | 3 | Request quote | |||
| 45 | SHIM 0.8 MMField_1: 15001- | 2 | Request quote | |||
| 39 | RINGField_1: 15001- | 2 | View product ↗ | |||
| 40 | BOLTField_1: 15001- | 16 | Request quote | |||
| 41 | WASHERField_1: 15001- | 16 | View product ↗ | |||
| 42 | SEALField_1: 15001- | 2 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 3 | Description: PINION | QTY: 1 | OPTIONS: Field_1: 15001-
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 4 | Description: PINION BEVEL | QTY: 1 | OPTIONS: Field_1: 15001-
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 16 | Description: CARRIER | QTY: 1 | OPTIONS: Field_1: 15001-
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 26 | Description: HOUSING | QTY: 1 | OPTIONS: Field_1: 15001-
Using Komatsu WA320-3 Wheel Loader Rear Axle(Differential) (|000137) Parts
Use the Komatsu WA320-3 Wheel Loader Rear Axle(Differential) (|000137) Parts listing to identify aftermarket replacement parts within the f0[transmission] section. This wheel loader application is listed for machine serial 15035-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 46 listed part occurrences, including axle ass'y, rear this assembly consists of all parts shown in fig.f4500-01a0 to 4500-04a0 (reference 419-23-20012), coupling (reference 419-22-21230) and protector (reference 418-22-21310). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
When selecting transmission or torque-converter parts, compare the assembly description, machine serial break and any configuration notes. Similar-looking diagrams can cover different internal parts and should not be treated as interchangeable.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
