Komatsu WA320-3 Transmission(2Rd And 4Th Clutch) (|000115) Parts
Komatsu WA320-3 transmission(2rd and 4th clutch) (|000115) parts for machine serial 15035-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: F0[Transmission] / Transmission(2Rd And 4Th Clutch) (|000115).
Checking current purchase options...

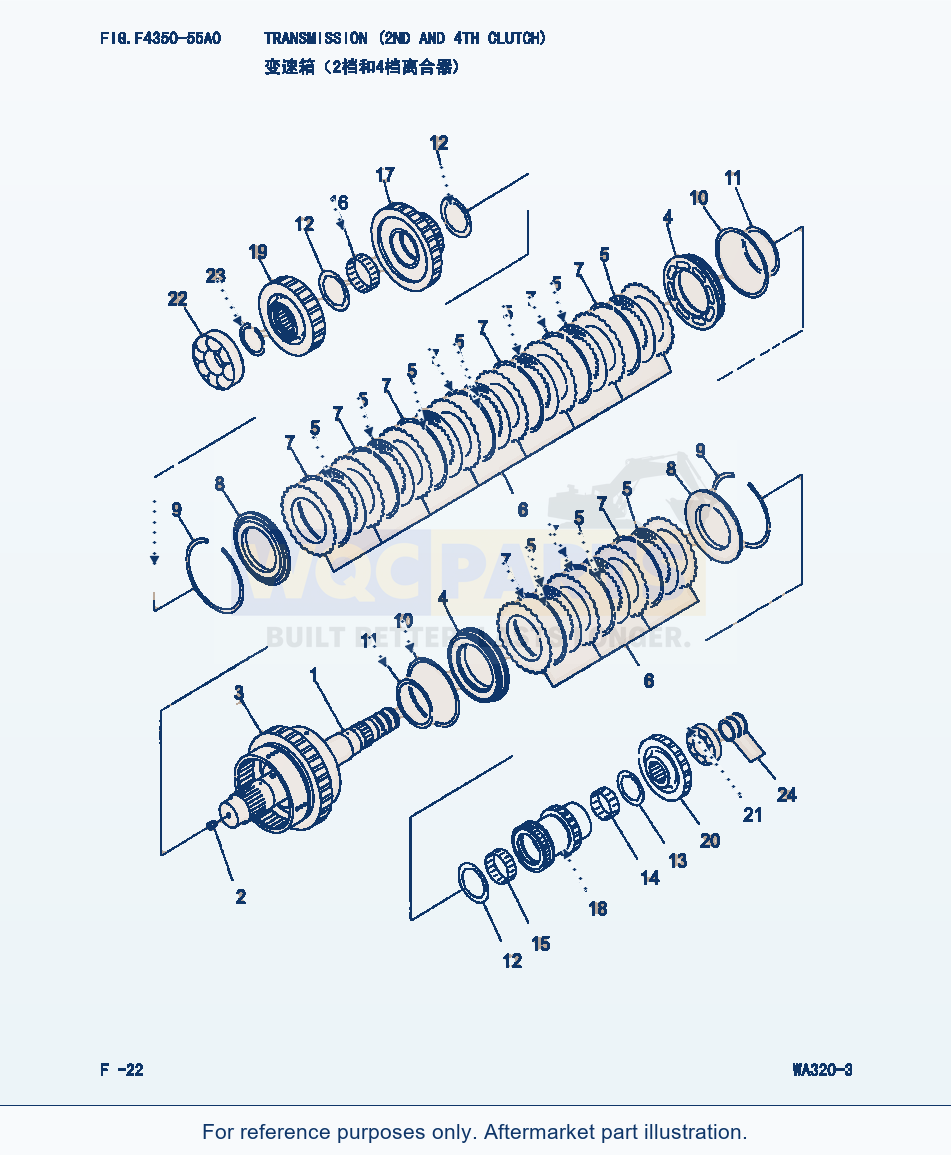

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 25 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | TRANSMISSION ASS'Y THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-68A0Field_1: 15001- | 1 | Request quote | |||
| 2 | CLUTCH ASS'Y,2ND AND 4THField_1: 15001- | 1 | Request quote | |||
| 3 | SHAFT ASS'YField_1: 15001- | 1 | Request quote | |||
| 2 | ORIFICEField_1: 15001- | 1 | Request quote | |||
| 4 | PISTON,2ND AND 4THField_1: 15001- | 2 | Request quote | |||
| 5 | DISCField_1: 15001- | 10 | View product ↗ | |||
| 6 | PLATE,SEPARATEField_1: 15001- | 12 | View product ↗ | |||
| 7 | SPRING,WAVEField_1: 15001- | 10 | View product ↗ | |||
| 8 | PLATE ,ENDField_1: 15001- | 2 | Request quote | |||
| 9 | RING,SNAPField_1: 15001- | 2 | Request quote | |||
| 10 | RING,SEALField_1: 15001- | 2 | View product ↗ | |||
| 11 | RING,SEALField_1: 15001- | 2 | View product ↗ | |||
| 12 | WASHER,THRUSTField_1: 15001- | 3 | View product ↗ | |||
| 13 | WASHER,THRUSTField_1: 15001- | 1 | Request quote | |||
| 14 | BEARING,NEEDLEField_1: 15001- | 1 | Request quote | |||
| 15 | BEARING,NEEDLEField_1: 15001- | 1 | View product ↗ | |||
| 16 | BEARING,NEEDLEField_1: 15001- | - | View product ↗ | |||
| 17 | GEAR,42 TEETH,2NDField_1: 15001- | 1 | Request quote | |||
| 18 | GEAR,22 TEETH,4THField_1: 15001- | 1 | Request quote | |||
| 19 | GEAR,27 TEETH,OUTPUTField_1: 15001- | 1 | Request quote | |||
| 20 | GEAR,31 TEETH,3RDField_1: 15001- | 1 | Request quote | |||
| 21 | BEARINGField_1: 15001- | 1 | View product ↗ | |||
| 22 | BEARINGField_1: 15001- | 1 | Request quote | |||
| 23 | RING,SNAPField_1: 15001- | 1 | Request quote | |||
| 24 | RING,SEAL(K1)Field_1: 15001- | 3 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
SERIAL NO.IN() INDICATES TRANSMISSION SERIAL NO.
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: SHAFT | QTY: 1 | OPTIONS: Field_1: 15001-
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 3 | Description: HOUSING ASS'Y | QTY: 1 | OPTIONS: Field_1: 15001-
Using Komatsu WA320-3 Transmission(2Rd And 4Th Clutch) (|000115) Parts
Use the Komatsu WA320-3 Transmission(2Rd And 4Th Clutch) (|000115) Parts listing to identify aftermarket replacement parts within the f0[transmission] section. This wheel loader application is listed for machine serial 15035-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 25 listed part occurrences, including transmission ass'y these assemblies consists of all parts shown in figs.f4350-51a0 to f4350-68a0 (reference 714-16-20001), clutch ass'y,2nd and 4th (reference 714-16-22030) and shaft ass'y (reference 714-16-22130). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
When selecting transmission or torque-converter parts, compare the assembly description, machine serial break and any configuration notes. Similar-looking diagrams can cover different internal parts and should not be treated as interchangeable.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
