Komatsu WA320-3 Brake Control(Brake Accumulator) (|000225) Parts
Komatsu WA320-3 brake control(brake accumulator) (|000225) parts for machine serial 15035-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Ko[Operator'S Compartment And Control System] / Brake Control(Brake Accumulator) (|000225).
Checking current purchase options...

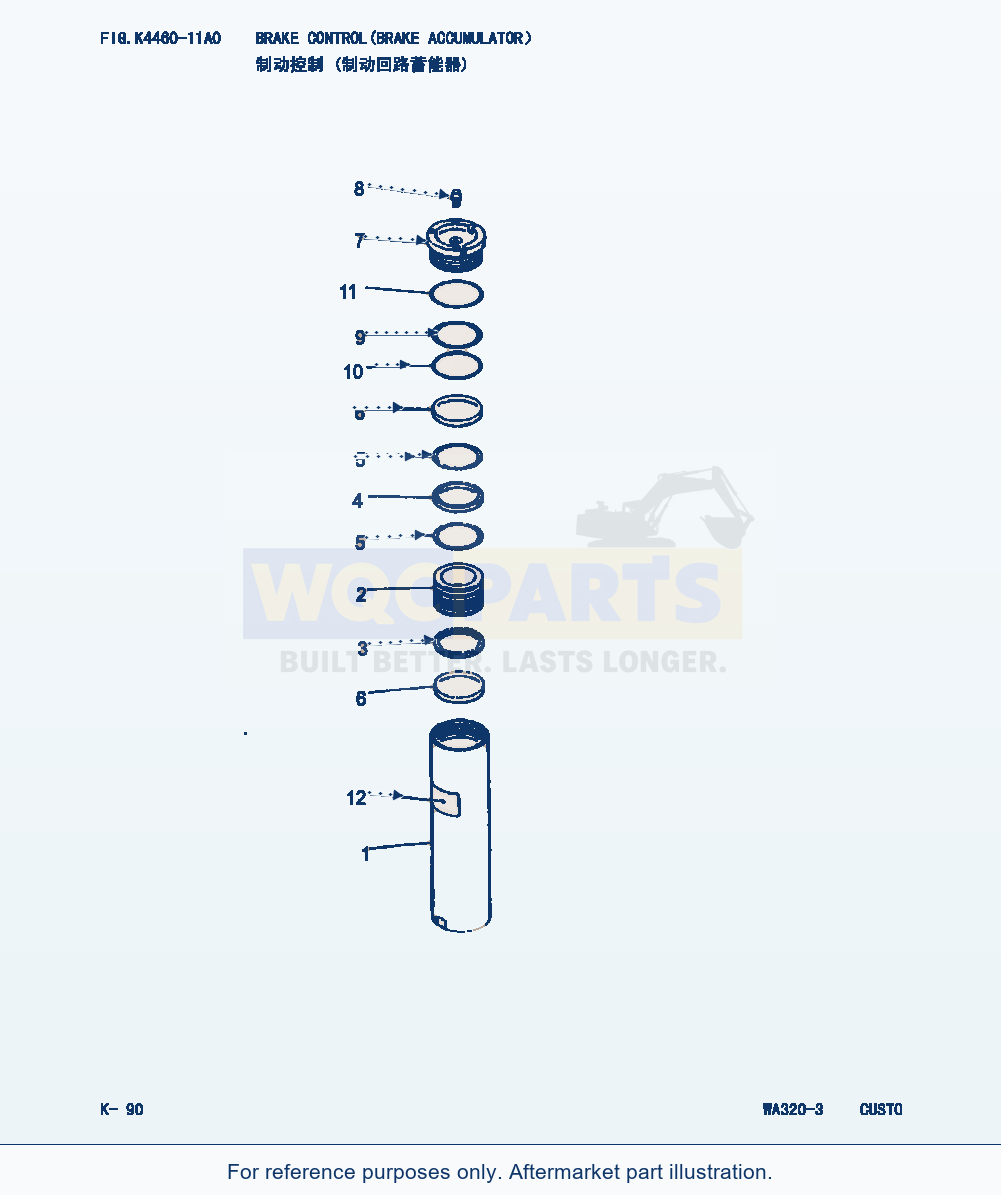

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 13 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | ACCUMULATOR,ASS'YField_1: 15001- | 2 | Request quote | |||
| 1 | CYLINDERField_1: 15001- | 1 | Request quote | |||
| 2 | PISTONField_1: 15001- | 1 | Request quote | |||
| 3 | SEALField_1: 15001- | 1 | View product ↗ | |||
| 4 | SEALField_1: 15001- | 1 | Request quote | |||
| 5 | RING,BACK-UPField_1: 15001- | 2 | View product ↗ | |||
| 6 | RING,WEARField_1: 15001- | 2 | View product ↗ | |||
| 7 | COVER,TOPField_1: 15001- | 1 | Request quote | |||
| 8 | VALVEField_1: 15001- | 1 | Request quote | |||
| 9 | RING,BACK-UPField_1: 15001- | 1 | View product ↗ | |||
| 10 | O-RINGField_1: 15001- | 1 | View product ↗ | |||
| 11 | O-RINGField_1: 15001- | 1 | View product ↗ | |||
| 12 | PLATE,SPCIFICATIONField_1: 15001- | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
