Komatsu WA320-3 Brake Control(Tandem Brake Valve) (|000216) Parts

Komatsu WA320-3 brake control(tandem brake valve) (|000216) parts for machine serial 15035-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: Ko[Operator'S Compartment And Control System] / Brake Control(Tandem Brake Valve) (|000216).

WA320-3Machine serial 15035-UP40 part occurrences

Checking current purchase options...

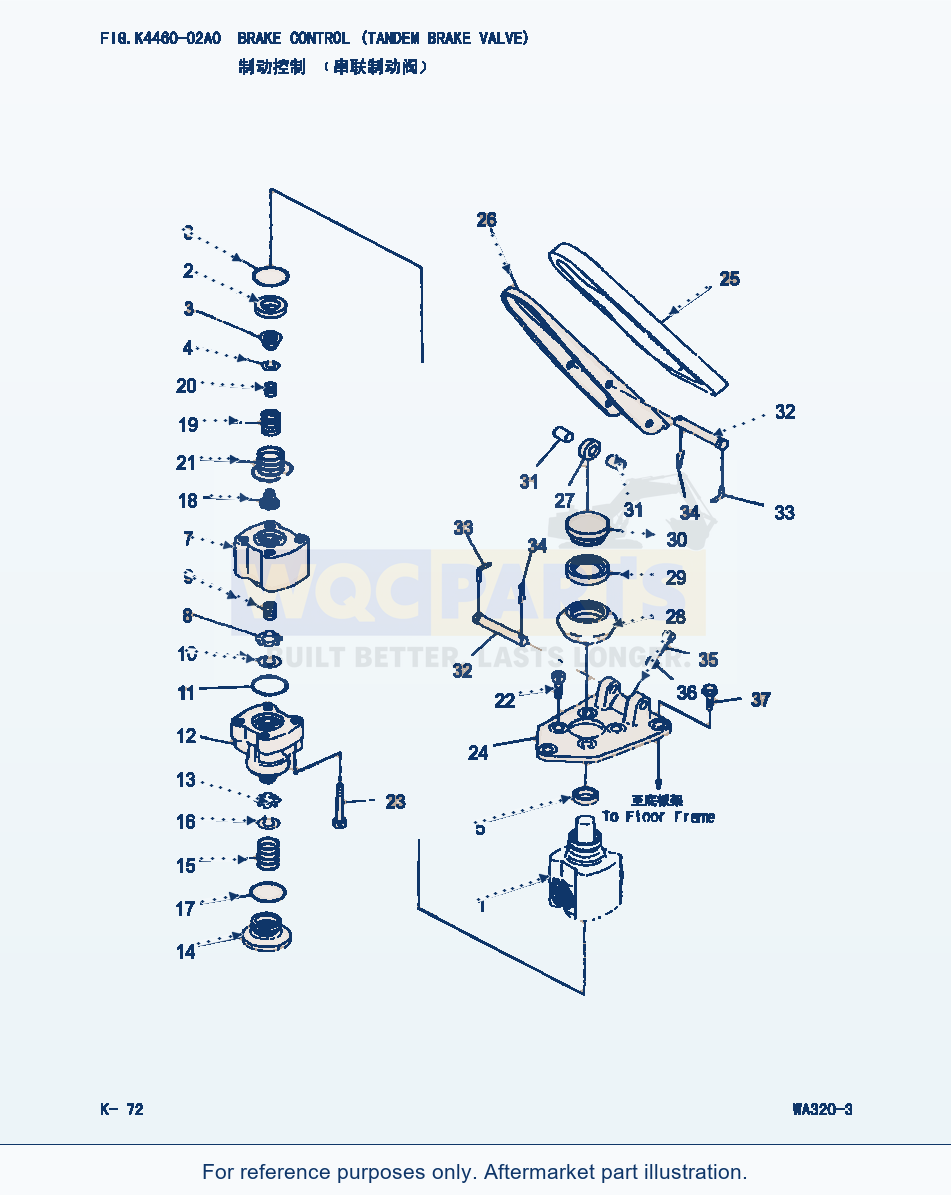

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 40 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
0	VALVE ASS'Y,TANDEMField_1: 15001-	1	Request quote
1	FLANGE,ASS'YField_1: 15001-	1	Request quote
2	RETAINERField_1: 15001-	1	Request quote
3	RETAINERField_1: 15001-	1	Request quote
4	RING,SNAPField_1: 15001-	1	Request quote
5	SEAL,OILField_1: 15001-	1	View product ↗
6	O-RINGField_1: 15001-	1	Request quote
7	CYLINDER ASS'YField_1: 15001-	1	Request quote
8	RETAINERField_1: 15001-	1	Request quote
9	SPRINGField_1: 15001-	1	Request quote
10	RING,SNAPField_1: 15001-	1	Request quote
11	O-RINGField_1: 15001-	1	Request quote
12	CYLINDER ASS'YField_1: 15001-	1	Request quote
13	RETAINERField_1: 15001-	1	Request quote
14	NUT,ENDField_1: 15001-	1	Request quote
15	SPRINGField_1: 15001-	1	Request quote
16	RING,SNAPField_1: 15001-	1	Request quote
17	O-RINGField_1: 15001-	1	Request quote
18	HOLDERField_1: 15001-	1	Request quote
19	SPRINGField_1: 15001-	1	Request quote
20	SPRINGField_1: 15001-	1	Request quote
21	SPRINGField_1: 15001-	1	Request quote
22	BOLTField_1: 15001-	4	Request quote
23	BOLTField_1: 15001-	4	Request quote
24	BRACKET ASS'YField_1: 15001-	1	Request quote
25	BUSHINGField_1: 15001-	2	Request quote
25	PAD,PEDALField_1: 15001-	1	Request quote
26	PLATE,PEDALField_1: 15001-	1	Request quote
27	ROLLER ASS'YField_1: 15001-	1	Request quote
29	BUSHINGField_1: 15001-	1	Request quote
28	BOOTField_1: 15001-	1	Request quote
29	STOPPER,PEDALField_1: 15001-	1	Request quote
30	SEATField_1: 15001-	1	View product ↗
31	COLLARField_1: 15001-	2	Request quote
32	PINField_1: 15001-	2	Request quote
33	PINField_1: 15001-	2	Request quote
34	PIN,SNAPField_1: 15001-	2	Request quote
35	BOLTField_1: 15001-	1	Request quote
36	NUTField_1: 15001-	1	Request quote
37	BOLTField_1: 15001-	3	View product ↗

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
