Komatsu WA320-3 Operator'S Cab(Electrical Parts) (|000181) Parts
Komatsu WA320-3 operator's cab(electrical parts) (|000181) parts for machine serial 15035-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Ko[Operator'S Compartment And Control System] / Operator'S Cab(Electrical Parts) (|000181).
Checking current purchase options...

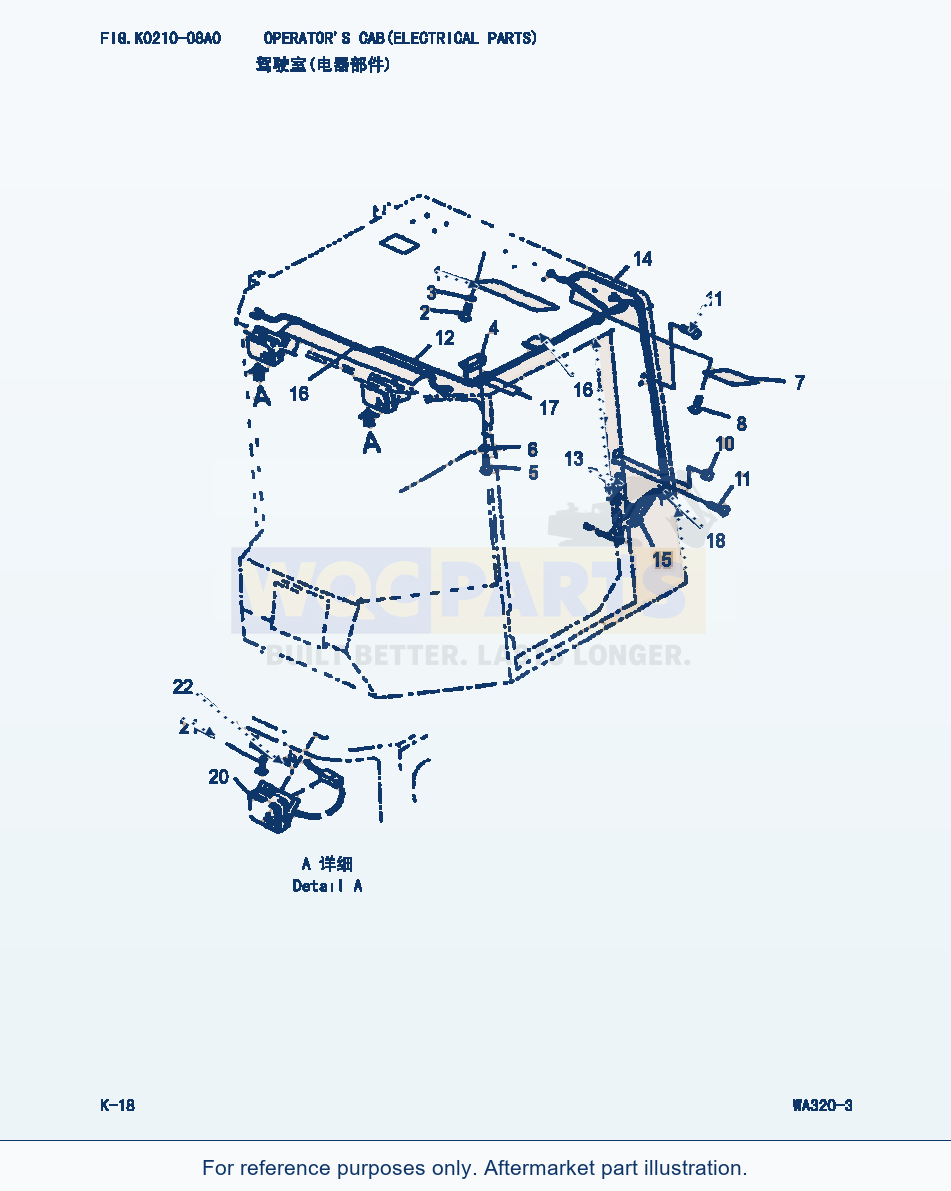

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 22 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | CAB ASS'YField_1: 15018- | 1 | Request quote | |||
| 1 | CAB ASS'YField_1: 15001-15017 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 1 | PLATEField_1: 15001- | 1 | Request quote | |||
| 2 | SCREWField_1: 15001- | 6 | Request quote | |||
| 4 | LAMP ROOMField_1: 15001- | 1 | Request quote | |||
| 5 | SCREWField_1: 15001- | 2 | Request quote | |||
| 6 | WASHERField_1: 15001- | 2 | View product ↗ | |||
| 7 | PLATEField_1: 15001- | 2 | Request quote | |||
| 8 | SCREWField_1: 15001- | 8 | Request quote | |||
| 10 | CAPField_1: 15001- | 1 | Request quote | |||
| 11 | SCREWField_1: 15001- | 3 | Request quote | |||
| 12 | WIRE ASS'Y FRONTField_1: 15001- | 1 | Request quote | |||
| 13 | CONNECTORField_1: 15001- | 1 | Request quote | |||
| 14 | WIRE ASS'Y REARField_1: 15001- | 1 | Request quote | |||
| 15 | CONNECTORField_1: 15001- | 1 | Request quote | |||
| 16 | CLIPField_1: 15001- | 1 | Request quote | |||
| 17 | GROMMETField_1: 15001- | 3 | View product ↗ | |||
| 18 | GROMMETField_1: 15001- | 1 | Request quote | |||
| 19 | BOLTField_1: 15001- | 2 | View product ↗ | |||
| 20 | LAMPField_1: 15001- | 2 | Request quote | |||
| 21 | BOLTField_1: 15001- | 4 | Request quote | |||
| 22 | PLATEField_1: 15001- | 2 | Request quote |
