Komatsu WA320-3 Wheel Loader Operator Seat (Grammer) (|000168) Parts

Komatsu WA320-3 operator seat (grammer) (|000168) parts for machine serial 15035-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: Ko[Operator'S Compartment And Control System] / Operator Seat (Grammer) (|000168).

WA320-3Machine serial 15035-UP48 part occurrences

Checking current purchase options...

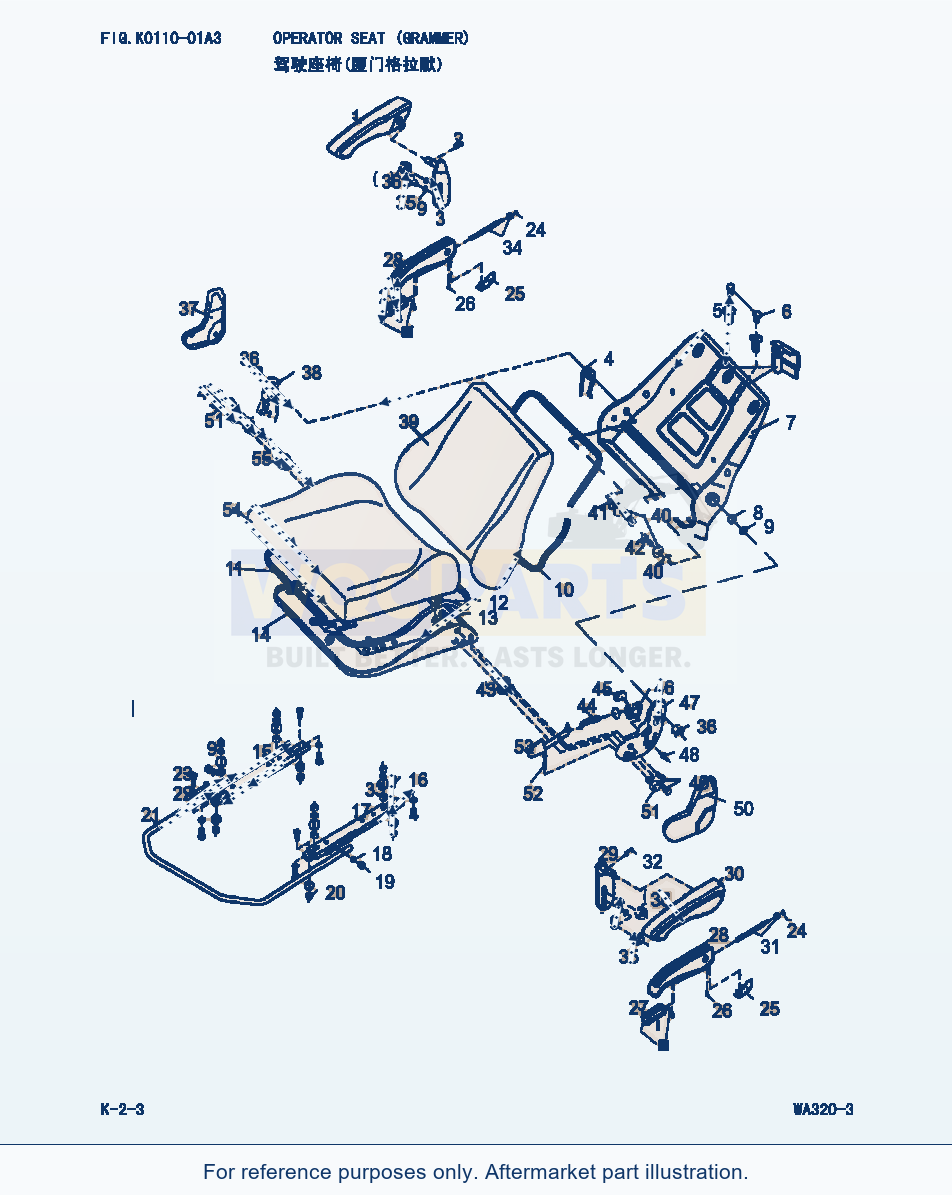

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 48 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
0	OPERATOR SEAT ASSYField_1: 15001-	1	Request quote
1	ARMREST CUSHION RH.ASSYField_1: 15001-	1	Request quote
1	ARMREST CUSHION RH.Field_1: 15001-	1	Request quote
2	SCREWField_1: 15001-	1	Request quote
3	BRACKET RH.Field_1: 15001-	1	Request quote
5	BACKREST ASSYField_1: 15001-	1	Request quote
4	SPRINGField_1: 15001-	1	Request quote
5	PROTECTORField_1: 15001-	2	Request quote
6	PLASTIC CAPField_1: 15001-	2	Request quote
7	BACKRESTField_1: 15001-	1	Request quote
8	BUSHField_1: 15001-	1	Request quote
9	WASHERField_1: 15001-	14	Request quote
10	U-PROFILEField_1: 15001-	2	Request quote
13	SEAT PLATE ASSYField_1: 15001-	1	Request quote
11	U-PROFILEField_1: 15001-	1	Request quote
12	NUTField_1: 15001-	2	Request quote
13	HEXAGON NUTField_1: 15001-	4	Request quote
14	PLATEField_1: 15001-	1	Request quote
18	SEAT ADJUST ASSYField_1: 15001-	1	Request quote
15	RAIL RH.Field_1: 15001-	1	Request quote
16	CYLINDRIC HEAD BOLTField_1: 15001-	3	Request quote
17	ROLLING RAIL LH.Field_1: 15001-	1	Request quote
18	WASHERField_1: 15001-	2	Request quote
19	NUTField_1: 15001-	2	Request quote
20	NUTField_1: 15001-	8	Request quote
21	HANDLEField_1: 15001-	1	Request quote
22	STOPPERField_1: 15001-	1	Request quote
23	CYLINDRIC HEAD SCREWField_1: 15001-	1	Request quote
28	ARMREST CUSHION LH ASSYField_1: 15001-	1	Request quote
24	LOCK WASHERField_1: 15001-	2	Request quote
25	COVERField_1: 15001-	2	Request quote
26	SELF TAPPING SCREWField_1: 15001-	6	Request quote
27	ROLLERField_1: 15001-	2	Request quote
28	ARMREST FRAMEField_1: 15001-	2	Request quote
29	BRACKET LH.Field_1: 15001-	1	Request quote
30	ARMREST CUSHION LH.Field_1: 15001-	1	Request quote
31	SPINDLE LH.Field_1: 15001-	1	Request quote
32	SCREWField_1: 15001-	1	Request quote
33	RINGField_1: 15001-	4	Request quote
34	SPINDLE RH.Field_1: 15001-	1	Request quote
35	BOLTField_1: 15001-	2	Request quote
36	SELF-LOCKING NUTField_1: 15001-	2	Request quote
37	HINGE COVER RH.Field_1: 15001-	1	Request quote
38	HINGE RH.Field_1: 15001-	1	Request quote
39	BACKREST CUSHIONField_1: 15001-	1	Request quote
40	WASHERField_1: 15001-	3	Request quote
41	BUSHField_1: 15001-	1	Request quote
42	BOLTField_1: 15001-	2	Request quote

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.

Assembly notes

Catalog sitemap

Using Komatsu WA320-3 Wheel Loader Operator Seat (Grammer) (|000168) Parts

Use the Komatsu WA320-3 Wheel Loader Operator Seat (Grammer) (|000168) Parts listing to identify aftermarket replacement parts within the ko[operator's compartment and control system] section. This wheel loader application is listed for machine serial 15035-UP; the diagram and parts table retain the selected configuration and its source notes.

The parts table contains 48 listed part occurrences, including operator seat assy (reference 41757D1510), armrest cushion rh.assy (reference GJ2049137) and armrest cushion rh. (reference GJ1017003). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.

For operator-compartment and control parts, compare the cab arrangement and equipment options identified on the assembly page. Retain any handedness and connection details when selecting a part or requesting assistance.

Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
