Komatsu WA320-3 Transmission Control Switch (|000214) Parts
Komatsu WA320-3 transmission control switch (|000214) parts for machine serial 15035-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Ko[Operator'S Compartment And Control System] / Transmission Control Switch (|000214).
Checking current purchase options...

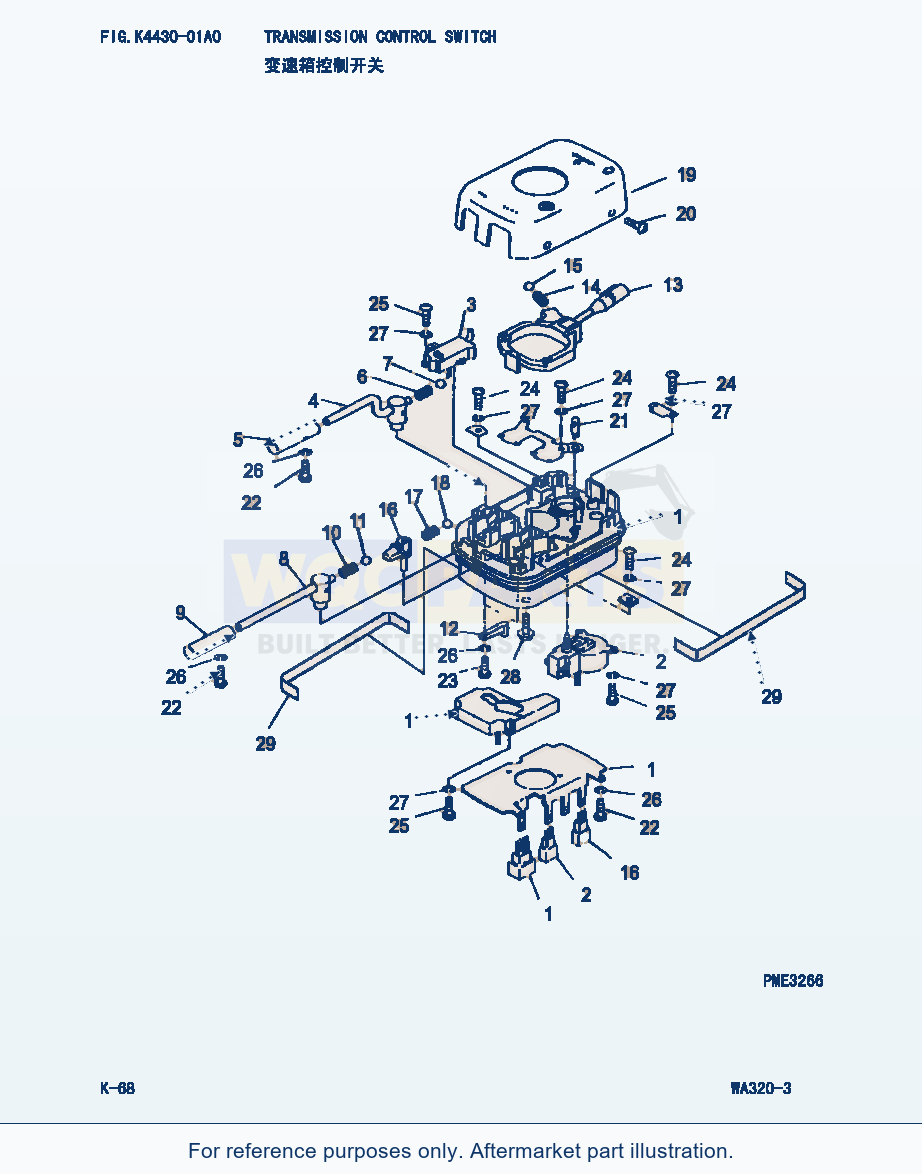

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 32 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | SWITCH ASS'Y,TRANSMISSION CONTROLField_1: 15001- | 1 | Request quote | |||
| 1 | SWITCH TRANSMISSIONField_1: 15001- | 1 | Request quote | |||
| 2 | SWITCH LAMPField_1: 15001- | 1 | Request quote | |||
| 3 | SWITCH HAZARDField_1: 15001- | 1 | Request quote | |||
| 4 | LEVER ASS'Y F.RField_1: 15001- | 1 | Request quote | |||
| 4 | LEVER F.RField_1: 15001- | 1 | Request quote | |||
| 5 | GRIPField_1: 15001- | 1 | Request quote | |||
| 6 | SPRINGField_1: 15001- | 1 | Request quote | |||
| 7 | BALLField_1: 15001- | 1 | Request quote | |||
| 9 | LEVER ASS'Y TRANSMISSIONField_1: 15001- | 1 | Request quote | |||
| 8 | LEVER SPEEDField_1: 15001- | 1 | Request quote | |||
| 9 | GRIPField_1: 15001- | 1 | Request quote | |||
| 10 | SPRINGField_1: 15001- | 1 | Request quote | |||
| 11 | BALLField_1: 15001- | 1 | Request quote | |||
| 12 | ARM MAGNETField_1: 15001- | 2 | Request quote | |||
| 13 | LEVER ASS'Y,LAMP AND TURN SIGNALField_1: 15001- | 1 | Request quote | |||
| 14 | SPRINGField_1: 15001- | 1 | Request quote | |||
| 15 | BALLField_1: 15001- | 1 | Request quote | |||
| 16 | KNOR ASS'Y LOCKField_1: 15001- | 1 | Request quote | |||
| 17 | SPRINGField_1: 15001- | 1 | Request quote | |||
| 18 | BALLField_1: 15001- | 1 | Request quote | |||
| 19 | COVERField_1: 15001- | 1 | Request quote | |||
| 20 | SCREWField_1: 15001- | 4 | Request quote | |||
| 21 | BULB.1.4WField_1: 15001- | 1 | Request quote | |||
| 22 | SCREWField_1: 15001- | 6 | Request quote | |||
| 23 | SCREWField_1: 15001- | 2 | Request quote | |||
| 24 | SCREWField_1: 15001- | 10 | Request quote | |||
| 25 | SCREWField_1: 15001- | 11 | Request quote | |||
| 26 | WASHER SPRINGField_1: 15001- | 8 | Request quote | |||
| 27 | WASHER SPRINGField_1: 15001- | 21 | View product ↗ | |||
| 28 | BOLTField_1: 15001- | 3 | Request quote | |||
| 29 | CUSHIONField_1: 15001- | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA320-3 Transmission Control Switch (|000214) Parts
Use the Komatsu WA320-3 Transmission Control Switch (|000214) Parts listing to identify aftermarket replacement parts within the ko[operator's compartment and control system] section. This wheel loader application is listed for machine serial 15035-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 32 listed part occurrences, including switch ass'y,transmission control (reference 417-43-26122), switch transmission (reference 417-43-26210) and switch lamp (reference 417-43-26221). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For operator-compartment and control parts, compare the cab arrangement and equipment options identified on the assembly page. Retain any handedness and connection details when selecting a part or requesting assistance.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
