Komatsu WA320-3 Marks And Plates(Chinese) (|000264) Parts
Komatsu WA320-3 marks and plates(chinese) (|000264) parts for machine serial 15035-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Uo[Marks And Plates] / Marks And Plates(Chinese) (|000264).
Checking current purchase options...

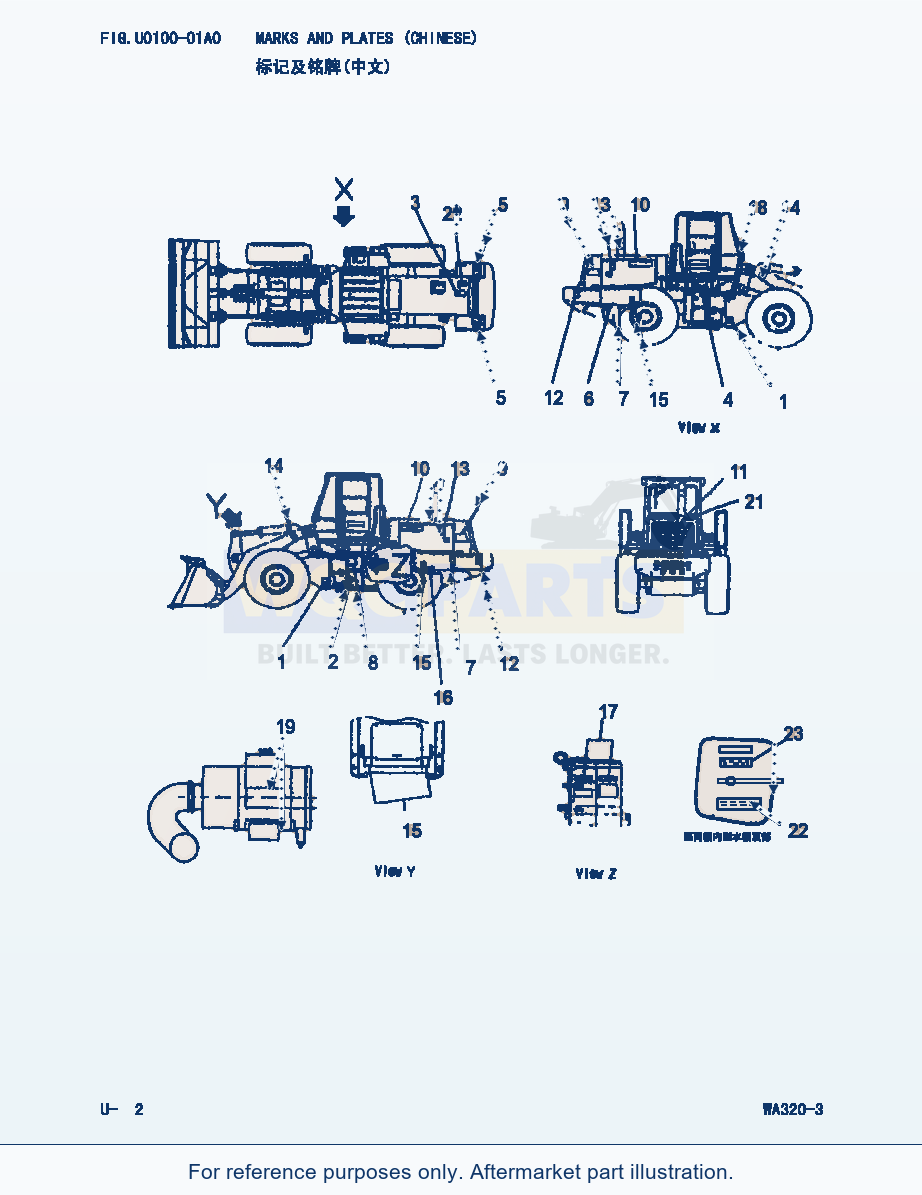

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 19 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | PLATE KITField_1: 15001- | 1 | Request quote | |||
| 8 | CHART.OILField_1: 15001- | 1 | Request quote | |||
| 9 | PLATE MARK MAX ADVANCEField_1: 15001- | - | Request quote | |||
| 10 | PLATE.MARK.WA320(LH)Field_1: 15001- | 1 | Request quote | |||
| 12 | PLATE.MARK.WA320(RH)Field_1: 15001- | 1 | Request quote | |||
| 11 | PLATE.MARK.KOMATSUField_1: 15001- | 1 | Request quote | |||
| 12 | PLATE.CAUTION.KEEP A SAFE DISTANCEField_1: 15001- | 2 | Request quote | |||
| 13 | PLATE.SAFETY.FANField_1: 15001- | 2 | Request quote | |||
| 14 | PLATE.CAUTION.KEEP OUTField_1: 15015- | - | Request quote | |||
| 17 | Field_1: 15001-15014 | The part specified in the line above can be used instead of this part | 2 | Request quote | |||
| 15 | PLATE.MARK.HANDLING.LIFT HEREField_1: 15001- | 4 | Request quote | |||
| 16 | PLATE.INSTRUCTION.REAR AXLE PIVOT PINField_1: 15001- | 1 | Request quote | |||
| 17 | PLATE ACCUMULATORField_1: 15001- | 1 | Request quote | |||
| 18 | PLATE.NAMEField_1: 15001- | 1 | Request quote | |||
| 19 | PLATE.AIR CLEANERField_1: 15001- | 1 | Request quote | |||
| 20 | SCREWField_1: 15001- | 4 | Request quote | |||
| 21 | PLATEField_1: 15001- | 1 | Request quote | |||
| 22 | PLATEField_1: 15001- | 2 | Request quote | |||
| 23 | PLATEField_1: 15001- | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: PLATE.SAFETY.KEEP OUT | QTY: 2 | OPTIONS: Field_1: 15001-
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 2 | Description: PLATE.SAFETY.SAFETY BAR | QTY: 1 | OPTIONS: Field_1: 15001-
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 3 | Description: PLATE.SAFETY.RADIATOR CAP | QTY: 1 | OPTIONS: Field_1: 15001-
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 4 | Description: PLATE.SAFETY.HYDRAULIC TANK CAP | QTY: 1 | OPTIONS: Field_1: 15001-
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 5 | Description: PLATE.SAFETY.BATTERY CABLE | QTY: 2 | OPTIONS: Field_1: 15001-
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 6 | Description: PLATE.INSTRUCTION.FUEL | QTY: 1 | OPTIONS: Field_1: 15001-
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 7 | Description: PLATE.INSTRUCTION.ENGINE OIL DRAIN | QTY: 1 | OPTIONS: Field_1: 15001-
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 8 | Description: PLATE.RADIATOR WATER DRAIN | QTY: 1 | OPTIONS: Field_1: 15001-
Using Komatsu WA320-3 Marks And Plates(Chinese) (|000264) Parts
Use the Komatsu WA320-3 Marks And Plates(Chinese) (|000264) Parts listing to identify aftermarket replacement parts within the uo[marks and plates] section. This wheel loader application is listed for machine serial 15035-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 19 listed part occurrences, including plate kit (reference 426-932-1570), chart.oil (reference 419-V04-D910) and plate mark max advance (reference 419-93-D1780). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For identification and caution plates, compare the precise plate description and listed application. Do not substitute a plate solely because its shape or mounting position looks similar.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
