Komatsu WA320-3CS Wheel Loader Front Axle (Axle Housing) Parts
Komatsu WA320-3CS front axle (axle housing) parts for machine serial 50001-UP (CUSTOM SPEC.). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Transmission / Front Axle (Axle Housing).
Checking current purchase options...

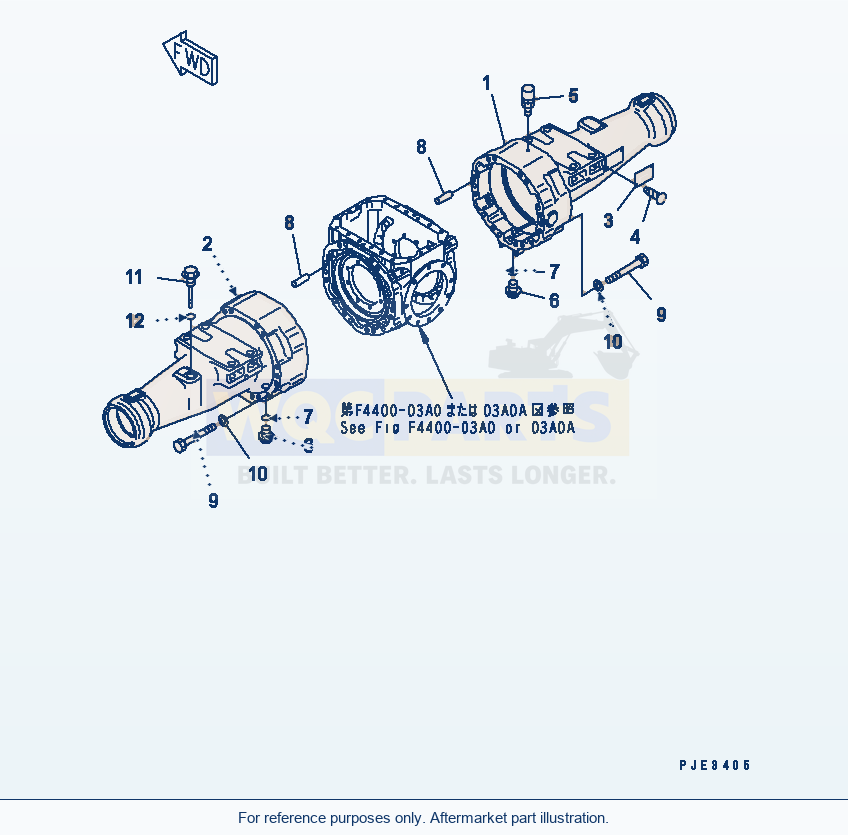

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 17 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | AXLE ASS'Y,FRONTSN: 54457-UP | 1 | Request quote | |||
| 2 | AXLE ASS'Y,FRONTSN: 54115-54456 | 1 | Request quote | |||
| 3 | AXLE ASS'Y,FRONTSN: 50001-54114 | 1 | Request quote | |||
| 1 | HOUSING,R.H.SN: .-UP | 1 | Request quote | |||
| 1 | HOUSING,R.H.SN: 50001-. | The part specified in the DESCRIPTION column can be used instead of this part if it is used as a set. | 1 | Request quote | |||
| 2 | HOUSING,L.H.SN: .-UP | 1 | Request quote | |||
| 2 | HOUSING,L.H.SN: 50001-. | The part specified in the DESCRIPTION column can be used instead of this part if it is used as a set. | 1 | Request quote | |||
| 3 | PLATE, NAME,(LIMITED SUPPLY)SN: 50001-UP | 1 | Request quote | |||
| 4 | SCREWSN: 50001-UP | 4 | Request quote | |||
| 5 | BREATHERSN: 50001-UP | 1 | View product ↗ | |||
| 6 | PLUGSN: 50001-UP | 2 | Request quote | |||
| 7 | O-RINGSN: 50001-UP | 2 | View product ↗ | |||
| 8 | PIN,DOWELSN: 50001-UP | 4 | View product ↗ | |||
| 9 | BOLTSN: 50001-UP | 32 | Request quote | |||
| 10 | WASHERSN: 50001-UP | 32 | View product ↗ | |||
| 11 | PLUGSN: 50001-UP | 1 | Request quote | |||
| 12 | O-RINGSN: 50001-UP | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4400-01A0 TO F4400-04A0.
(419-22-23410,419-22-23420,
419-22-22741(2))
(419-22-23420,419-22-23410,
419-22-22741(2))
Using Komatsu WA320-3CS Wheel Loader Front Axle (Axle Housing) Parts
Use the Komatsu WA320-3CS Wheel Loader Front Axle (Axle Housing) Parts listing to identify aftermarket replacement parts within the transmission section. This wheel loader application is listed for machine serial 50001-UP (CUSTOM SPEC.); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 17 listed part occurrences, including axle ass'y,front (reference 419-22-20013), axle ass'y,front (reference 419-22-20012) and axle ass'y,front (reference 419-22-20011). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
When selecting transmission or torque-converter parts, compare the assembly description, machine serial break and any configuration notes. Similar-looking diagrams can cover different internal parts and should not be treated as interchangeable.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
