Komatsu WA320-3L Wheel Loader Rear Lights Parts
Komatsu WA320-3L rear lights parts for machine serial A30001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Electrical System / Rear Lights.
Checking current purchase options...

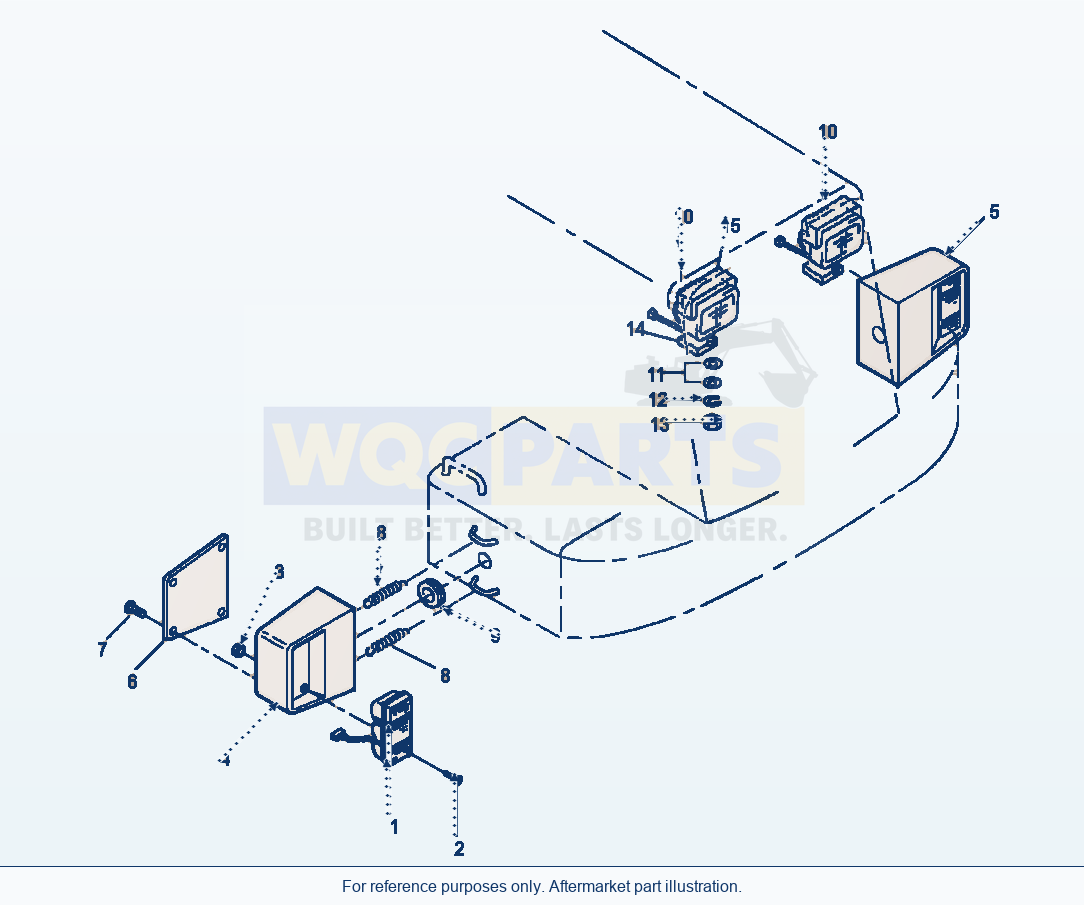

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 24 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | LIGHT ASSEMBLY, COMBINATIONSN: A30001--UP | 1 | Request quote | |||
| 1 | BULB, 25/10WSN: A30001--UP | 1 | View product ↗ | |||
| 2 | BULB, 25WSN: A30001--UP | 2 | View product ↗ | |||
| 3 | LENSSN: A30001--UP | 1 | Request quote | |||
| 4 | CONNECTORSN: A30001--UP | 1 | Request quote | |||
| 2 | SCREW, MOUNT LENSSN: A30001--UP | 4 | Request quote | |||
| 3 | NUT, MOUNT LENSSN: A30001--UP | 4 | Request quote | |||
| 4 | BRACKET, LH - COMBINATION LIGHTSN: A30001--UP | 1 | Request quote | |||
| 8 | BOLT, MOUNT COMBINATION LIGHT BRACKETSN: A30001--UP | 4 | View product ↗ | |||
| 5 | BRACKET, RH - COMBINATION LIGHTSN: A30001--UP | 1 | Request quote | |||
| 10 | BOLT, MOUNT COMBINATION LIGHT BRACKETSN: A30001--UP | 4 | View product ↗ | |||
| 6 | PLATE, BACKINGSN: A30001--UP | 2 | Request quote | |||
| 7 | BOLT, MOUNT BACKING PLATESN: A30001--UP | 8 | Request quote | |||
| 8 | SPRINGSN: A30001--UP | 4 | Request quote | |||
| 9 | GROMMETSN: A30001--UP | 4 | Request quote | |||
| 10 | LIGHT ASSEMBLY, REAR WORKSN: A30001--UP | 2 | Request quote | |||
| 16 | BULB, 70WSN: A30001--UP | 1 | Request quote | |||
| 17 | LENSSN: A30001--UP | 1 | Request quote | |||
| 18 | CONNECTORSN: A30001--UP | 1 | Request quote | |||
| 11 | WASHER, FLATSN: A30001--UP | 2 | View product ↗ | |||
| 12 | WASHER, LOCKSN: A30001--UP | 1 | Request quote | |||
| 13 | NUTSN: A30001--UP | 1 | Request quote | |||
| 14 | SHEETSN: A30001--UP | 2 | Request quote | |||
| 15 | SHEETSN: A30001--UP | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA320-3L Wheel Loader Rear Lights Parts
Use the Komatsu WA320-3L Wheel Loader Rear Lights Parts listing to identify aftermarket replacement parts within the electrical system section. This wheel loader application is listed for machine serial A30001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 24 listed part occurrences, including light assembly, combination (reference 421-06-23210), bulb, 25/10w (reference 08104-12420) and bulb, 25w (reference 08105-12420). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For electrical parts, compare the component reference and any voltage, connector or equipment-option notes shown in the listing. A similar description or shape alone is not a compatibility check.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
