Komatsu WA320-3L Wheel Loader Engine Hood And Mounting Parts
Komatsu WA320-3L engine hood and mounting parts for machine serial A30001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Guard / Engine Hood And Mounting Parts.
Checking current purchase options...

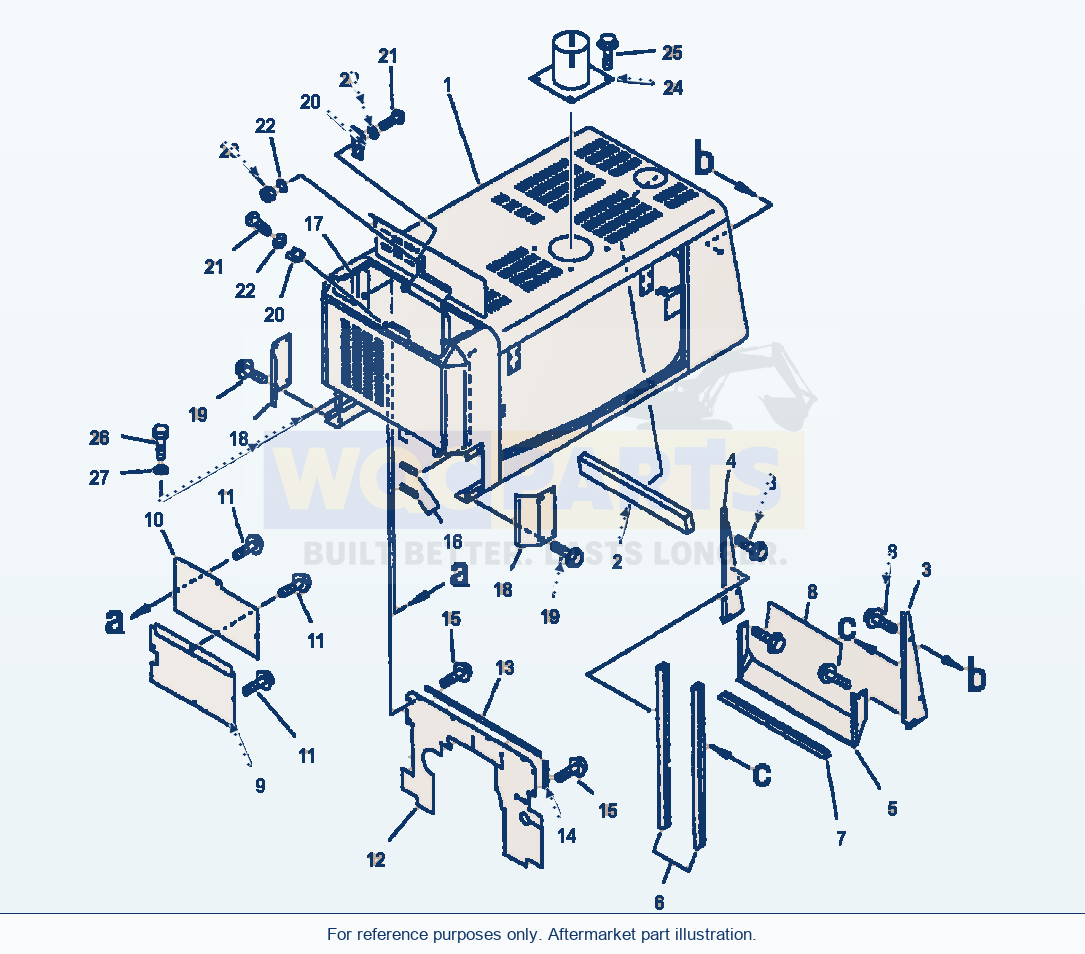

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 29 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | HOOD, ENGINESN: A30001--UP | 1 | Request quote | |||
| 2 | INSULATORSN: A30001--UP | 1 | Request quote | |||
| 3 | COVER, L.H.SN: A30001--UPF1 | 1 | Request quote | |||
| 3 | COVER, L.H.SN: A30001--UPF2 | 1 | Request quote | |||
| 4 | COVER, R.H.SN: A30001--UPF1 | 1 | Request quote | |||
| 4 | COVER, R.H.SN: A30001--UPF2 | 1 | Request quote | |||
| 5 | COVERSN: A30001--UP | 1 | Request quote | |||
| 6 | SEAL, DOORSN: A30001--UP | 2 | Request quote | |||
| 7 | SEAL, DOORSN: A30001--UP | 1 | Request quote | |||
| 8 | BOLTSN: A30001--UP | 8 | Request quote | |||
| 9 | COVERSN: A30001--UP | 1 | Request quote | |||
| 10 | COVERSN: A30001--UP | 1 | Request quote | |||
| 11 | BOLTSN: A30001--UP | 7 | Request quote | |||
| 12 | SHEETSN: A30001--UP | 1 | Request quote | |||
| 13 | PLATESN: A30001--UP | 1 | Request quote | |||
| 14 | PLATESN: A30001--UP | 2 | Request quote | |||
| 15 | BOLTSN: A30001--UP | 8 | View product ↗ | |||
| 16 | CUSHIONSN: A30001--UP | 2 | Request quote | |||
| 17 | CUSHION, STRIPSN: A30001--UP | 3 | Request quote | |||
| 18 | COVERSN: A30001--UP | 2 | Request quote | |||
| 19 | BOLTSN: A30001--UP | 8 | Request quote | |||
| 20 | HOLDERSN: A30001--UP | 1 | Request quote | |||
| 21 | SCREWSN: A30001--UP | 5 | Request quote | |||
| 22 | WASHER, LOCKSN: A30001--UP | 10 | View product ↗ | |||
| 23 | NUTSN: A30001--UP | 5 | Request quote | |||
| 24 | BRACKET, EXHAUST PIPESN: A30001--UP | 1 | Request quote | |||
| 25 | BOLTSN: A30001--UP | 8 | View product ↗ | |||
| 26 | BOLT, MOUNTING HOODSN: A30001--UP | 8 | Request quote | |||
| 27 | WASHERSN: A30001--UP | 8 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
OR
OR
F1 ON MACHINES NOT EQUIPPED WITH AIR COOLED OIL COOLER.
F2 ON MACHINES EQUIPPED WITH AIR COOLED OIL COOLER.
Using Komatsu WA320-3L Wheel Loader Engine Hood And Mounting Parts
Use the Komatsu WA320-3L Wheel Loader Engine Hood And Mounting Parts listing to identify aftermarket replacement parts within the guard section. This wheel loader application is listed for machine serial A30001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 29 listed part occurrences, including hood, engine (reference 419-54-21821), insulator (reference 418-54-11830) and cover, l.h. (reference 419-54-A2130). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
