Guard

Komatsu WA320-3L Wheel Loader Engine Hood Door Parts

Komatsu WA320-3L engine hood door parts for machine serial A30001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: Guard / Engine Hood Door.

WA320-3LMachine serial A30001-UP36 part occurrences

Checking current purchase options...

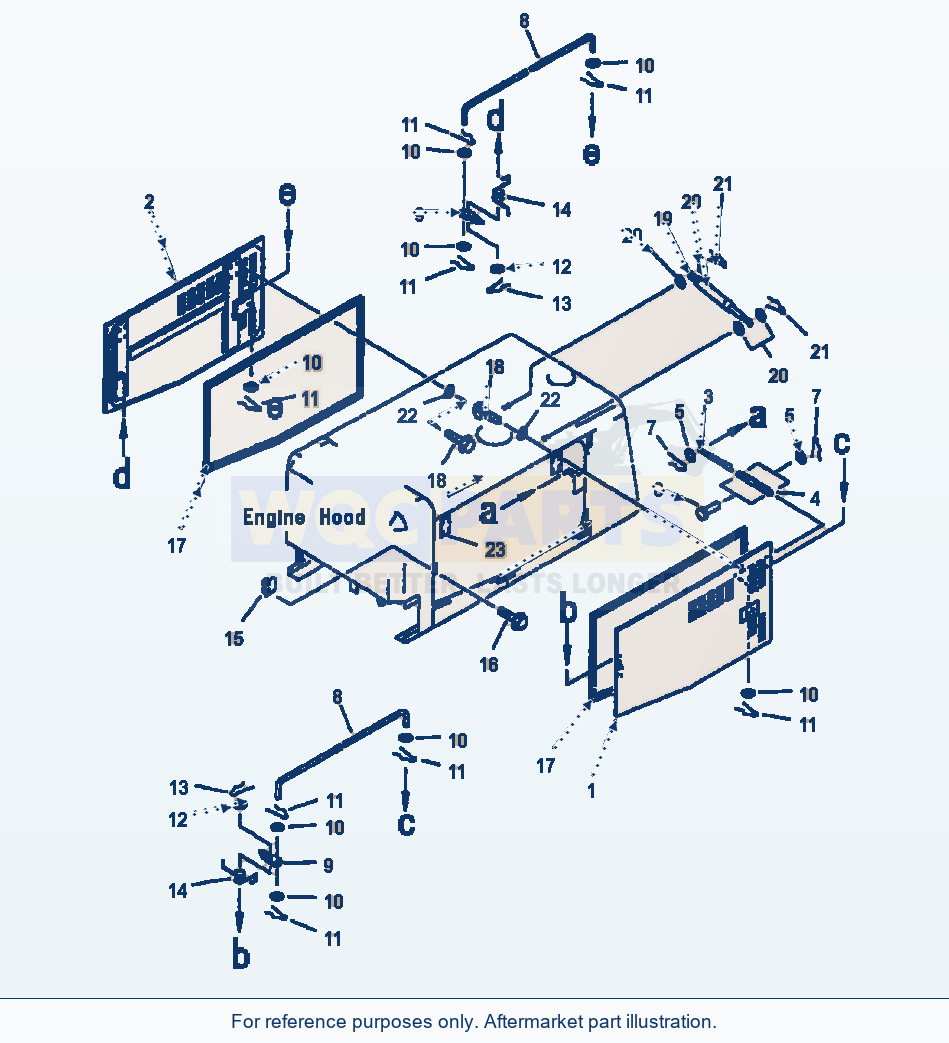

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 36 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
1	DOOR, ENGINE ACCESS - L.H.SN: A30001--UPF1	1	Request quote
1	LOCKSN: A30001--UP	1	Request quote
1	DOOR, ENGINE ACCESS - L.H.SN: A30001--UPF2	1	Request quote
2	DOOR, ENGINE ACCESS - R.H.SN: A30001--UPF1	1	Request quote
7	LOCKSN: A30001--UP	1	Request quote
2	DOOR, ENGINE ACCESS - R.H.SN: A30001--UPF2	1	Request quote
12	LOCKSN: A30001--UP	1	Request quote
3	PLATESN: A30001--UP	2	Request quote
4	PLATESN: A30001--UP	2	Request quote
5	WASHERSN: A30001--UP	6	View product ↗
6	PINSN: A30001--UP	4	Request quote
7	PIN, SNAPSN: A30001--UP	6	Request quote
8	RODSN: A30001--UP	2	Request quote
N/I	NUTSN: A30001--UP	2	Request quote
N/I	TUBESN: A30001--UP	2	Request quote
N/I	NUTSN: A30001--UP	2	Request quote
N/I	RODSN: A30001--UP	2	Request quote
N/I	WASHERSN: A30001--UP	8	View product ↗
N/I	COTTER PINSN: A30001--UP	8	Request quote
9	STRIKERSN: A30001--UP	2	Request quote
10	WASHERSN: A30001--UP	8	View product ↗
11	PIN, SNAPSN: A30001--UP	8	View product ↗
12	WASHERSN: A30001--UP	2	View product ↗
13	PIN, SNAPSN: A30001--UP	2	View product ↗
14	SPRING, L.H.SN: A30001--UP	1	Request quote
31	SPRING, R.H.SN: A30001--UP	1	Request quote
15	PLATESN: A30001--UP	2	Request quote
16	BOLTSN: A30001--UP	4	Request quote
17	SEAL, DOORSN: A30001--UP	2	Request quote
18	BOLT, MOUNTING ENGINE ACCESS DOORSSN: A30001--UP	16	View product ↗
19	CYLINDER, ENGINE ACCESS DOORSN: A30001--UPF1	2	Request quote
19	CYLINDER, ENGINE ACCESS DOORSN: A30001--UPF2	2	Request quote
20	WASHERSN: A30001--UP	16	View product ↗
21	PIN, SNAPSN: A30001--UP	4	Request quote
22	WASHERSN: A30001--UP	16	View product ↗
23	HINGESN: A30001--UP	4	Request quote

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.

Assembly notes

F1 USED ON MACHINES NOT EQUIPPED WITH REAR FENDERS.

F2 USED ON MACHINES EQUIPPED WITH REAR FENDERS.

Catalog sitemap

Using Komatsu WA320-3L Wheel Loader Engine Hood Door Parts

Use the Komatsu WA320-3L Wheel Loader Engine Hood Door Parts listing to identify aftermarket replacement parts within the guard section. This wheel loader application is listed for machine serial A30001-UP; the diagram and parts table retain the selected configuration and its source notes.

The parts table contains 36 listed part occurrences, including door, engine access - l.h. (reference 419-54-21911), lock (reference 421-54-11364) and door, engine access - l.h. (reference 419-54-21831). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.

Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.

Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
