Komatsu WA320-3L Wheel Loader Front Frame Parts
Komatsu WA320-3L front frame parts for machine serial A30001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Main/Revolving Frame And Related Parts / Front Frame.
Checking current purchase options...

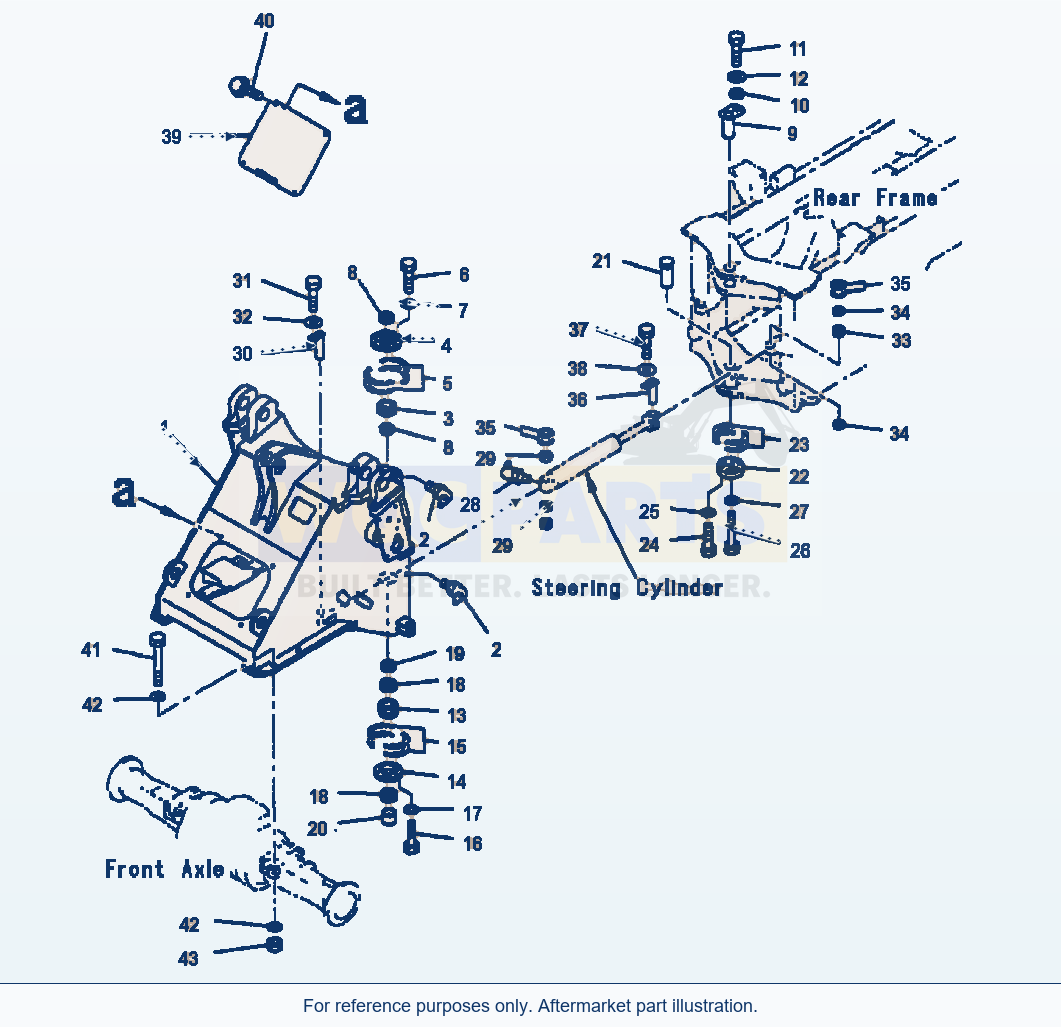

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 53 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | FRAME, FRONTSN: A30001--UP | 1 | Request quote | |||
| 4 | FRAME, FRONT (WITH MONO LEVER)SN: A30001--UPF1 | 1 | Request quote | |||
| 8 | FRAME, FRONT (WITH E.C.S.S.)SN: A30001--UPF2 | 1 | Request quote | |||
| 12 | FRAME, FR0NT (WITH CENTRAL GREASE SYSTEM)SN: A30001--UPF3 | 1 | Request quote | |||
| 2 | FITTING, GREASESN: A30001--UP | 2 | View product ↗ | |||
| 3 | BEARINGSN: A30001--UP | 1 | Request quote | |||
| 4 | RETAINERSN: A30001--UP | 1 | Request quote | |||
| 5 | SHIM, 0.1MMSN: A30001--UP | 8 | Request quote | |||
| 17 | SHIM, 0.5MMSN: A30001--UP | 4 | View product ↗ | |||
| 6 | BOLTSN: A30001--UP | 10 | Request quote | |||
| 7 | WASHERSN: A30001--UP | 10 | View product ↗ | |||
| 8 | SEAL, DUSTSN: A30001--UP | 2 | View product ↗ | |||
| 9 | SHAFTSN: A30001--UP | 1 | View product ↗ | |||
| 10 | BUSHINGSN: A30001--UP | 1 | View product ↗ | |||
| 11 | BOLTSN: A30001--UP | 1 | Request quote | |||
| 12 | WASHERSN: A30001--UP | 1 | View product ↗ | |||
| 13 | BEARINGSN: A30001--UP | 1 | Request quote | |||
| 14 | RETAINERSN: A30001--UP | 1 | Request quote | |||
| 15 | SHIM, 0.1MMSN: A30001--UP | 8 | Request quote | |||
| 28 | SHIM, 0.5MMSN: A30001--UP | 2 | Request quote | |||
| 29 | SHIM, 1.0MMSN: A30001--UP | 4 | Request quote | |||
| 16 | BOLTSN: A30001--UP | 6 | Request quote | |||
| 17 | WASHERSN: A30001--UP | 6 | View product ↗ | |||
| 18 | SEAL, DUSTSN: A30001--UP | 2 | View product ↗ | |||
| 19 | SPACERSN: A30001--UP | 1 | Request quote | |||
| 20 | SPACERSN: A30001--UP | 1 | View product ↗ | |||
| 21 | SHAFTSN: A30001--UP | 1 | View product ↗ | |||
| 22 | COVERSN: A30001--UP | 1 | Request quote | |||
| 23 | SHIM, 0.1MMSN: A30001--UP | 8 | Request quote | |||
| 38 | SHIM, 0.5MMSN: A30001--UP | 6 | Request quote | |||
| 24 | BOLTSN: A30001--UP | 6 | Request quote | |||
| 25 | WASHERSN: A30001--UP | 6 | View product ↗ | |||
| 26 | BOLTSN: A30001--UP | 3 | Request quote | |||
| 27 | WASHERSN: A30001--UP | 3 | View product ↗ | |||
| 28 | FITTING, GREASESN: A30001--UP | 2 | View product ↗ | |||
| 29 | SEAL, DUSTSN: A30001--UP | 4 | View product ↗ | |||
| 30 | PIN, MOUNTING STEERING CYLINDERSN: A30001--UP | 2 | View product ↗ | |||
| 49 | PIN, MOUNTING STEERING CYLINDERSN: A30001--UPF3 | 2 | Request quote | |||
| 31 | BOLTSN: A30001--UP | 2 | View product ↗ | |||
| 32 | WASHERSN: A30001--UP | 2 | View product ↗ | |||
| 33 | BUSHINGSN: A30001--UP | 2 | Request quote | |||
| 34 | SEAL, DUSTSN: A30001--UP | 4 | View product ↗ | |||
| 35 | SHIM, 0.5MMSN: A30001--UP | 6 | View product ↗ | |||
| 55 | SHIM, 1.0MMSN: A30001--UP | 12 | Request quote | |||
| 36 | PIN, MOUNTING STEERING CYLINDERSN: A30001--UP | 2 | View product ↗ | |||
| 37 | BOLTSN: A30001--UP | 2 | View product ↗ | |||
| 38 | WASHERSN: A30001--UP | 2 | View product ↗ | |||
| 39 | COVER, FRONTSN: A30001--UP | 1 | Request quote | |||
| 39 | COVER, FRONT (WITH FRONT ATTACHMENT)SN: A30001--UPF4 | 1 | Request quote | |||
| 40 | BOLTSN: A30001--UP | 4 | View product ↗ | |||
| 41 | BOLT, MOUNTING FRONT AXLESN: A30001--UP | 8 | Request quote | |||
| 42 | WASHERSN: A30001--UP | 16 | Request quote | |||
| 43 | NUTSN: A30001--UP | 8 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
OR
OR
OR
OR
OR
F1 MODIFIED FRAME FOR MACHINES EQUIPPED WITH MONO LEVER ATTACHMENT.MODIFIED FRAME FOR MACHINES EQUIPPED WITH ELECTRONIC CONTROLLED SUSPENSION SYSTEM.MODIFIED FRAME FOR MACHINES EQUIPPED WITH CENTRAL GREASE SYSTEM.ON MACHINES EQUIPPED WITH
F2 MODIFIED FRAME FOR MACHINES EQUIPPED WITH ELECTRONIC CONTROLLED SUSPENSION SYSTEM.MODIFIED FRAME FOR MACHINES EQUIPPED WITH CENTRAL GREASE SYSTEM.ON MACHINES EQUIPPED WITH FRONT HYDRAULIC ATTACHMENT.
F3 MODIFIED FRAME FOR MACHINES EQUIPPED WITH CENTRAL GREASE SYSTEM.ON MACHINES EQUIPPED WITH FRONT HYDRAULIC ATTACHMENT.
F4 ON MACHINES EQUIPPED WITH FRONT HYDRAULIC ATTACHMENT.
Using Komatsu WA320-3L Wheel Loader Front Frame Parts
Use the Komatsu WA320-3L Wheel Loader Front Frame Parts listing to identify aftermarket replacement parts within the main/revolving frame and related parts section. This wheel loader application is listed for machine serial A30001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 53 listed part occurrences, including frame, front (reference 419-46-21400), frame, front (with mono lever) (reference 419-877-2310) and frame, front (with e.c.s.s.) (reference 419-S99-2530). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
