Komatsu WA320-3L Wheel Loader Rear Frame Parts
Komatsu WA320-3L rear frame parts for machine serial A30001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Main/Revolving Frame And Related Parts / Rear Frame.
Checking current purchase options...

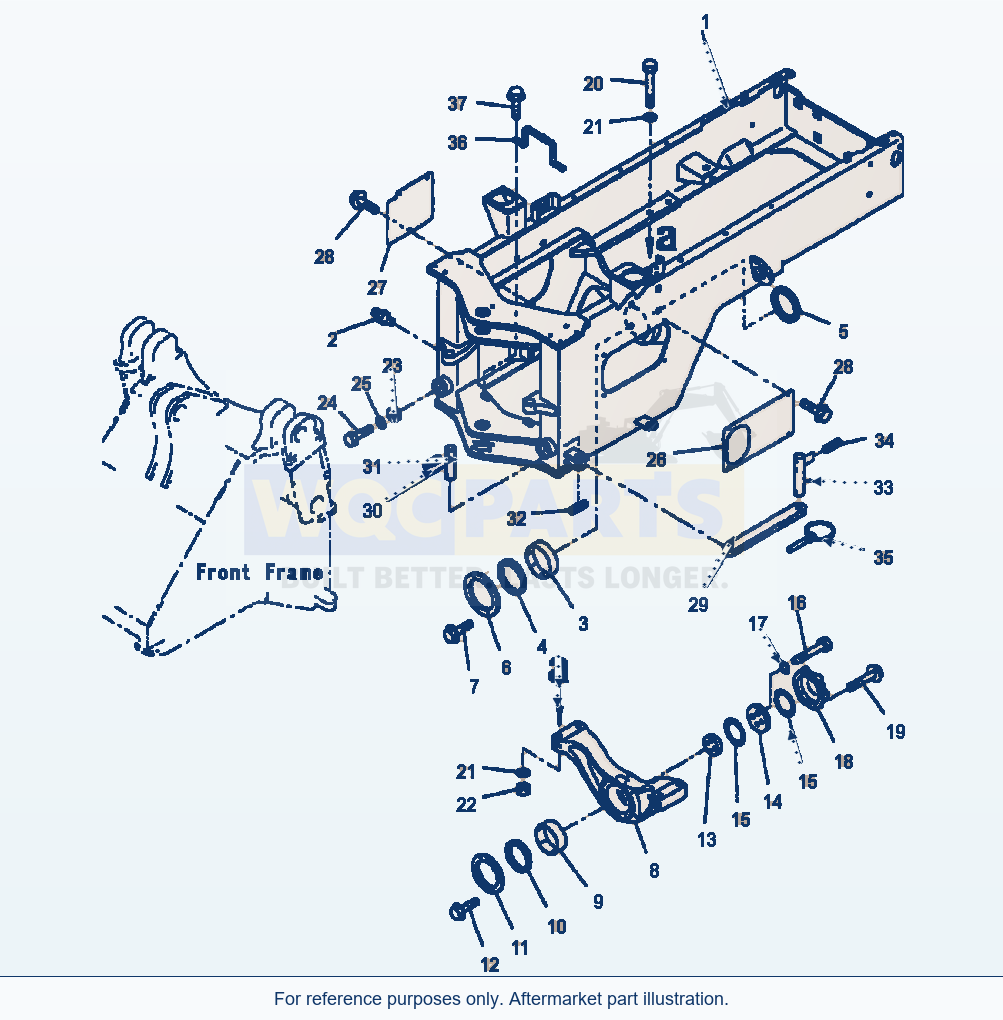

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 42 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | FRAME, REARSN: A30001--UP | 1 | Request quote | |||
| 1 | FRAME, REAR (WITH ADDITIONAL COUNTER WEIGHT)SN: A30001--UPF1 | 1 | Request quote | |||
| 1 | FRAME, REAR (WITH ADDITIONAL COUNTER WEIGHT)SN: A30001--UPF2 | 1 | Request quote | |||
| 1 | FRAME, REAR (WITH E.C.S.S.)SN: A30001--UPF3 | 1 | Request quote | |||
| 1 | FRAME, REAR (WITH CENTRAL GREASE SYSTEM)SN: A30001--UPF4 | 1 | Request quote | |||
| 1 | FRAME, REAR (WITH SAND & DUST AIR KIT)SN: A30001--UPF5 | 1 | Request quote | |||
| 2 | FITTING, GREASESN: A30001--UP | 2 | View product ↗ | |||
| 3 | BUSHINGSN: A30001--UP | 1 | View product ↗ | |||
| 4 | PACKINGSN: A30001--UP | 1 | View product ↗ | |||
| 5 | SEAL, DUSTSN: A30001--UP | 1 | View product ↗ | |||
| 6 | RETAINERSN: A30001--UP | 1 | Request quote | |||
| 7 | BOLTSN: A30001--UP | 6 | View product ↗ | |||
| 8 | SUPPORT, REAR AXLESN: A30001--UP | 1 | Request quote | |||
| 9 | BUSHING, REARSN: A30001--UP | 1 | View product ↗ | |||
| 10 | PACKINGSN: A30001--UP | 1 | View product ↗ | |||
| 11 | RETAINERSN: A30001--UP | 1 | Request quote | |||
| 12 | BOLTSN: A30001--UP | 6 | View product ↗ | |||
| 13 | PLATESN: A30001--UP | 1 | Request quote | |||
| 14 | PLATE, THRUSTSN: A30001--UP | 1 | Request quote | |||
| 15 | WASHER, THRUSTSN: A30001--UP | 2 | View product ↗ | |||
| 16 | BOLTSN: A30001--UP | 4 | View product ↗ | |||
| 17 | WASHERSN: A30001--UP | 4 | View product ↗ | |||
| 18 | COVERSN: A30001--UP | 1 | Request quote | |||
| 19 | BOLTSN: A30001--UP | 6 | Request quote | |||
| 20 | BOLTSN: A30001--UP | 4 | View product ↗ | |||
| 21 | WASHERSN: A30001--UP | 8 | Request quote | |||
| 22 | NUTSN: A30001--UP | 4 | View product ↗ | |||
| 23 | BUMPER, FRONT FRAMESN: A30001--UP | 2 | View product ↗ | |||
| 24 | BOLTSN: A30001--UP | 2 | Request quote | |||
| 25 | WASHERSN: A30001--UP | 2 | View product ↗ | |||
| 26 | COVER, L.H.SN: A30001--UP | 1 | Request quote | |||
| 27 | COVER, R.H.SN: A30001--UP | 1 | Request quote | |||
| 28 | BOLTSN: A30001--UP | 7 | View product ↗ | |||
| 29 | BAR, FRAME LOCKSN: A30001--UP | 1 | Request quote | |||
| 30 | PINSN: A30001--UP | 1 | Request quote | |||
| 31 | PIN, SPRINGSN: A30001--UP | 1 | Request quote | |||
| 32 | PIN, SPRINGSN: A30001--UP | 1 | Request quote | |||
| 33 | PINSN: A30001--UP | 1 | Request quote | |||
| 34 | PIN, SPRINGSN: A30001--UP | 2 | Request quote | |||
| 35 | PIN, LYNCHSN: A30001--UP | 1 | Request quote | |||
| 36 | PLATESN: A30001--UP | 1 | Request quote | |||
| 37 | BOLTSN: A30001--UP | 4 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
OR
OR
OR
OR
OR
F1 MODIFIED FRAME FOR MACHINES EQUIPPED WITH ADDITIONAL COUNTERWEIGHT (LOGGER).MODIFIED FRAME FOR MACHINES EQUIPPED WITH ADDITIONAL COUNTERWEIGHT (HI-LIFT BOOM).MODIFIED FRAME FOR MACHINES EQUIPPED WITH ELECTRONIC CONTROLLED SUSPENSION SYST
F2 MODIFIED FRAME FOR MACHINES EQUIPPED WITH ADDITIONAL COUNTERWEIGHT (HI-LIFT BOOM).MODIFIED FRAME FOR MACHINES EQUIPPED WITH ELECTRONIC CONTROLLED SUSPENSION SYSTEM.MODIFIED FRAME FOR MACHINES EQUIPPED WITH CENTRAL GREASE SYSTEM.MODIFIED
F3 MODIFIED FRAME FOR MACHINES EQUIPPED WITH ELECTRONIC CONTROLLED SUSPENSION SYSTEM.MODIFIED FRAME FOR MACHINES EQUIPPED WITH CENTRAL GREASE SYSTEM.MODIFIED FRAME FOR MACHINES EQUIPPED WITH SAND AND DUST AIR KIT.
F4 MODIFIED FRAME FOR MACHINES EQUIPPED WITH CENTRAL GREASE SYSTEM.MODIFIED FRAME FOR MACHINES EQUIPPED WITH SAND AND DUST AIR KIT.
F5 MODIFIED FRAME FOR MACHINES EQUIPPED WITH SAND AND DUST AIR KIT.
Using Komatsu WA320-3L Wheel Loader Rear Frame Parts
Use the Komatsu WA320-3L Wheel Loader Rear Frame Parts listing to identify aftermarket replacement parts within the main/revolving frame and related parts section. This wheel loader application is listed for machine serial A30001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 42 listed part occurrences, including frame, rear (reference 419-46-22050), frame, rear (with additional counter weight) (reference 419-974-2140) and frame, rear (with e.c.s.s.) (reference 419-S99-2560). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
