Komatsu WA320-3L Wheel Loader Floor Support - With Rops Cab Parts
Komatsu WA320-3L floor support - with rops cab parts for machine serial A30001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Operator'S Compartment And Control System / Floor Support - With Rops Cab.
Checking current purchase options...

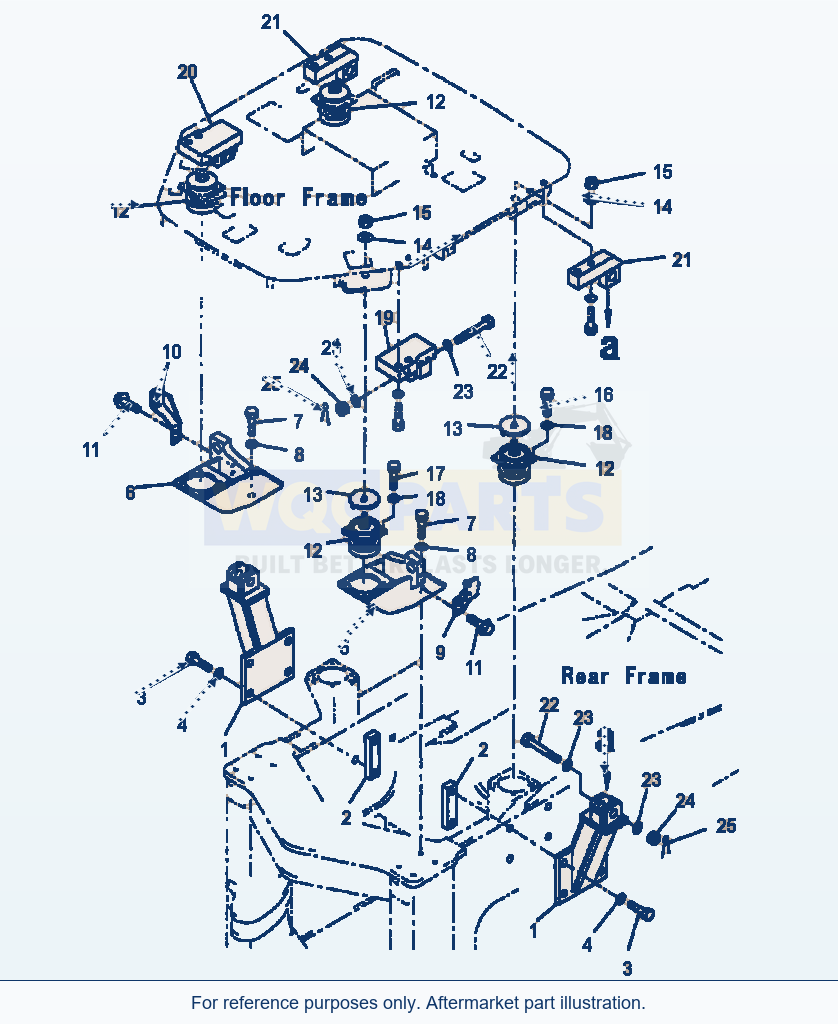

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 27 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | SUPPORTSN: A30001--UP | 2 | Request quote | |||
| 2 | SEATSN: A30001--UP | 4 | Request quote | |||
| 3 | BOLTSN: A30001--UP | 8 | View product ↗ | |||
| 4 | WASHERSN: A30001--UP | 8 | Request quote | |||
| 5 | SUPPORT, L.H.SN: A30001--UP | 1 | Request quote | |||
| 6 | SUPPORT, R.H.SN: A30001--UP | 1 | Request quote | |||
| 7 | BOLTSN: A30001--UP | 8 | View product ↗ | |||
| 8 | WASHERSN: A30001--UP | 8 | View product ↗ | |||
| 9 | PLATE, L.H.SN: A30001--UP | 1 | Request quote | |||
| 10 | PLATE, R.H.SN: A30001--UP | 1 | Request quote | |||
| 11 | BOLTSN: A30001--UP | 4 | View product ↗ | |||
| 12 | CUSHION, VISCOUS MOUNTSN: A30001--UP | 4 | Request quote | |||
| 13 | PLATESN: A30001--UP | 4 | Request quote | |||
| 14 | WASHERSN: A30001--UP | 4 | View product ↗ | |||
| 15 | NUTSN: A30001--UP | 4 | Request quote | |||
| 16 | BOLTSN: A30001--UP | 8 | Request quote | |||
| 17 | BOLTSN: A30001--UP | 8 | Request quote | |||
| 18 | WASHERSN: A30001--UP | 16 | View product ↗ | |||
| 19 | BRACKET, L.H.SN: A30001--UP | 1 | Request quote | |||
| 20 | BRACKET, R.H.SN: A30001--UP | 1 | Request quote | |||
| 21 | BRACKETSN: A30001--UP | 2 | Request quote | |||
| 22 | BOLTSN: A30001--UP | 4 | Request quote | |||
| 23 | WASHERSN: A30001--UP | 8 | View product ↗ | |||
| 24 | NUTSN: A30001--UP | 4 | Request quote | |||
| 25 | PIN, COTTERSN: A30001--UP | 4 | Request quote | |||
| 25 | COLLARSN: A30001--UP | 4 | Request quote | |||
| 26 | SHIMSN: A30001--UP | 18 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
