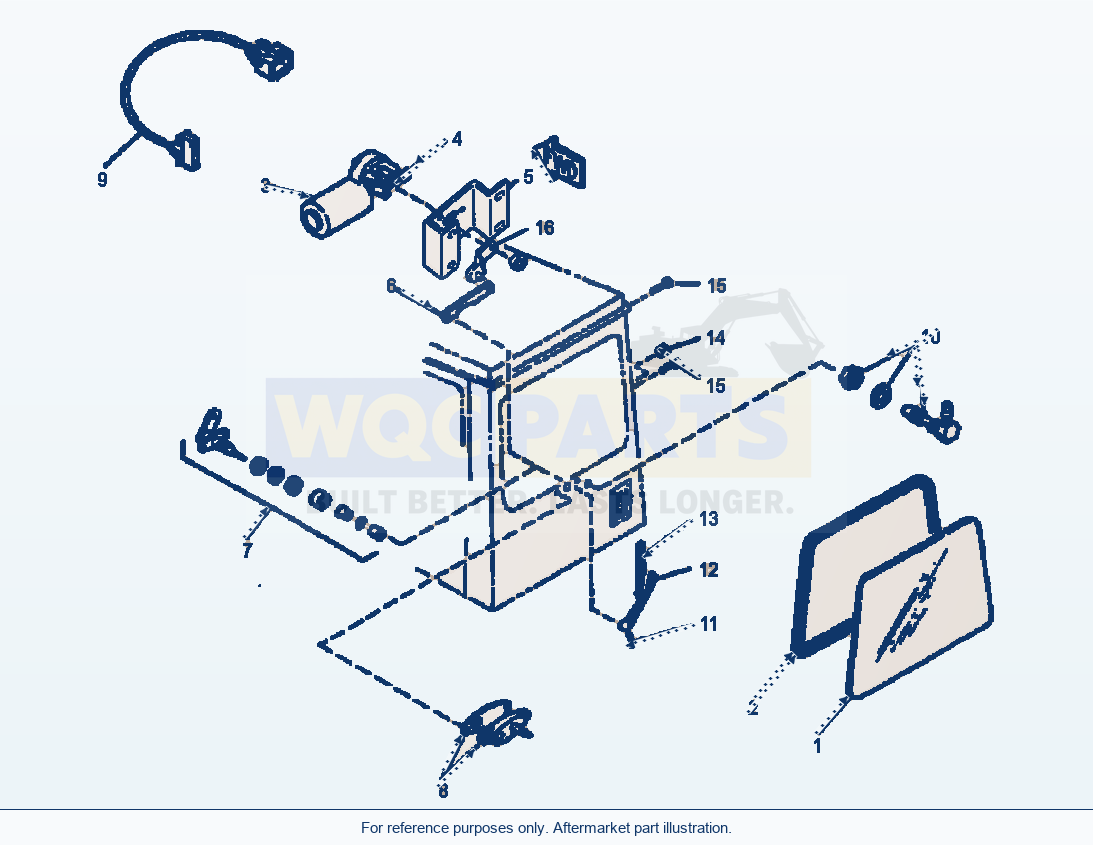

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 18 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | GLASS, REARSN: A30001--UP | 1 | Request quote | |||
| 2 | STRIP, WEATHERSN: A30001--UP | 1 | Request quote | |||
| 3 | MOTOR, REAR WIPER - 24VSN: A30001--UP | 1 | Request quote | |||
| 4 | DRIVE, ARMSN: A30001--UP | 1 | Request quote | |||
| 5 | BRACKET, MOUNT WIPER MOTORSN: A30001--UP | 1 | Request quote | |||
| 6 | BOLT, BRACKET MOUNTINGSN: A30001--UP | 4 | Request quote | |||
| 6 | LINK, REAR WIPERSN: A30001--UP | 1 | Request quote | |||
| 7 | SHAFT ASSEMBLY, WIPER (1 IN.)SN: A30001--UP | 1 | Request quote | |||
| 8 | KIT, PANTO ADAPTERSN: A30001--UP | 1 | Request quote | |||
| 10 | BOLT, PANTO ADAPTER MOUNTINGSN: A30001--UP | 2 | Request quote | |||
| 9 | HARNESS, REAR WIPER MOTORSN: A30001-A31018-UP | 1 | Request quote | |||
| 10 | FITTING, COWLSN: A30001--UP | 1 | Request quote | |||
| 11 | KIT, WASHER - WET ARMSN: A30001--UP | 1 | Request quote | |||
| 12 | ARM, REAR WIPER (22 IN.)SN: A30001--UP | 1 | Request quote | |||
| 13 | BLADE, REAR WIPER (18 IN.)SN: A30001--UP | 1 | Request quote | |||
| 14 | CAPSN: A30001--UP | 1 | Request quote | |||
| 15 | SCREWSN: A30001--UP | 2 | Request quote | |||
| 16 | LINKSN: A30001--UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
CAB ASSEMBLY, ROPS (SEE FIG. K0210-05A0)
Using Komatsu WA320-3L Operator Cab - Rear Window And Wiper Parts
Use the Komatsu WA320-3L Operator Cab - Rear Window And Wiper Parts listing to identify aftermarket replacement parts within the operator's compartment and control system section. This wheel loader application is listed for machine serial A30001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 18 listed part occurrences, including glass, rear (reference 421-926-2510), strip, weather (reference 423-926-A170) and motor, rear wiper - 24v (reference 423-926-A250). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For operator-compartment and control parts, compare the cab arrangement and equipment options identified on the assembly page. Retain any handedness and connection details when selecting a part or requesting assistance.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
