Komatsu WA320-3L Wheel Loader Bellcrank Parts
Komatsu WA320-3L bellcrank parts for machine serial A30001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Work Equipment / Bellcrank.
Checking current purchase options...

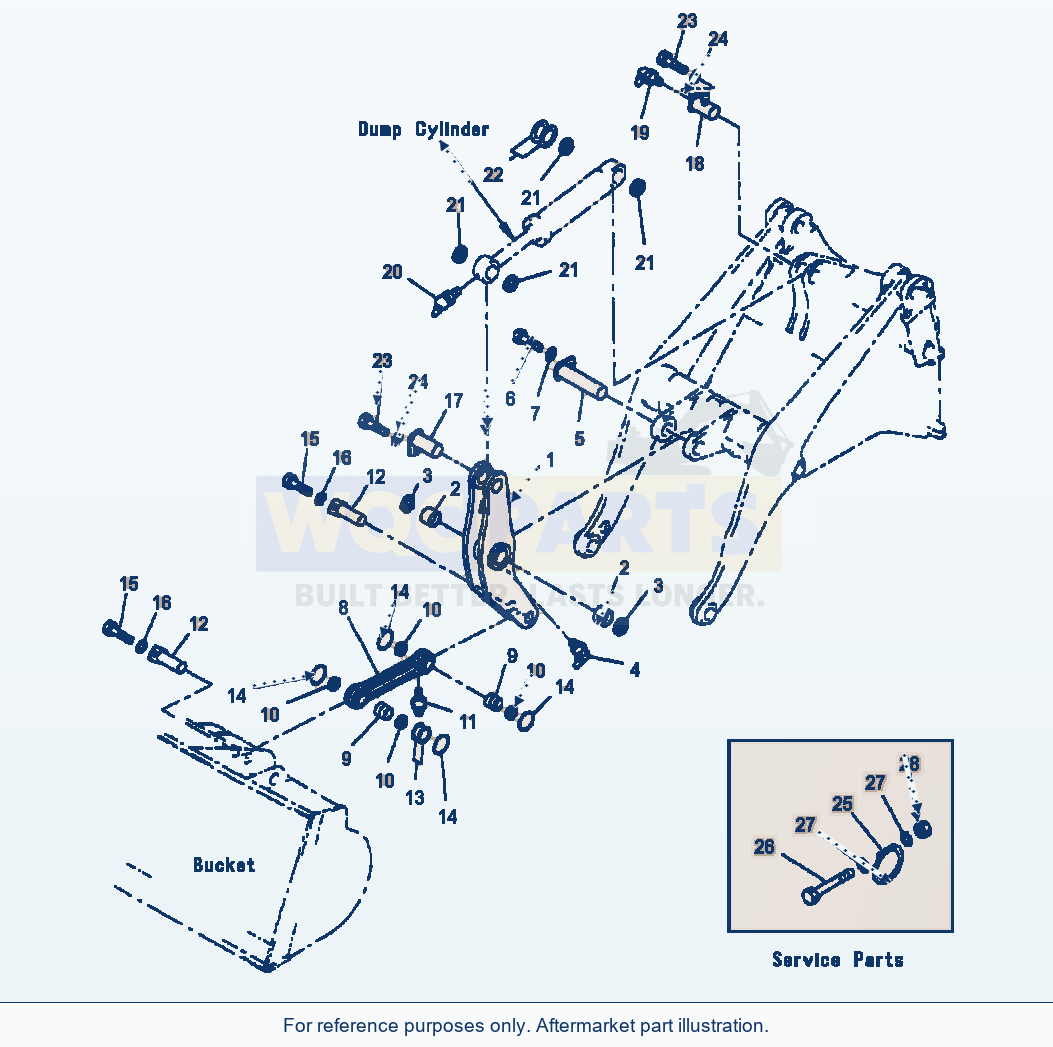

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 39 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | BELLCRANK ASSEMBLYSN: A30001--UPF1 | 1 | Request quote | |||
| 1 | BELLCRANK ASSEMBLYSN: A30001--UPF2 | 1 | Request quote | |||
| 1 | BELLCRANKSN: A30001--UP | 1 | Request quote | |||
| 2 | BUSHINGSN: A30001--UP | 2 | View product ↗ | |||
| 3 | SEAL, DUSTSN: A30001--UP | 2 | View product ↗ | |||
| 4 | FITTING, GREASESN: A30001--UP | 1 | View product ↗ | |||
| 5 | PINSN: A30001--UP | 1 | View product ↗ | |||
| 6 | BOLTSN: A30001--UP | 1 | View product ↗ | |||
| 7 | WASHERSN: A30001--UP | 1 | View product ↗ | |||
| 9 | LINK ASSEMBLYSN: A30001--UPF1 | 1 | Request quote | |||
| 10 | LINK ASSEMBLYSN: A30001--UPF2 | 1 | Request quote | |||
| 11 | LINK ASSEMBLY (HI-LIFT)SN: A30001--UPF3 | 1 | Request quote | |||
| 8 | LINKSN: A30001--UP | 1 | Request quote | |||
| 9 | BUSHINGSN: A30001--UP | 2 | View product ↗ | |||
| 10 | SEAL, DUSTSN: A30001--UP | 4 | View product ↗ | |||
| 11 | FITTING, GREASESN: A30001--UP | 2 | View product ↗ | |||
| 12 | PINSN: A30001--UP | 2 | Request quote | |||
| 17 | PINSN: A30001--UPF2 | 1 | Request quote | |||
| 13 | SHIM, 1.5MMSN: A30001--UP | 1 | Request quote | |||
| 19 | SHIM, 3.0MMSN: A30001--UP | 1 | View product ↗ | |||
| 14 | ORINGSN: A30001--UP | 4 | Request quote | |||
| 21 | O-RINGSN: A30001--UPF2 | 2 | View product ↗ | |||
| 15 | BOLTSN: A30001--UP | 2 | View product ↗ | |||
| 16 | WASHERSN: A30001--UP | 2 | View product ↗ | |||
| 17 | PIN, MOUNTING DUMP CYLINDERSN: A30001--UP | 1 | Request quote | |||
| 25 | PIN, MOUNTING DUMP CYLINDERSN: A30001--UPF2 | 1 | Request quote | |||
| 18 | PIN, MOUNTING DUMP CYLINDERSN: A30001--UP | 1 | Request quote | |||
| 19 | PLUGSN: A30001--UP | 1 | View product ↗ | |||
| 28 | NIPPLESN: A30001--UP | 1 | View product ↗ | |||
| 20 | FITTING, GREASESN: A30001--UP | 1 | Request quote | |||
| 21 | SEAL, DUSTSN: A30001--UP | 4 | View product ↗ | |||
| 22 | SHIM, 1.5MMSN: A30001--UP | 1 | Request quote | |||
| 32 | SHIM, 3.0MMSN: A30001--UP | 1 | View product ↗ | |||
| 23 | BOLTSN: A30001--UP | 2 | View product ↗ | |||
| 24 | WASHERSN: A30001--UP | 2 | View product ↗ | |||
| 25 | ORINGSN: A30001--UP | 4 | View product ↗ | |||
| 26 | BOLTSN: A30001--UP | 4 | Request quote | |||
| 27 | WASHERSN: A30001--UP | 8 | View product ↗ | |||
| 28 | NUTSN: A30001--UP | 4 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
SERVICE PARTS:
F1 USED ON MACHINES EQUIPPED WITH STANDARD EQUIPMENT.
F2 USED ON MACHINES EQUIPPED WITH AUTO GREASE SYSTEM.
F3 USED ON MACHINES EQUIPPED WITH HI-LIFT LIFT ARM.
Using Komatsu WA320-3L Wheel Loader Bellcrank Parts
Use the Komatsu WA320-3L Wheel Loader Bellcrank Parts listing to identify aftermarket replacement parts within the work equipment section. This wheel loader application is listed for machine serial A30001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 39 listed part occurrences, including bellcrank assembly (reference 419-70-21200), bellcrank assembly (reference 419-S95-2400) and bellcrank (reference 419-70-21210). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For work-equipment parts, check the attachment configuration and any boom, arm, bucket or lift arrangement named in the assembly. Keep capacity, length and left/right distinctions wherever the source provides them.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
