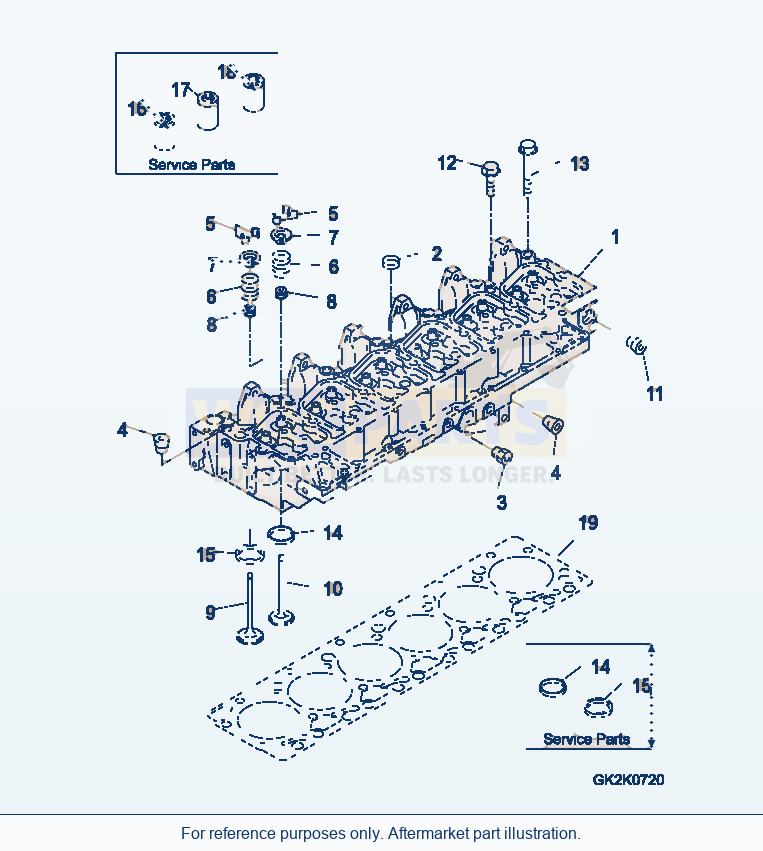

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 25 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | HEAD, CYLINDERSN: 21573167-UP | 1 | Request quote | |||
| 2 | HEAD, CYLINDERSN: 21563300-21563301 | 1 | Request quote | |||
| 1 | HEAD, CYLINDERSN: 21573167-UP | 1 | Request quote | |||
| 4 | HEAD, CYLINDERSN: 21563300-21563301 | 1 | Request quote | |||
| 2 | PLUGSN: 21814611-UP | 5 | Request quote | |||
| 6 | PLUGSN: 21563300-21740096 | This shows a discontinued part. The part specified in the above line is supplied instead. | 5 | Request quote | |||
| 4 | PLUGSN: 21563300-UP | 5 | Request quote | |||
| 9 | VALVE, INTAKESN: 21563300-UP | 6 | View product ↗ | |||
| 5 | COLLET, VALVESN: 21563300-UP | 12 | View product ↗ | |||
| 12 | VALVE, EXHAUSTSN: 21563300-UP | 6 | View product ↗ | |||
| 5 | COLLET, VALVESN: 21563300-UP | 12 | View product ↗ | |||
| 6 | SPRING, VALVESN: 21563300-UP | 12 | View product ↗ | |||
| 7 | RETAINER, VALVE SPRINGSN: 21573167-UP | 12 | View product ↗ | |||
| 17 | RETAINER, VALVE SPRINGSN: 21563300-21740096 | This shows a discontinued part. The part specified in the above line is supplied instead. | 12 | Request quote | |||
| 8 | SEAL, VALVE STEM, (K1)SN: 21573167-UP | 12 | View product ↗ | |||
| 19 | SEAL, VALVE STEM, (K1)SN: 21563300-21563301 | 12 | View product ↗ | |||
| 11 | PLUGSN: 21563300-UP | 1 | Request quote | |||
| 12 | SCREWSN: 21563300-UP | 6 | Request quote | |||
| 13 | SCREWSN: 21563300-UP | 14 | Request quote | |||
| 14 | INSERT, VALVE, EXHAUSTSN: 21563300-UP | 6 | View product ↗ | |||
| 15 | INSERT, VALVE, INTAKESN: 21563300-UP | 6 | View product ↗ | |||
| 16 | GUIDE, THICK VALVE, INTAKESN: 21563300-UP | 1 | View product ↗ | |||
| 17 | GUIDE, THICK VALVE, EXHAUSTSN: 21563300-UP | 1 | View product ↗ | |||
| 18 | GUIDE, THIN VALVE, INTAKE AND EXHAUSTSN: 21563300-UP | 1 | View product ↗ | |||
| 19 | GASKET, CYLINDER HEAD, (K1)SN: 21563300-UP | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
NOT USED
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 9 | Description: VALVE, INTAKE | QTY: 6 | OPTIONS: SN: 21563300-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 10 | Description: VALVE, EXHAUST | QTY: 6 | OPTIONS: SN: 21563300-UP
SERVICE PARTS
Using Komatsu WA320-5 Cylinder Head Serial WA320-5H50051 - UP Parts
Use the Komatsu WA320-5 Cylinder Head Serial WA320-5H50051 - UP Parts listing to identify aftermarket replacement parts within the aa engine section. This wheel loader application is listed for machine serial WA320-5H50051 - UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 25 listed part occurrences, including head, cylinder (reference 6735-11-1161), head, cylinder (reference 6735-11-1201) and head, cylinder (reference 6735-11-1102). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
