Komatsu WA320-5 Wheel Loader Turbocharger (Inner Parts) Parts
Komatsu WA320-5 turbocharger (inner parts) parts for machine serial WA320-5H50051 - UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Aa Engine / Turbocharger (Inner Parts).
Checking current purchase options...

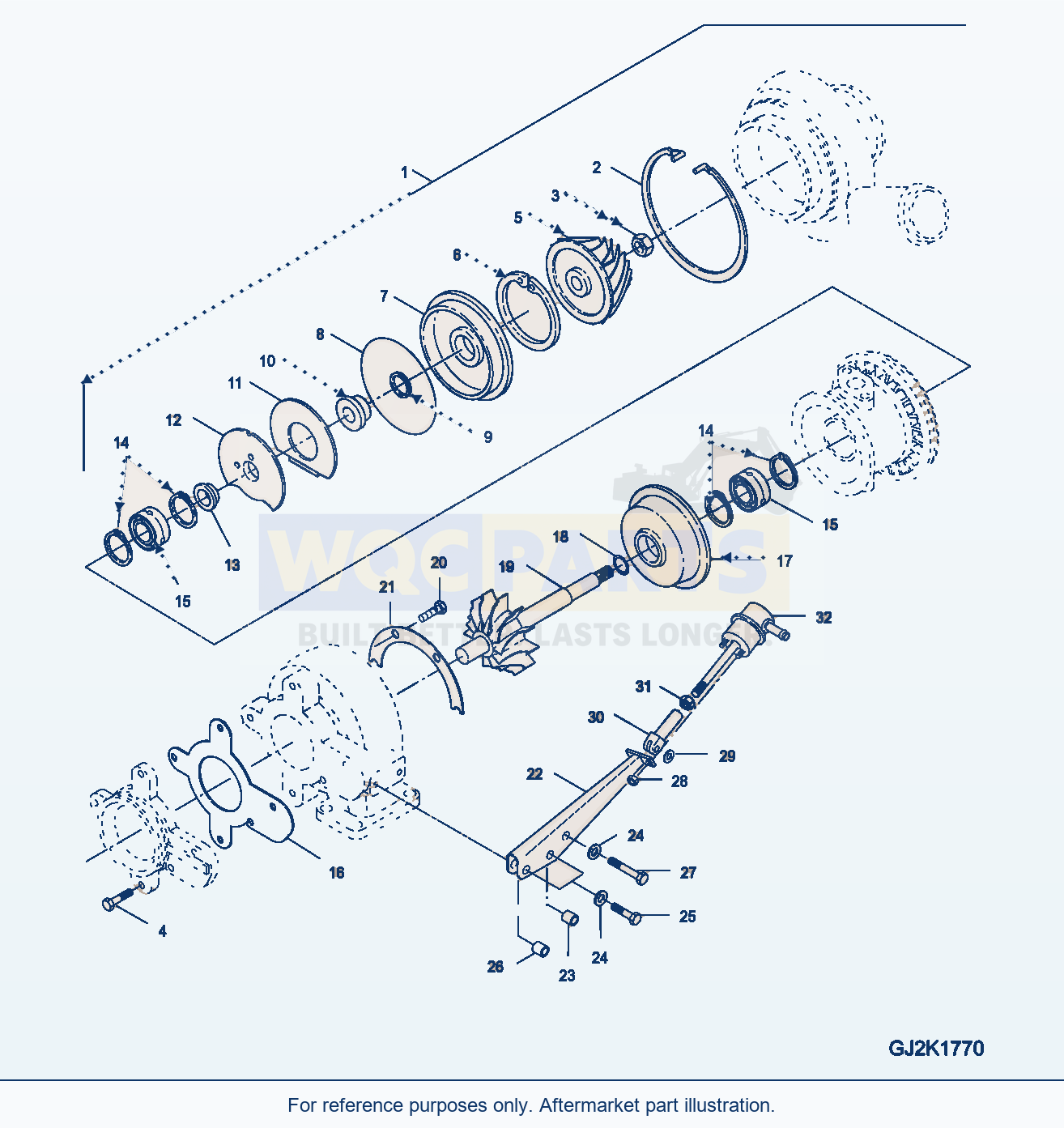

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 30 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | TURBOCHARGERSN: 21563300-UP | 1 | Request quote | |||
| 2 | CIRCLIPSN: 21563300-UP | 1 | Request quote | |||
| 3 | NUTSN: 21563300-UP | 1 | Request quote | |||
| 4 | SCREWSN: 21563300-UP | 5 | Request quote | |||
| 5 | PROPELLERSN: 21563300-UP | 1 | Request quote | |||
| 6 | SNAP RINGSN: 21563300-UP | 1 | Request quote | |||
| 7 | SEAL PLATESN: 21563300-UP | 1 | Request quote | |||
| 8 | O-RINGSN: 21563300-UP | 1 | Request quote | |||
| 9 | SEALSN: 21563300-UP | 1 | Request quote | |||
| 10 | SLINGERSN: 21563300-UP | 1 | Request quote | |||
| 11 | BAFFLESN: 21563300-UP | 1 | Request quote | |||
| 12 | THRUST WASHERSN: 21563300-UP | 1 | Request quote | |||
| 13 | COLLARSN: 21563300-UP | 1 | Request quote | |||
| 14 | RINGSN: 21563300-UP | 4 | Request quote | |||
| 15 | BEARINGSN: 21563300-UP | 2 | Request quote | |||
| 16 | GASKETSN: 21563300-UP | 1 | Request quote | |||
| 17 | SHIELDSN: 21563300-UP | 1 | Request quote | |||
| 18 | SEALSN: 21563300-UP | 1 | Request quote | |||
| 19 | SHANKSN: 21563300-UP | 1 | Request quote | |||
| 20 | SCREWSN: 21563300-UP | 6 | Request quote | |||
| 21 | PLATESN: 21563300-UP | 2 | Request quote | |||
| 22 | BRACKETSN: 21563300-UP | 1 | Request quote | |||
| 23 | SPACERSN: 21563300-UP | 2 | Request quote | |||
| 24 | DISCSN: 21563300-UP | 3 | Request quote | |||
| 25 | SCREWSN: 21563300-UP | 2 | Request quote | |||
| 26 | DISTANCE PIECESN: 21563300-UP | 1 | Request quote | |||
| 27 | SCREWSN: 21563300-UP | 1 | Request quote | |||
| 28 | NUTSN: 21563300-UP | 2 | Request quote | |||
| 29 | SNAP RINGSN: 21563300-UP | 1 | Request quote | |||
| 31 | NUTSN: 21563300-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 30 | Description: ADJUSTING LINK | QTY: 1 | OPTIONS: SN: 21563300-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 32 | Description: CONNECTOR | QTY: 1 | OPTIONS: SN: 21563300-UP
Using Komatsu WA320-5 Wheel Loader Turbocharger (Inner Parts) Parts
Use the Komatsu WA320-5 Wheel Loader Turbocharger (Inner Parts) Parts listing to identify aftermarket replacement parts within the aa engine section. This wheel loader application is listed for machine serial WA320-5H50051 - UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 30 listed part occurrences, including turbocharger (reference 6736-82-8020), circlip (reference 6735-81-8310) and propeller (reference 6738-82-8820). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
