Komatsu WA320-5 Marks And Plates (Portuguese) Serial B10001-UP Parts
Komatsu WA320-5 marks and plates (portuguese) serial b10001-up parts for machine serial B10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Marks And Plates / Marks And Plates (Portuguese).
Checking current purchase options...

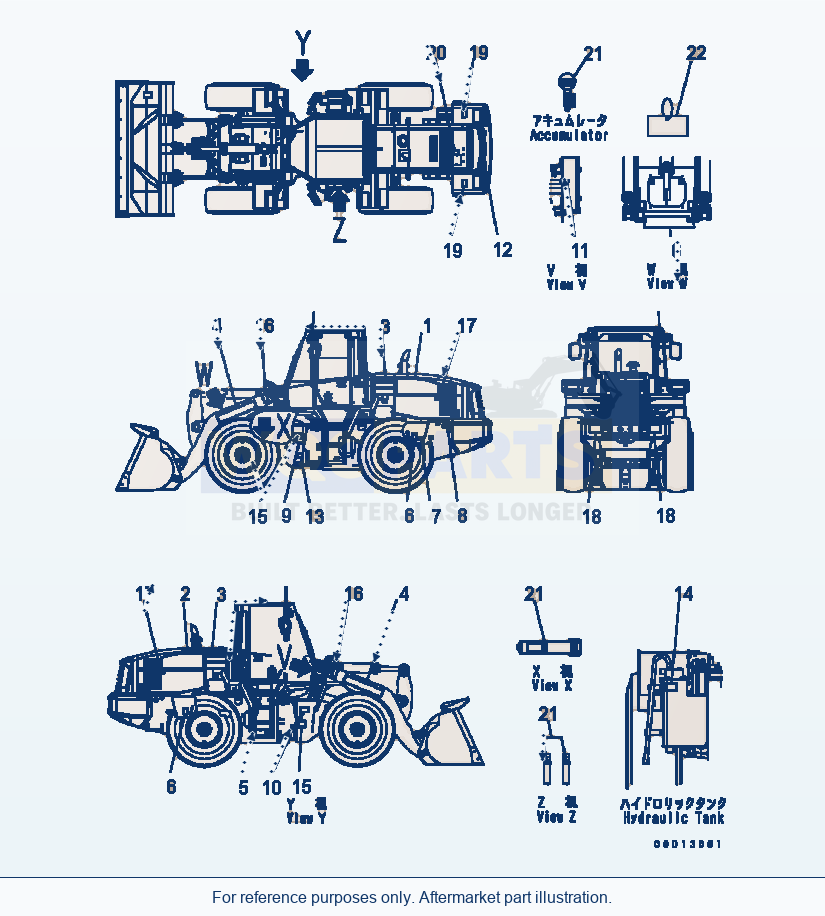

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 28 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PLATE {WA320 (L.H.)}SN: B10001-UP | 1 | Request quote | |||
| 2 | PLATE {WA320 (R.H.)}SN: B10001-UP | 1 | Request quote | |||
| 3 | PLATESN: B10001-UP | 2 | Request quote | |||
| 4 | PLATE, MARK {KOMATSU}SN: B10001-UP | 2 | Request quote | |||
| 5 | OIL CHARTSN: B10001-UP | 1 | Request quote | |||
| 6 | PLATE, MARK {LIFTING EYE}SN: B10001-UP | 4 | Request quote | |||
| 7 | PLATE, MARKSN: B10001-UP | 1 | Request quote | |||
| 12 | PLATE, CAUTION {FUEL}SN: B10001-UP | 1 | Request quote | |||
| 13 | PLATE, SAFETY {FRAME LOCK}SN: B10314-UP | 1 | Request quote | |||
| 13 | PLATE, SAFETY {FRAME LOCK}SN: B10001-B10313 | 1 | Request quote | |||
| 14 | PLATE, SAFETY {HYDRAULIC TANK CAP}SN: B10314-UP | 1 | Request quote | |||
| 14 | PLATE, SAFETY {HYDRAULIC TANK CAP}SN: B10001-B10313 | 1 | Request quote | |||
| 15 | PLATE, SAFETYSN: B10314-UP | 2 | Request quote | |||
| 15 | PLATE, SAFETYSN: B10001-B10313 | 2 | Request quote | |||
| 16 | PLATE, SAFETY {KEEP OUT}SN: B10001-UP | 2 | Request quote | |||
| 17 | PLATE, SAFETY {FAN}SN: B10314-UP | 2 | Request quote | |||
| 17 | PLATE, SAFETY {FAN}SN: B10001-B10313 | 2 | Request quote | |||
| 18 | PLATE, SAFETY {APPROACH}SN: B10314-UP | 2 | Request quote | |||
| 18 | PLATE, SAFETY {APPROACH}SN: B10001-B10313 | 2 | Request quote | |||
| 19 | PLATE, SAFETY {ELECTRIC SHOCK}SN: B10314-UP | 2 | Request quote | |||
| 19 | PLATE, SAFETY {ELECTRIC SHOCK}SN: B10001-B10313 | 2 | Request quote | |||
| 20 | PLATE, SAFETY {RADIATOR}SN: B10491-UP | 1 | Request quote | |||
| 20 | PLATE, SAFETY {RADIATOR}SN: B10314-B10490 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 20 | PLATE, SAFETY {RADIATOR}SN: B10001-B10313 | 1 | Request quote | |||
| 21 | PLATE, SAFETY {ACCUMULATOR}SN: B10314-UP | 3 | Request quote | |||
| 21 | PLATE, SAFETY {ACCUMULATOR}SN: B10001-B10313 | 3 | Request quote | |||
| 22 | TAGSN: B10314-UP | 1 | Request quote | |||
| 22 | TAGSN: B10001-B10313 | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 7 | Description: PLATE, MARK {REMOTE GREASE, REAR AXLE} | QTY: 1 | OPTIONS: SN: B10001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 8 | Description: PLATE, MARK {RADIATOR DRAIN} | QTY: 1 | OPTIONS: SN: B10001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 9 | Description: PLATE, MARK {REMOTE GREASE, FRONT, L.H.} | QTY: 1 | OPTIONS: SN: B10001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 10 | Description: PLATE, MARK {REMOTE GREASE, FRONT, R.H.} | QTY: 1 | OPTIONS: SN: B10001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 11 | Description: PLATE, MARK {REMOTE GREASE, FRONT} | QTY: 1 | OPTIONS: SN: B10001-UP
Using Komatsu WA320-5 Marks And Plates (Portuguese) Serial B10001-UP Parts
Use the Komatsu WA320-5 Marks And Plates (Portuguese) Serial B10001-UP Parts listing to identify aftermarket replacement parts within the marks and plates section. This wheel loader application is listed for machine serial B10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 28 listed part occurrences, including plate {wa320 (l.h.)} (reference 419-93-B4140), plate {wa320 (r.h.)} (reference 419-93-B4150) and plate (reference 419-93-22160). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For identification and caution plates, compare the precise plate description and listed application. Do not substitute a plate solely because its shape or mounting position looks similar.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
