Komatsu WA320-5 Marks And Plates (Turkish) (For Eu) Parts
Komatsu WA320-5 marks and plates (turkish) (for eu) parts for machine serial 60001-UP (OVERSEAS VERSION). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Marks And Plates / Marks And Plates (Turkish) (For Eu).
Checking current purchase options...

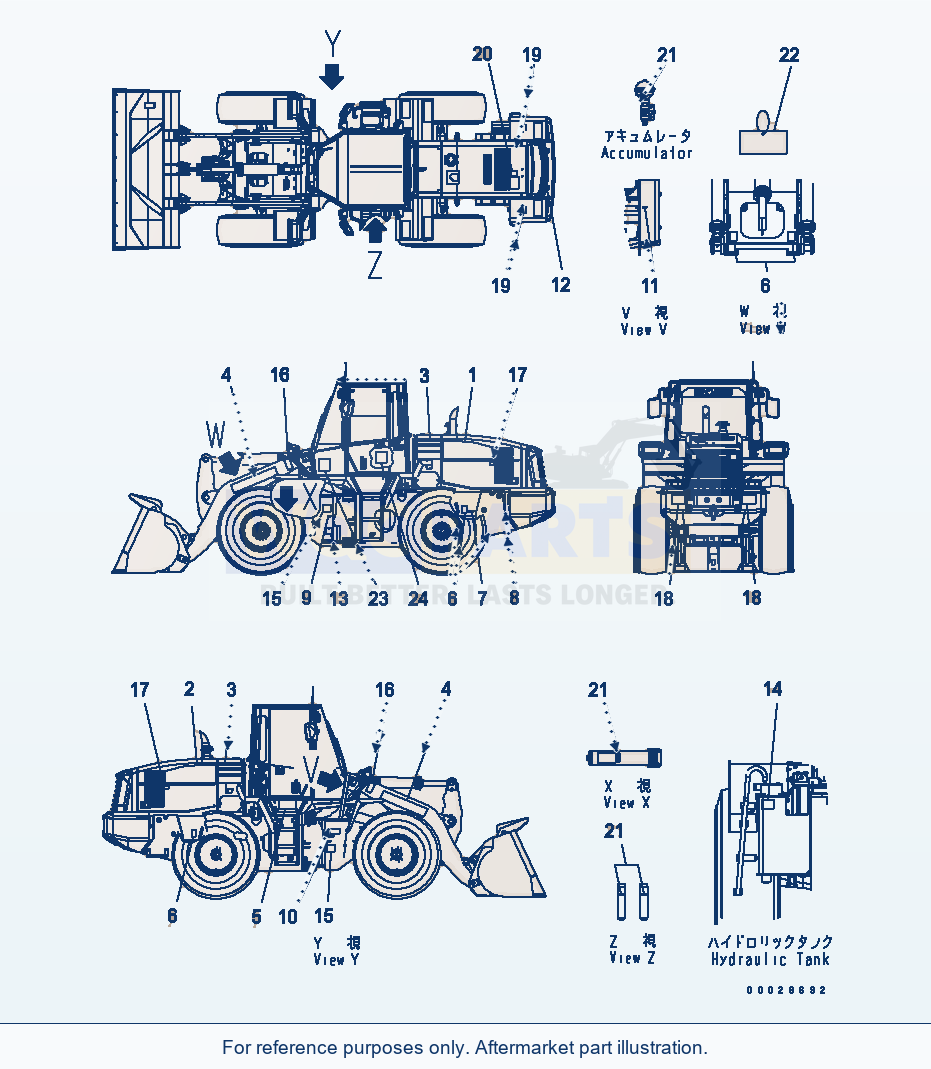

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 22 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PLATE,WA320 (L.H.)SN: 60001-UP | 1 | Request quote | |||
| 2 | PLATE,WA320 (R.H.)SN: 60001-UP | 1 | Request quote | |||
| 3 | PLATESN: 60001-UP | 2 | Request quote | |||
| 4 | PLATE, MARK,KOMATSUSN: 60001-UP | 2 | Request quote | |||
| 5 | OIL CHARTSN: 62025-UP | 1 | Request quote | |||
| 5 | OIL CHARTSN: 60001-62024 | 1 | Request quote | |||
| 6 | PLATE, MARK,LIFTING EYESN: 60652-UP | 4 | Request quote | |||
| 6 | PLATE, MARK,LIFTING EYESN: 60001-60651 | 4 | Request quote | |||
| 12 | PLATE, MARKSN: 60001-UP | 1 | Request quote | |||
| 12 | PLATE, CAUTION,FUELSN: 60001-UP | 1 | Request quote | |||
| 13 | PLATE, SAFETY,FRAME LOCKSN: 60001-UP | 1 | Request quote | |||
| 14 | PLATE, SAFETY,HYDRAULIC TANK CAPSN: 60001-UP | 1 | Request quote | |||
| 15 | PLATE, SAFETYSN: 60001-UP | 2 | Request quote | |||
| 16 | PLATE, SAFETY,KEEP OUTSN: 60001-UP | 2 | Request quote | |||
| 17 | PLATE, SAFETY,FANSN: 60001-UP | 2 | Request quote | |||
| 18 | PLATE, SAFETY,APPROACHSN: 60001-UP | 2 | Request quote | |||
| 19 | PLATE, SAFETY,ELECTRIC SHOCKSN: 60001-UP | 2 | Request quote | |||
| 20 | PLATE, SAFETY,RADIATORSN: 60001-UP | 1 | Request quote | |||
| 21 | PLATE, SAFETY,ACCUMULATORSN: 60001-UP | 3 | Request quote | |||
| 22 | TAGSN: 60001-UP | 1 | Request quote | |||
| 23 | PLATE,EU DYNAMIC NOISE PLATESN: 60001-UP | 1 | Request quote | |||
| 24 | PLATE,EU DYNAMIC NOISE PLATESN: 60001-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 7 | Description: PLATE, MARK,REMOTE GREASE, REAR AXLE | QTY: 1 | OPTIONS: SN: 60001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 8 | Description: PLATE, MARK,RADIATOR DRAIN | QTY: 1 | OPTIONS: SN: 60001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 9 | Description: PLATE, MARK,REMOTE GREASE, FRONT, L.H. | QTY: 1 | OPTIONS: SN: 60001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 10 | Description: PLATE, MARK,REMOTE GREASE, FRONT, R.H. | QTY: 1 | OPTIONS: SN: 60001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 11 | Description: PLATE, MARK,REMOTE GREASE, FRONT | QTY: 1 | OPTIONS: SN: 60001-UP
Using Komatsu WA320-5 Marks And Plates (Turkish) (For Eu) Parts
Use the Komatsu WA320-5 Marks And Plates (Turkish) (For Eu) Parts listing to identify aftermarket replacement parts within the marks and plates section. This wheel loader application is listed for machine serial 60001-UP (OVERSEAS VERSION); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 22 listed part occurrences, including plate,wa320 (l.h.) (reference 419-93-22143), plate,wa320 (r.h.) (reference 419-93-22153) and plate (reference 419-93-22160). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For identification and caution plates, compare the precise plate description and listed application. Do not substitute a plate solely because its shape or mounting position looks similar.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
