Komatsu WA320-5 Wheel Loader Heater Piping (For Eu) Parts
Komatsu WA320-5 heater piping (for eu) parts for machine serial 60001-UP (OVERSEAS VERSION). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Operator'S Compartment And Control System / Heater Piping (For Eu).
Checking current purchase options...

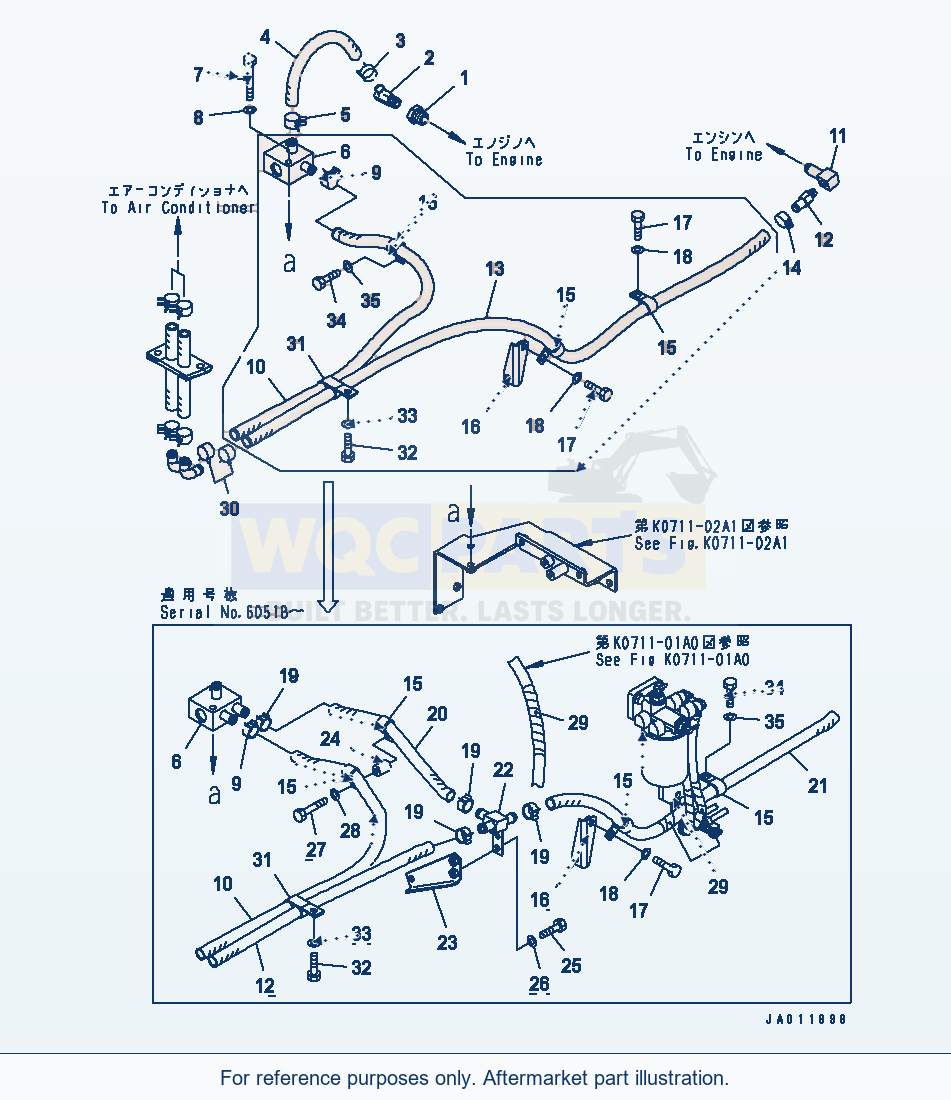

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 42 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | ADAPTERSN: 60001-UP | 1 | Request quote | |||
| 2 | ELBOWSN: 61726-UP | 1 | Request quote | |||
| 2 | JOINTSN: 60001-61725 | 1 | Request quote | |||
| 3 | CLAMPSN: 60001-UP | 1 | View product ↗ | |||
| 4 | HOSESN: 60001-UP | 1 | Request quote | |||
| 5 | CLAMPSN: 60001-UP | 1 | View product ↗ | |||
| 6 | BLOCKSN: 61405-UP | 1 | Request quote | |||
| 6 | BLOCKSN: 60518-61404 | 1 | Request quote | |||
| 6 | BLOCKSN: 60001-60517 | 1 | Request quote | |||
| 7 | BOLTSN: 60001-UP | 2 | Request quote | |||
| 8 | WASHERSN: 60001-UP | 2 | View product ↗ | |||
| 9 | CLAMPSN: 60001-UP | 1 | View product ↗ | |||
| 10 | HOSESN: 60001-UP | 1 | Request quote | |||
| 11 | ELBOWSN: 62138-UP | 1 | Request quote | |||
| 12 | CONNECTORSN: 60001-UP | 1 | Request quote | |||
| 13 | HOSESN: 60518-UP | 1 | Request quote | |||
| 13 | HOSESN: 60001-60517 | 1 | Request quote | |||
| 14 | CLAMPSN: 60001-UP | 1 | View product ↗ | |||
| 15 | CLIPSN: 60518-UP | 4 | Request quote | |||
| 15 | CLIPSN: 60001-60517 | 3 | Request quote | |||
| 16 | BRACKETSN: 60001-UP | 1 | Request quote | |||
| 17 | BOLTSN: 60518-UP | 1 | Request quote | |||
| 17 | BOLTSN: 60001-60517 | 2 | Request quote | |||
| 18 | WASHERSN: 60518-UP | 1 | View product ↗ | |||
| 18 | WASHERSN: 60001-60517 | 2 | View product ↗ | |||
| 19 | CLAMPSN: 60518-UP | 4 | View product ↗ | |||
| 20 | HOSESN: 60518-UP | 1 | Request quote | |||
| 21 | HOSESN: 60518-UP | 1 | Request quote | |||
| 22 | TUBESN: 60518-UP | 1 | Request quote | |||
| 23 | BRACKETSN: 60518-UP | 1 | Request quote | |||
| 24 | SPACERSN: 60518-UP | 1 | Request quote | |||
| 25 | BOLTSN: 60518-UP | 2 | Request quote | |||
| 26 | WASHERSN: 60518-UP | 2 | View product ↗ | |||
| 27 | BOLTSN: 60518-UP | 1 | Request quote | |||
| 28 | WASHERSN: 60518-UP | 1 | View product ↗ | |||
| 29 | SPIRAL TUBESN: 60518-UP | 4 | Request quote | |||
| 30 | CLAMPSN: 60001-UP | 2 | View product ↗ | |||
| 31 | CLIPSN: 60001-UP | 1 | Request quote | |||
| 32 | BOLTSN: 60001-UP | 1 | Request quote | |||
| 33 | WASHERSN: 60001-UP | 1 | View product ↗ | |||
| 34 | BOLTSN: 60001-UP | 1 | Request quote | |||
| 35 | WASHERSN: 60001-UP | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA320-5 Wheel Loader Heater Piping (For Eu) Parts
Use the Komatsu WA320-5 Wheel Loader Heater Piping (For Eu) Parts listing to identify aftermarket replacement parts within the operator's compartment and control system section. This wheel loader application is listed for machine serial 60001-UP (OVERSEAS VERSION); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 42 listed part occurrences, including adapter (reference 124-Z11-1530), elbow (reference 567-07-15222) and joint (reference 567-07-15221). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For operator-compartment and control parts, compare the cab arrangement and equipment options identified on the assembly page. Retain any handedness and connection details when selecting a part or requesting assistance.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
