Komatsu WA320-5 Wheel Loader Rops Cab (Door R.H.) (#B10146-) Parts
Komatsu WA320-5 rops cab (door r.h.) (#b10146-) parts for machine serial B10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Operator’S Compartment And Control System / Rops Cab (Door R.H.) (#B10146-).
Checking current purchase options...

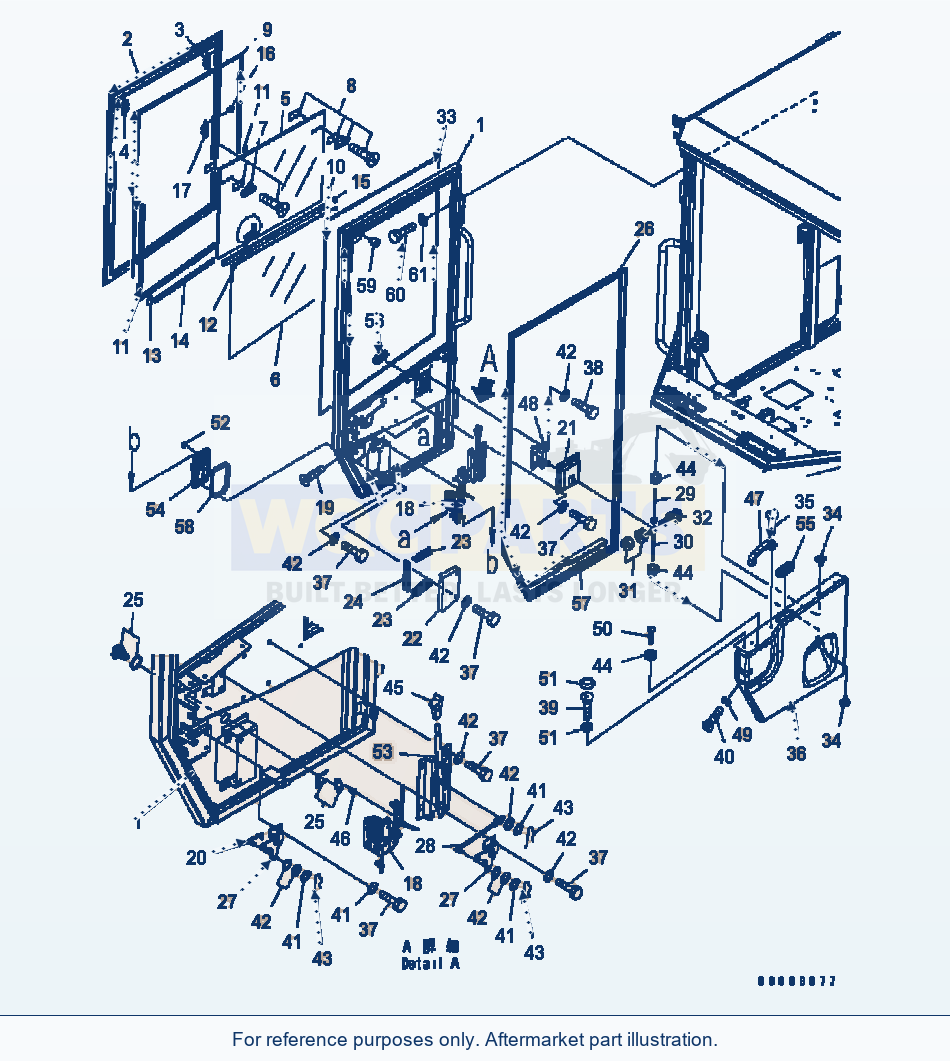

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 66 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | ROPS CAB ASS'YSN: B10130-UP | 1 | Request quote | |||
| 1 | DOOR ASS'YSN: B10146-UP | 1 | Request quote | |||
| 1 | HINGE (WELDED)SN: B10001-UP | 2 | Request quote | |||
| 1 | SASH ASS'YSN: B10001-UP | 1 | Request quote | |||
| 2 | FRAMESN: B10146-UP | 1 | Request quote | |||
| 3 | CATCHSN: B10146-UP | 4 | Request quote | |||
| 4 | CATCHSN: B10146-UP | 1 | Request quote | |||
| 5 | GLASSSN: B10146-UP | 1 | Request quote | |||
| 6 | GLASSSN: B10146-UP | 1 | Request quote | |||
| 7 | LOCK ASS'YSN: B10001-UP | 1 | Request quote | |||
| 8 | LOCK ASS'YSN: B10001-UP | 1 | Request quote | |||
| 9 | CHANNELSN: B10146-UP | 1 | Request quote | |||
| 10 | CHANNELSN: B10146-UP | 1 | Request quote | |||
| 11 | RUBBERSN: B10146-UP | 1 | Request quote | |||
| 12 | RUBBERSN: B10146-UP | 1 | Request quote | |||
| 13 | RUBBERSN: B10146-UP | 1 | Request quote | |||
| 14 | RUBBERSN: B10146-UP | 1 | Request quote | |||
| 15 | RUBBERSN: B10146-UP | 2 | Request quote | |||
| 16 | RIVETSN: B10146-UP | 8 | Request quote | |||
| 17 | CATCHSN: B10146-UP | 4 | Request quote | |||
| 18 | LOCKSN: B10240-UP | 1 | Request quote | |||
| 18 | LOCKSN: B10001-B10239 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 19 | SCREWSN: B10001-UP | 3 | Request quote | |||
| 20 | RODSN: B10001-UP | 1 | Request quote | |||
| 21 | COVERSN: B10001-UP | 1 | Request quote | |||
| 22 | COVERSN: B10606-UP | 1 | Request quote | |||
| 22 | COVERSN: B10001-B10605 | 1 | Request quote | |||
| 23 | SEALSN: B10001-UP | 2 | Request quote | |||
| 24 | SEALSN: B10001-UP | 1 | Request quote | |||
| 25 | LOCK ASS'YSN: B10001-UP | 1 | Request quote | |||
| 26 | SEALSN: B10001-UP | 1 | Request quote | |||
| 27 | LINK ASS'YSN: B10001-UP | 2 | Request quote | |||
| 28 | RODSN: B10001-UP | 1 | Request quote | |||
| 29 | RODSN: B10001-UP | 1 | Request quote | |||
| 30 | RODSN: B10001-UP | 1 | Request quote | |||
| 31 | NUTSN: B10001-UP | 2 | Request quote | |||
| 32 | SCREWSN: B10001-UP | 1 | Request quote | |||
| 33 | DAMSN: B10001-UP | 1 | Request quote | |||
| 34 | KNOBSN: B10001-UP | 2 | Request quote | |||
| 35 | SCREWSN: B10001-UP | 2 | Request quote | |||
| 36 | COVERSN: B10001-UP | 1 | Request quote | |||
| 37 | BOLTSN: B10001-UP | 14 | View product ↗ | |||
| 38 | BOLTSN: B10001-UP | 4 | Request quote | |||
| 39 | SCREWSN: B10001-UP | 2 | Request quote | |||
| 40 | SCREWSN: B10001-UP | 5 | Request quote | |||
| 41 | WASHERSN: B10001-UP | 3 | View product ↗ | |||
| 42 | WASHERSN: B10001-UP | 23 | View product ↗ | |||
| 43 | PIN, SNAPSN: B10001-UP | 3 | Request quote | |||
| 44 | GROMMETSN: B10001-UP | 3 | View product ↗ | |||
| 45 | KNOBSN: B10001-UP | 1 | Request quote | |||
| 46 | SNAPSN: B10001-UP | 1 | Request quote | |||
| 47 | HANDLESN: B10001-UP | 1 | Request quote | |||
| 48 | LOCKSN: B10001-UP | 1 | Request quote | |||
| 49 | WASHERSN: B10001-UP | 5 | Request quote | |||
| 50 | KNOBSN: B10001-UP | 1 | Request quote | |||
| 51 | CAP ASS'YSN: B10001-UP | 2 | Request quote | |||
| 52 | CAPSN: B10001-UP | 1 | Request quote | |||
| 53 | HANDLESN: B10001-UP | 1 | Request quote | |||
| 54 | HANDLESN: B10146-UP | 1 | Request quote | |||
| 55 | GROMMETSN: B10001-UP | 1 | Request quote | |||
| 56 | GROMMETSN: B10001-UP | 1 | Request quote | |||
| 57 | SHEETSN: B10001-UP | 1 | Request quote | |||
| 58 | SEALSN: B10001-UP | 1 | Request quote | |||
| 59 | STOPPERSN: B10001-UP | 1 | Request quote | |||
| 60 | BOLTSN: B10001-UP | 6 | Request quote | |||
| 61 | WASHERSN: B10001-UP | 6 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-51A5 TO K0210-58A5.
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: DOOR | QTY: 1 | OPTIONS: SN: B10001-UP
