Komatsu WA320-5L Wheel Loader Connecting Rod And Piston Parts
Komatsu WA320-5L connecting rod and piston parts for machine serial A32001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine / Connecting Rod And Piston.
Checking current purchase options...

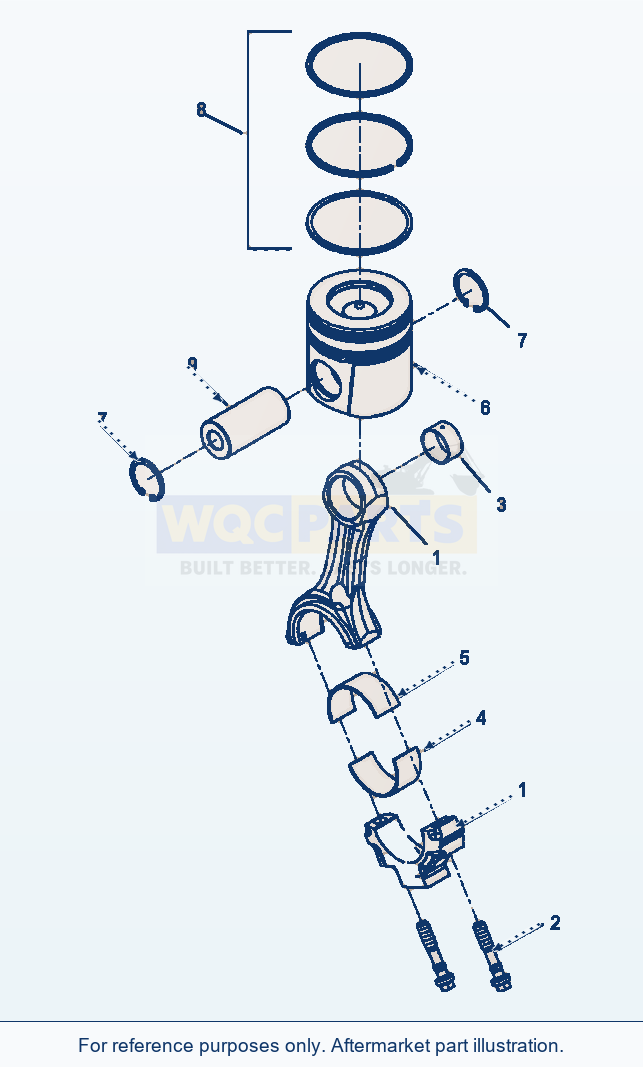

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 27 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | ENGINE ROD ASSEMBLY | 6 | View product ↗ | |||
| 1 | ROD, ENGINE CONNECTING | 1 | Request quote | |||
| 2 | BOLT, CONNECTING ROD CAP | 2 | Request quote | |||
| 3 | BUSHING | 1 | View product ↗ | |||
| 4 | BEARING, CONNECTING ROD LOWER (STD) | 6 | Request quote | |||
| 5 | BEARING, CONNECTING ROD UPPER (STD) | 6 | Request quote | |||
| 6 | KIT, ENGINE PISTON (STD) | 1 | View product ↗ | |||
| 7 | PISTON, ENGINE | 1 | View product ↗ | |||
| 7 | RING, RETAINING | 12 | View product ↗ | |||
| 8 | SET, PISTON RING | 1 | View product ↗ | |||
| 9 | PIN, PISTON | 6 | View product ↗ | |||
| 4 | BEARING, CONNECTING ROD (0.25 MM OS) | - | Request quote | |||
| 4 | BEARING, CONNECTING ROD (0.50 MM OS) | - | Request quote | |||
| 4 | BEARING, CONNECTING ROD (0.75 MM OS) | - | Request quote | |||
| 4 | BEARING, CONNECTING ROD (1.00 MM OS) | - | Request quote | |||
| 5 | BEARING, CONNECTING ROD (0.25 MM OS) | - | View product ↗ | |||
| 5 | BEARING, CONNECTING ROD (0.50 MM OS) | - | View product ↗ | |||
| 5 | BEARING, CONNECTING ROD (0.75 MM OS) | - | View product ↗ | |||
| 5 | BEARING, CONNECTING ROD (1.00 MM OS) | - | View product ↗ | |||
| 20 | KIT, ENGINE PISTON (0.50 MM OS) | - | Request quote | |||
| 6 | PISTON, ENGINE | 1 | Request quote | |||
| 7 | RING, RETAINING | 2 | View product ↗ | |||
| 8 | SET, PISTON RING | 1 | View product ↗ | |||
| 24 | KIT, ENGINE PISTON (1.00 MM OS) | - | Request quote | |||
| 6 | PISTON, ENGINE | 1 | Request quote | |||
| 7 | RING, RETAINING | 2 | View product ↗ | |||
| 8 | SET, PISTON RING | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
SERVICE PARTS
Using Komatsu WA320-5L Wheel Loader Connecting Rod And Piston Parts
Use the Komatsu WA320-5L Wheel Loader Connecting Rod And Piston Parts listing to identify aftermarket replacement parts within the engine section. This wheel loader application is listed for machine serial A32001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 27 listed part occurrences, including engine rod assembly (reference 6737-32-3121), rod, engine connecting (reference NSS) and bushing (reference 6732-31-3132). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
