Komatsu WA320-5L Wheel Loader Fuel Pump Coupling Parts
Komatsu WA320-5L fuel pump coupling parts for machine serial A32001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine / Fuel Pump Coupling.
Checking current purchase options...

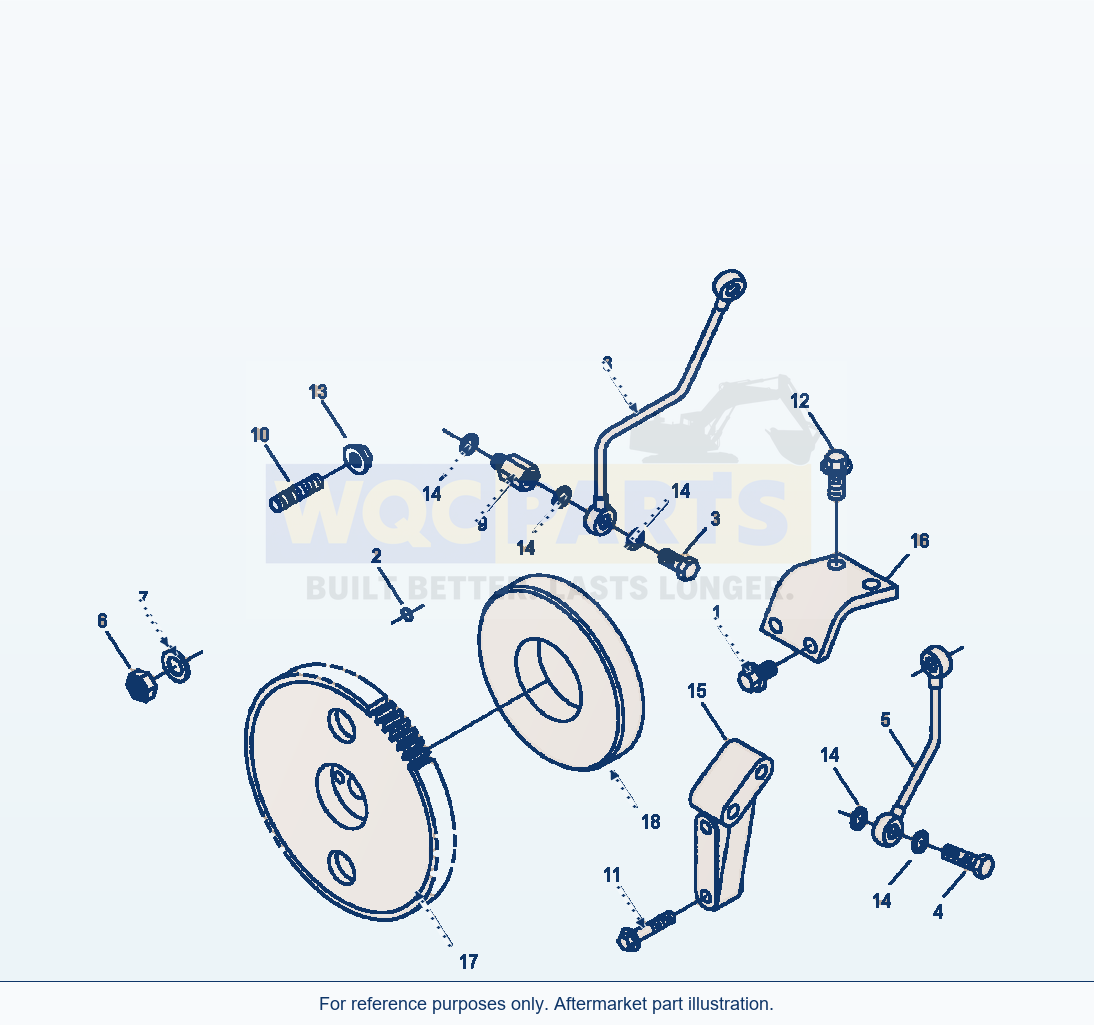

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 19 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | BOLT (M10-1.50X16) | 2 | Request quote | |||
| 2 | SEAL, O-RING (M10-1.00) | 1 | View product ↗ | |||
| 3 | SCREW, BANJO CONNECTOR (M10-1.25X20) | 1 | View product ↗ | |||
| 4 | SCREW, BANJO CONNECTOR | 1 | Request quote | |||
| 5 | TUBE, LUBRICATING OIL SUPPLY | 1 | Request quote | |||
| 6 | NUT (M14-1.50 THD) | 1 | Request quote | |||
| 7 | WASHER, PLAIN (14 MM) | 1 | Request quote | |||
| 8 | TUBE, LUBRICATING OIL SUPPLY | 1 | Request quote | |||
| 9 | CONNECTOR, FEMALE | 1 | Request quote | |||
| 10 | STUD (M10-1.50 (BOTH ENDS)X42) | 4 | Request quote | |||
| 11 | BOLT (M8-1.25X40) | 2 | Request quote | |||
| 12 | BOLT (M10-1.50X25) | 2 | Request quote | |||
| 13 | NUT (M10-1.50) | 4 | Request quote | |||
| 14 | WASHER, SEALING | 5 | View product ↗ | |||
| 15 | BRACE, FUEL PUMP | 1 | Request quote | |||
| 16 | BRACE, FUEL PUMP | 1 | Request quote | |||
| 16 | GEAR, FUEL PUMP | 1 | Request quote | |||
| 17 | GEAR, FUEL PUMP | 1 | Request quote | |||
| 18 | DAMPER, VIBRATION | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA320-5L Wheel Loader Fuel Pump Coupling Parts
Use the Komatsu WA320-5L Wheel Loader Fuel Pump Coupling Parts listing to identify aftermarket replacement parts within the engine section. This wheel loader application is listed for machine serial A32001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 19 listed part occurrences, including tube, lubricating oil supply (reference 6735-71-5430), tube, lubricating oil supply (reference 6735-71-5411) and connector, female (reference 6732-71-5450). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
