Komatsu WA320-5L Wheel Loader Marks And Plates French Parts
Komatsu WA320-5L marks and plates french parts for machine serial A32001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Marks And Plates / Marks And Plates French.
Checking current purchase options...

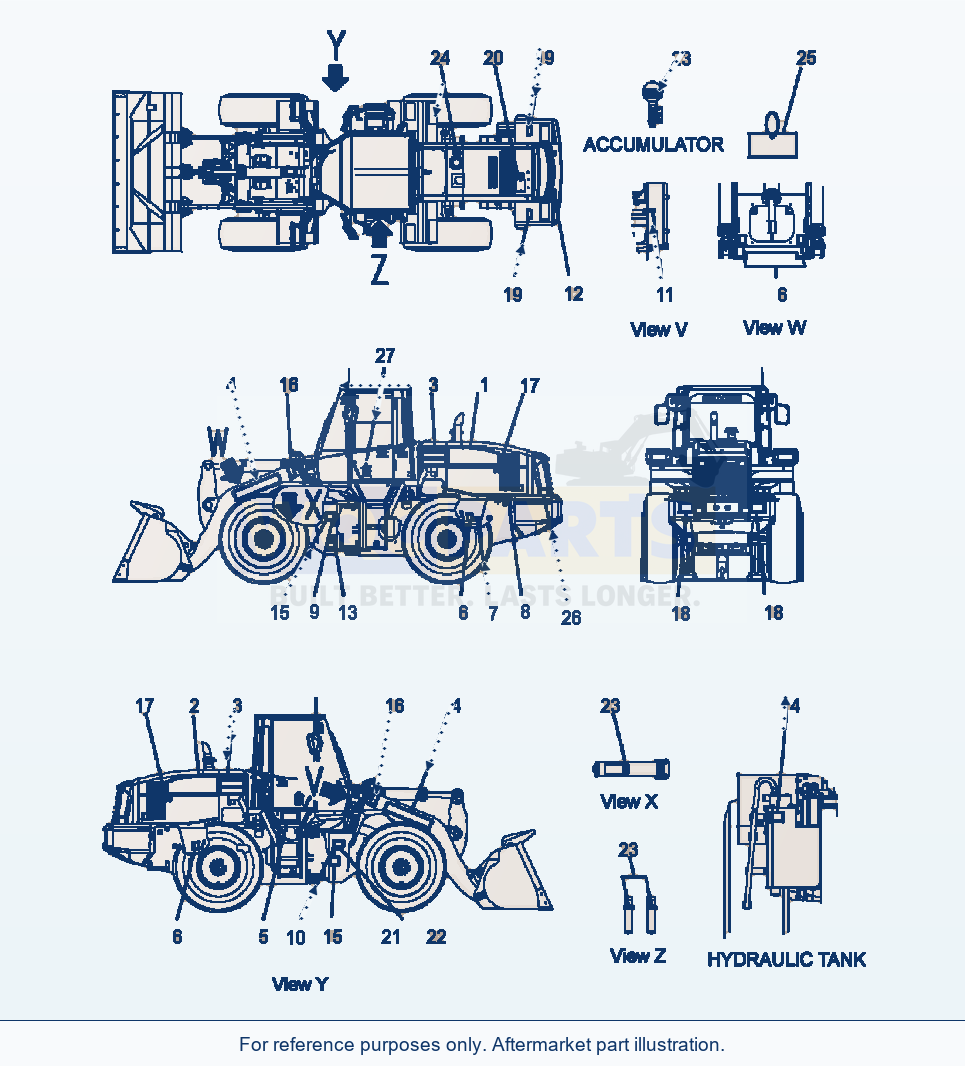

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 28 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PLATE, L.H.SN: A32001--UP | 1 | Request quote | |||
| 2 | PLATE, R.H.SN: A32001--UP | 1 | Request quote | |||
| 3 | PLATE (PLAQUE STRIPE)SN: A32001--UP | 2 | Request quote | |||
| 4 | PLATE, MARK (KOMATSU)SN: A32001--UP | 2 | Request quote | |||
| 5 | DECAL, CHARTE HUILESN: A32001--UP | 1 | Request quote | |||
| 6 | PLATE, MARK (SOULEVER)SN: A32001--UP | 4 | Request quote | |||
| 6 | DECAL, GRAISSAGESN: A32001--UP | 1 | Request quote | |||
| 7 | PLATE, MARK (REMOTE GREASE, REAR AXLE)SN: A32001--UP | 1 | Request quote | |||
| 8 | PLATE, MARK (VIDANGE DU RADIATEUR)SN: A32001--UP | 1 | Request quote | |||
| 9 | PLATE, MARK (REMOTE GREASE, FRONT, L.H.)SN: A32001--UP | 1 | Request quote | |||
| 10 | PLATE, MARK (REMOTE GREASE, FRONT, R.H.)SN: A32001--UP | 1 | Request quote | |||
| 11 | PLATE, MARK (REMOTE GREASE, FRONT)SN: A32001--UP | 1 | Request quote | |||
| 12 | DECAL, CAUTION (DIESELSN: A32001--UP | 1 | Request quote | |||
| 13 | PLATE, SAFETY (BARRURE)SN: A32001--UP | 1 | Request quote | |||
| 14 | PLATE, SAFETY (HYDRAULIC TANK CAP)SN: A32001--UP | 1 | Request quote | |||
| 15 | PLATE, SAFETY (ARTICULATION)SN: A32001--UP | 2 | Request quote | |||
| 16 | PLATE, SAFETY (ATTENTION)SN: A32001--UP | 2 | Request quote | |||
| 17 | PLATE, SAFETY (VENTILATEUR ROTATION)SN: A32001--UP | 2 | Request quote | |||
| 18 | PLATE, SAFETY (APPROACH)SN: A32001--UP | 2 | Request quote | |||
| 19 | DECAL, SAFETY (ELECTRIC SHOCK - ELEC. BATTERY)SN: A32001--UP | 2 | Request quote | |||
| 20 | DECAL, SAFETY (RADIATOR - TEMP EAU)SN: A32001--UP | 1 | Request quote | |||
| 21 | PLATE, MODELSN: A32001--UP | 1 | Request quote | |||
| 22 | SCREWSN: A32001--UP | 4 | Request quote | |||
| 23 | DECAL, SAFETY (ACCUMULATOR)SN: A32001--UP | 3 | Request quote | |||
| 24 | DECAL, WARNING (ETHER))SN: A32001--UP | 1 | Request quote | |||
| 25 | TAG (MAINTENANCE)SN: A32001--UP | 1 | Request quote | |||
| 26 | PLATE (SECURITE)SN: A32001--UP | 4 | Request quote | |||
| 27 | DECAL, CAB DOOR (KOMATSU)SN: A32001--UP | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA320-5L Wheel Loader Marks And Plates French Parts
Use the Komatsu WA320-5L Wheel Loader Marks And Plates French Parts listing to identify aftermarket replacement parts within the marks and plates section. This wheel loader application is listed for machine serial A32001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 28 listed part occurrences, including plate, l.h. (reference 419-93-22143), plate, r.h. (reference 419-93-22153) and plate (plaque stripe) (reference 419-93-22160). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For identification and caution plates, compare the precise plate description and listed application. Do not substitute a plate solely because its shape or mounting position looks similar.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
