Komatsu WA320-5L Rear Axle Limited Slip Differential Parts

Komatsu WA320-5L rear axle limited slip differential parts for machine serial A32001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: Power Train And Final Drive / Rear Axle Limited Slip Differential.

WA320-5LMachine serial A32001-UP43 part occurrences

Checking current purchase options...

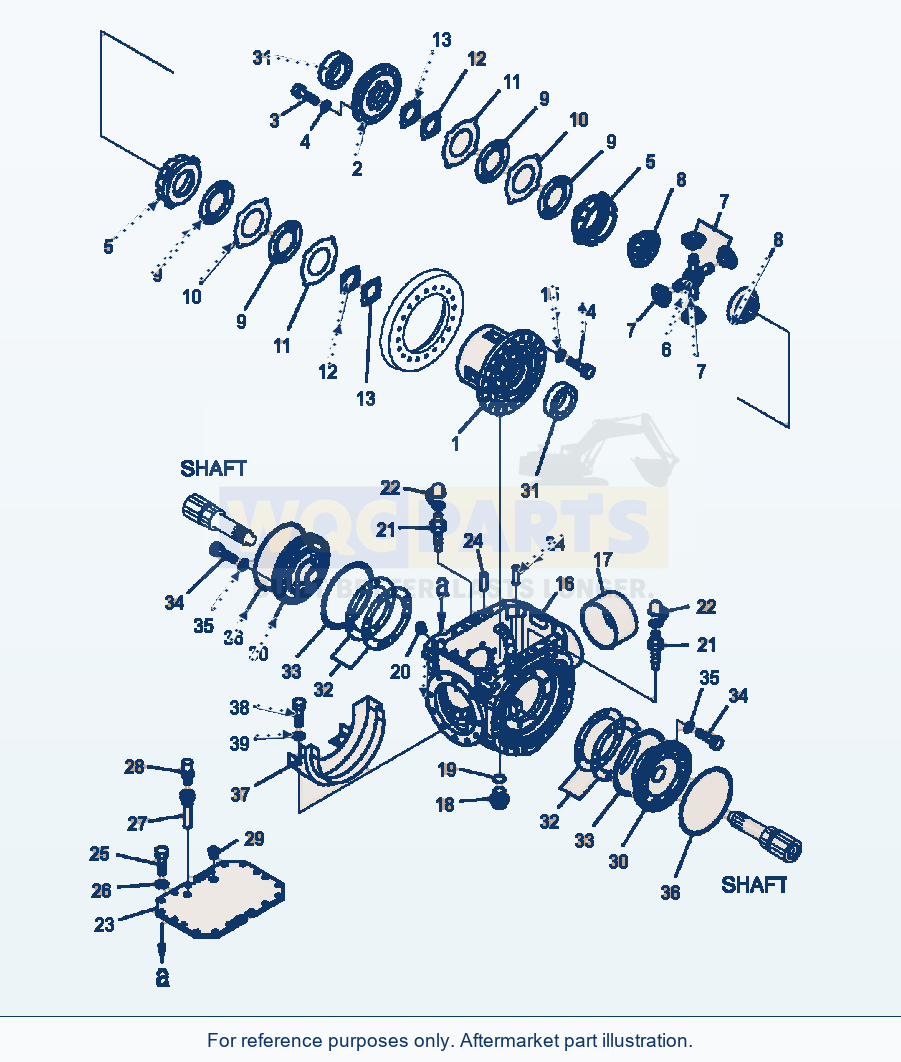

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 43 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
2	DIFFERENTIAL ASSEMBLYSN: A32001--UP	1	Request quote
1	CASESN: A32001--UP	1	Request quote
2	COVERSN: A32001--UP	1	Request quote
3	BOLTSN: A32001--UP	12	Request quote
4	WASHERSN: A32001--UP	12	View product ↗
5	RING, PRESSURESN: A32001--UP	2	Request quote
6	SHAFTSN: A32001--UP	1	Request quote
7	PINIONSN: A32001--UP	4	Request quote
8	GEARSN: A32001--UP	2	Request quote
9	DISCSN: A32001--UP	4	Request quote
10	PLATESN: A32001--UP	4	Request quote
11	PLATESN: A32001--UP	4	Request quote
12	WASHERSN: A32001--UP	2	Request quote
13	WASHERSN: A32001--UP	2	Request quote
14	BOLTSN: A32001--UP	20	Request quote
15	WASHERSN: A32001--UP	20	View product ↗
16	HOUSINGSN: A32001--UP	1	Request quote
17	SLEEVESN: A32001--UP	1	Request quote
18	PLUG, DRAINSN: A32001--UP	1	View product ↗
19	O-RINGSN: A32001--UP	1	Request quote
20	PLUGSN: A32001--UP	2	View product ↗
21	BLEEDERSN: A32001--UP	2	Request quote
22	CAPSN: A32001--UP	2	View product ↗
23	COVERSN: A32001--UP	1	Request quote
24	PIN, DOWELSN: A32001--UP	2	View product ↗
25	BOLTSN: A32001--UP	20	Request quote
26	WASHERSN: A32001--UP	20	View product ↗
27	CONNECTORSN: A32001--UP	1	Request quote
28	BREATHERSN: A32001--UP	1	View product ↗
29	PLUGSN: A32001--UP	1	Request quote
30	CARRIERSN: A32001--UP	2	Request quote
31	BEARINGSN: A32001--UP	2	Request quote
32	SHIM, 0.05 MMSN: A32001--UP	6	Request quote
N/I	SHIM, 0.20 MMSN: A32001--UP	3	Request quote
N/I	SHIM, 0.30 MMSN: A32001--UP	3	Request quote
N/I	SHIM, 0.80 MMSN: A32001--UP	2	Request quote
33	RINGSN: A32001--UP	2	View product ↗
34	BOLTSN: A32001--UP	16	Request quote
35	WASHERSN: A32001--UP	16	View product ↗
36	SEALSN: A32001--UP	2	View product ↗
37	COVERSN: A32001--UP	1	Request quote
38	BOLTSN: A32001--UP	4	Request quote
39	WASHERSN: A32001--UP	4	View product ↗

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.

Assembly notes

AXLE ASSEMBLY, REAR (LIMITED SLIP DIFFERENTIAL) (SEE FIG. F4500-51A0)

DIFFERENTIAL ASSEMBLY (SEE FIG. F4500-53A0)

Catalog sitemap

Using Komatsu WA320-5L Rear Axle Limited Slip Differential Parts

Use the Komatsu WA320-5L Rear Axle Limited Slip Differential Parts listing to identify aftermarket replacement parts within the power train and final drive section. This wheel loader application is listed for machine serial A32001-UP; the diagram and parts table retain the selected configuration and its source notes.

The parts table contains 43 listed part occurrences, including differential assembly (reference 419-22-27103), case (reference 419-22-27111) and cover (reference 419-22-27121). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.

Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.

Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
